Low Price Flat Bed Semi-trailer
low price flat bed semi-trailer
technical information for flat bed semi-trailer
Outer Height |
1600 |
Cargo Car Length |
|
Cargo Car Width |
|
Cargo Car Height |
600 |
Number of Leaf Spring |
-/-/-,-/4/4,-/8/8,-/10/10 |
Number of Axle |
2 |
Wheel Base |
4500+1310 |
Front Gauge |
|
Track Rear |
1840/1840 |
Number of Tyres |
8 |
Tyre Specifications |
11.00R20 14PR,11R22.5 14PR,12R22.5 14PR |
Total Mass |
35000 |
Equipment Weight |
3200 |
Rated Weight |
31800 |
The Highest Speed of a Motor Vehicle |
|
Axle Load |
-/18000 (2axles dual wheel) |
Payload Utilization Factor |
|
Semi-trailer Saddle |
10070 |
Identification Code |
LMN9ERJ2 |
|
|
Reflecting Marking Enterprise |
Changzhou Huawei Reflecting Materials Co., Ltd., 3M China Co., Ltd. |
Reflecting Marking Model |
TM1200-1,983 |
Reflecting Marking Trademark |
Tongming, 3M |
Antilock System |
Yes |
Others |
The semi-trailer installs side and rear reflecting marks. It is only used for transporting 20’ container or tank container. The total height of the frame of the traction pin is 90mm. The fender and few leaf springs are optional to install. ABS controller model is HNABS4S/4M. The manufacturer of ABS controller is Liangshan Haina Electronic Technology Development Co., Ltd. The side protective device is made of Q235 and the connecting way is welding. The rear protection device material is Q235 and the connecting way is welding. The rear protection sectional dimension: H: 140mm,W: 60mm; terrain clearance: 530mm. |
||

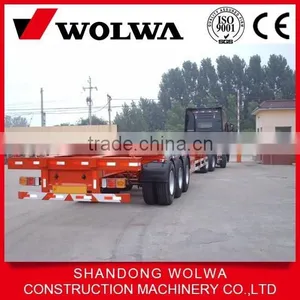

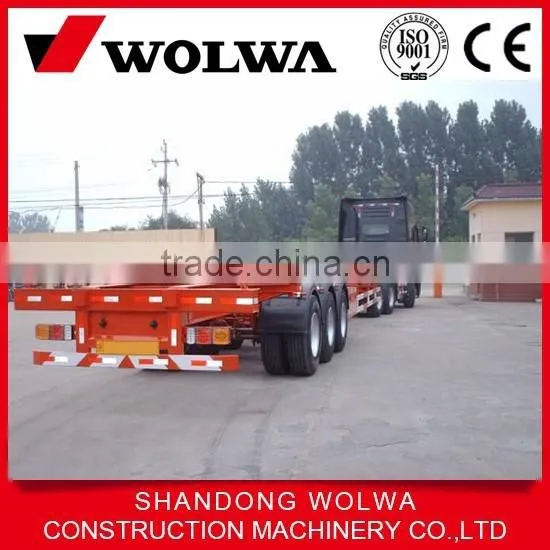

Photo for low price flat bed semi trailer
