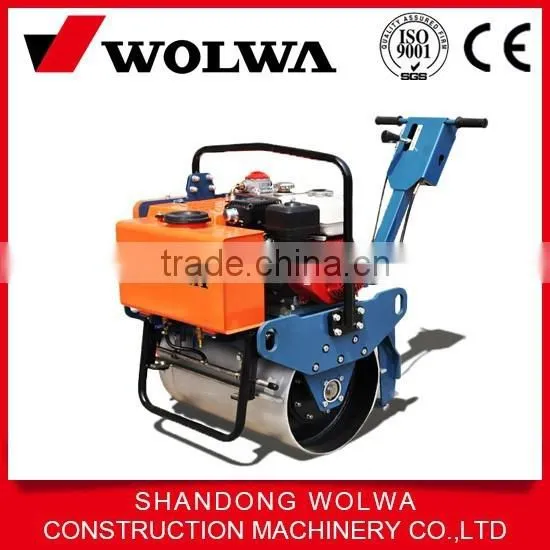

300kgs Small Hydraulic Vibrating Road Roller Compactor

Name: 300kgs Small Hydraulic Vibrating Road Roller Compactor
Brand: WOLWA
SKU: 140740780
Availability: InStock

Shandong Wolwa Construction Machinery Co., Ltd.

US$ 500 - 1,000 MOQ: 2 Sets

Key Specifications

Condition:

New

Type:

Single Drum Roller

Travel Speed:

0-4km/h

Payment & Shipping

Payment Methods:

Port of Shipment:

qingdao

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Single Drum Roller

Travel Speed 0-4km/h

Grade Ability 25%

Place of Origin Shandong, China

Brand Name WOLWA

Model Number GNYL11C

Power(W) 6hp

Dimension(L*W*H) 1050x900x1200mm

Weight 298kg

Certification iso and ce

After-sales Service Provided Engineers available to service machinery overseas

Product Description

Specification

ERFORMANCE PARAMETER
Type	GNYL11C
Speed	0.6km/h, 1.2km/h
Climbing capacity in theory	20%
Compaction
Static load	45N/cm
Nominal amplitude	0.6mm
Vibration frequency	70Hz
Exciting force	12KN
Water tank volume	15L
Walking	hand operating
Drive	Hydraulic pump and motor
Vibration	Mechanical drive, automatic centrifugal clutch
Engine
Model	170F
Type	Diesel engine, air cooled, 4stroke, vertical type single cylinder
Power	4.0hp/3600rpm
Oil tank volume	2.5L
Lubricant L	0.6L
Fuel consumption	280.2g/kWh
Dimension
Width of steel wheel	560mm
Diameter of steel wheel	400mm
Total length(keep handrail level)	1380mm
Total width	700mm
Total height(keep handrail upright)	1050mm
Packing size	1050x900x1200mm
Weight
Working weight	300kg
