Drive on Operating Diesel or Gasline Road Roller for Sale

Name: Drive on Operating Diesel or Gasline Road Roller for Sale
Brand: WOLWA
SKU: 140740740
Availability: InStock

US$ 10,000 - 15,000 MOQ: 2 Sets

Key Specifications

Condition:

New

Type:

Double Drum Roller

Travel Speed:

0-4km/h

Shandong Wolwa Construction Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

qingdao

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Double Drum Roller

Travel Speed 0-4km/h

Grade Ability 25%

Place of Origin Shandong, China

Brand Name WOLWA

Model Number GNYL42b

Power(W) 13.0hp/3600rpm

Dimension(L*W*H) L 1840mm W 840mm H1820mm

Weight 950kg

Certification iso and ce

After-sales Service Provided Engineers available to service machinery overseas

Product Description

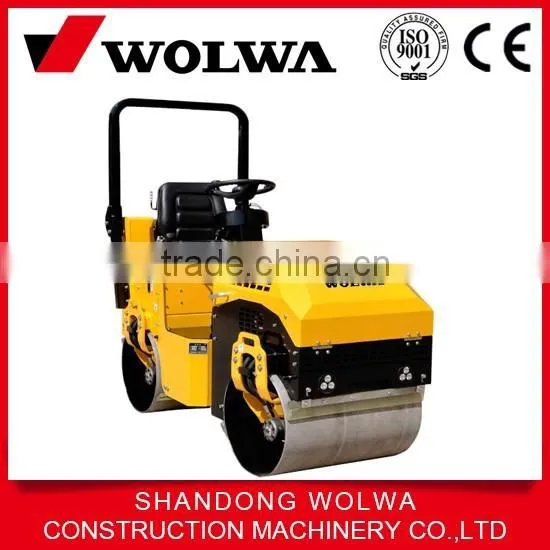

13hp drive on double drum small road roller

Specification:

1.diesel or honda gasoline engine, easy to start.

2.American light load type Variable pump,variable speed walking

3.big capacity plastic water tank

4. Electromagnetic clutch vibration,button easy to operate

5.rear wheel control turning,front wheel control driving.

Walk
Speed	0-4km/h
Turning radius	2000mm
Theoretical gradeability	30%
Compaction
Static linear load front / rear	56/77N/cm 57/77N/cm
Nominal amplitude	0.5mm
Vibration frequency	70Hz
Centrifugal force	20kN
Water tank capacity	67L
Work
Drive	Hydraulic
Vibration	Mechanical transmission, electromagnetic clutch
Steering	hydraulic
Engine
Model	HONDA GX390 186F

Type	Diesel engine or gasoline, air-cooled 4-stroke, vertical, single-cylinder
Power	13.0hp/3600rpm 8.0hp/3600rpm
Lubricant	1.1L 1.65L
Fuel consumption	313G/KW 280g/kWh
Fuel tank capacity	6.5L 15L
Dimensions
Drum width (front and rear)	700mm
Drum diameter (front, rear)	500mm
Tread	1215mm
Length (flat armrests)	1840mm
Overall width	840mm
Total height	1820mm
Package Size	2100x970x1620mm
Weight
Operating weight	950kg
Maximum operating weight	970kg
