Home > Manufacturing & Processing Machinery > Engineering & Construction Machinery > Loader > 1800kg Multi-functional Front End Wheel Loader With Attachments

1800kg Multi-functional Front End Wheel Loader With Attachments

1800kg Multi-functional Front End Wheel Loader With Attachments photo-1

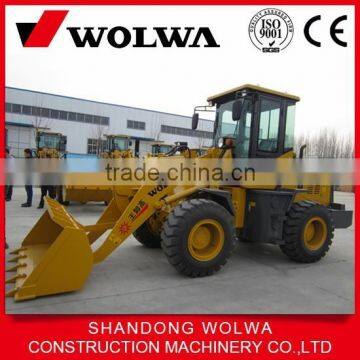

1800kg Multi-functional Front End Wheel Loader With Attachments photo-2
1800kg Multi-functional Front End Wheel Loader With Attachments photo-3
1800kg Multi-functional Front End Wheel Loader With Attachments photo-4
US$ 500 - 8,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Brand Name:
Wolwa
Model Number:
DLS920
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Tianjin Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Brand Name Wolwa
Model Number DLS920
Place of Origin Shandong, China
Type Front Loader
Moving Type Wheel Loader
Dimension(Long * Breadth * High) 5520*1950*2670mm
Rated Load 1800kg
Certification CE & ISO9001:2008
Warranty 1 year
After-sales Service Provided Overseas third-party support available

Product Description

1800kg Multi-functional Front End Wheel Loader with Attachments

Product Features

1. Adopt Zhejiang Xin Chai four cylinder diesel engine.

2. Hydrodynamic transmission technology and separated structure make high reliability and easy maintenance.

3. Controlled by flexible shaft, hydraulic power shift gearbox with 2 forward and 2 reverse gears makes operate easy.

4. Single pump, split flow working hydraulic system makes lower consumption and excellent performance.

5. Double sealed hydraulic pipeline joints, avoiding oil leakage.

6. Load sensing fully hydraulic steering system makes operation easy.

7. Air over hydraulic brake system; Caliper disc brakes.

8. Working device with automatically leveling ability at high position.

9. Bucket articulated points take sealed, lubricated, dust-proof layers, which owns good durability.

10. Integral, luxury instrument board.

11. New, luxury cabin.



1800kg Multi-functional Front End Wheel Loader with Attachments Parameters

Item

Specifications

Item

Specifications

Bucket Capacity

0.9 m3

Min. Turning Radius

(outside of  rear wheel)

4200mm

Rated Load

1800 kg

Steering Angle

35º

Dumping Height

2750 mm

Min. Ground Clearance

330mm

Dumping Reach

910 mm

Wheel Base

2150mm

Boom Lifting Time

4.5 S

Tread

1480mm

Total Cycling Time

9 S

Engine Model

Xin Chai 4105

Max. Speed

25km/h

Rated Power

50kw/2400rpm

Max. Breakout  Force

46kn

Tyre

16/70-20

Max. Drawing Force

35kn

Overall Dimensions

5520*1950*2670mm

Max. Gradeability

28°

Operating Weight

5300kg

Optional: Lovol 1004-4L06 Diesel engine.



1800kg Multi-functional Front End Wheel Loader with Attachments Photos

1800kg Multi-functional Front End Wheel Loader with Attachments1800kg Multi-functional Front End Wheel Loader with Attachments1800kg Multi-functional Front End Wheel Loader with Attachments

Packaging & Shipping

1800kg Multi-functional Front End Wheel Loader with Attachments

Comany Information

Shandong Wolwa Construction Machinery Co., Ltd, a corporate enterprise of Wolwa Group, is

a professional hydraulic excavator manufacturer integrating scientific research, production

and sales. Wolwa Group Co., Ltd has the total assets of 2.5 billion RMB. It has over 80,000

square meters of production workshop with international advanced level and 8,000 square

meters of R & D center. It has the production capacity with an annual output of 10,000

sets of construction machinery and 20,000 sets of hydraulic parts. The company has the

honors of National High-tech Enterprise, he Leader of Local SMES and Shandong Top 100

Enterprise.

Our main leading products are DLS865-9A  DLS880-9A  DLS890-9A  DLS100-9A Wheeled

Hydraulic Excavator, DLS880-9A  DLS890-9A Wheeled Sugarcane Wood Loader,  DLS118-9A

Wheeled Hydraulic Stacker, DLS865-9B  DLS865-10B  DLS880-9B DLS100-9B  DLS130-9  DLS160-9 Crawler Hydraulic Excavator etc.

We also specializes in the sales of other construction machinery and agricultural equipment

such as desiccated underground crusher, welding workstation, truck cranes,wheel loaders,

skid steer loaders, concrete mixer trucks, forklifts, road rollers, harvesters, tractors, steel bar

processing machinery and so on.

Our company has passed the ISO9001:2008 authentication, and got European UnionCE

certificate.Our products are exported to many countries such as Russia, Belarus, Iran,

Vietnam, Five Central Asian Countries, Africa and other countries all over the world.
