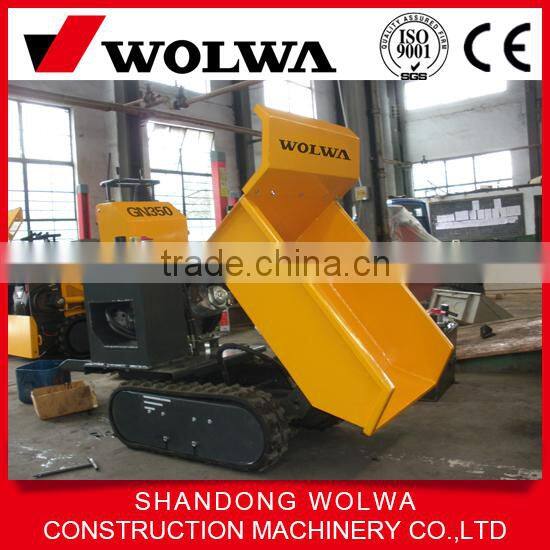

Rated Load Weight 350kg Mini Dumper for Garden Transport
US$ 2,500 - 3,500
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Brand Name:
WOLWA
Model Number:
GN350
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Garden Small Crawler Mini Dumper for SaleUS$ 2,500 - 3,500MOQ: 1 Set -
8hp Garden Mini Track Dumper for SaleUS$ 2,500 - 3,500MOQ: 1 Set
-
Cheap Price Convenient Mini Track DumperUS$ 2,500 - 3,500MOQ: 1 Set
-
Garden Mini Dumper Truck With Diesel,electric,gasoline EngineUS$ 2,500 - 3,500MOQ: 1 Set
-
Small Garden Use Truck Dumper for Soil,sand TransportUS$ 2,500 - 3,500MOQ: 1 Set
Condition
New
Brand Name
WOLWA
Model Number
GN350
Place of Origin
Shandong, China
Type
Skid Steer Loader
Moving Type
Crawler Loader
Dimension(Long * Breadth * High)
1498*764*1300mm
Rated Load
350kg
Certification
iso and ce
Warranty
1 year
After-sales Service Provided
Engineers available to service machinery overseas
Product Description

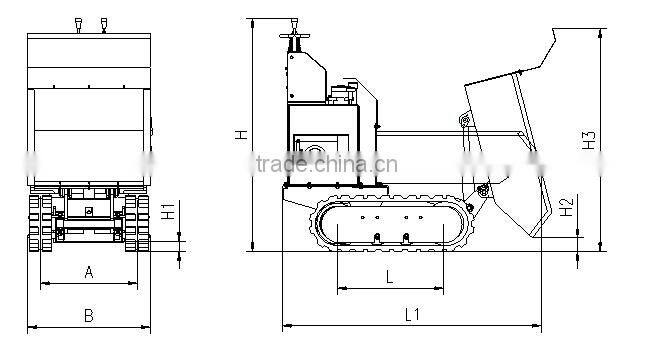

Main Dimension:
Max operating height(H) |
1300mm |
51.18 in |
Max lifting height(H3) |
1238mm |
48.74 in |
Skip Max Dumping height(H2) |
60mm |
2.36 in |
Skip Dumping Angle(α) |
80° |
|
Wheel base(L) |
620mm |
24.4 in |
Total length(L1) |
1498mm |
58.98 in |
Ground clearance(H1) |
55mm 2.2 in |
|
Tread width ,centerline to centerline(A) |
550mm |
21.65in |
Total width(B) |
764mm |
30.08 in |
Minimum turn radius R |
912mm |
35.9in |
Technical Parameter
Engine |
Single-cylinder, four-stroke ,air-cooled
|
||
Rated power |
7KW(8HP) /3600rpm | ||
| Maximum torque | 23.5N.m/2400 rpm | ||
| Noise (Db) | ≤80 | ||
Hydraulic system |
Hydraulic pressure(Mpa) |
15 | |
Cycle time(s) |
Dumping |
Retracting | |
2.28 |
1.3 | ||
Technical Parameter |
Rated loading |
350Kg 771.6 Lb |
|
Skip capacity(level) |
0.13m3 4.6 ft3
|
||
Speed |
3.3Km/h 2.05mile/h |
||
Operating weight |
420Kg 925.9Lb |
||
Packaging & Shipping
20'container can load 10sets crawler mini dumper
