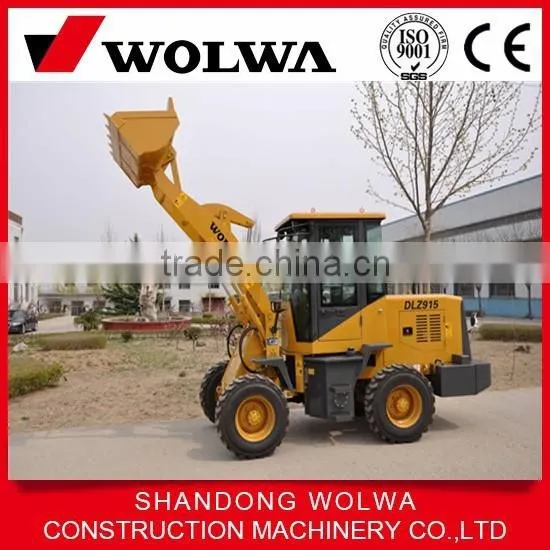

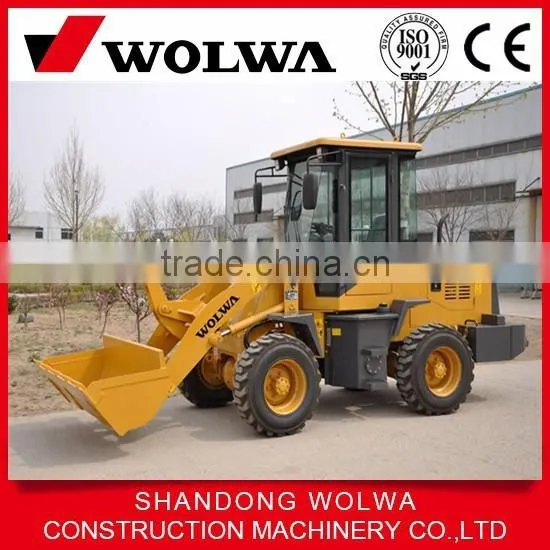

1 Ton New Cheap Front Loader for Sales

Name: 1 Ton New Cheap Front Loader for Sales
Brand: WOLWA
SKU: 140740424
Availability: InStock

US$ 2,000 - 3,000 MOQ: 1 Set

Key Specifications

Condition:

New

Brand Name:

WOLWA

Model Number:

DLZ915

Shandong Wolwa Construction Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao port

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Brand Name WOLWA

Model Number DLZ915

Type Front Loader

Moving Type Wheel Loader

Dimension(Long * Breadth * High) 4960*1620*2420mm

Rated Load 1000kg

Certification ce

Warranty 1 year

After-sales Service Provided Engineers available to service machinery overseas

1 ton new cheap front loader for sales

Product Features

1. Adopt XinChai B490BG Four Cylinder Engine;

2. Full hydraulic transmission technology, simple structure and reliable performance;

3. Split flow of single pump for working hydraulic system, significant effect of energy conservation;

4. Double sealed hydraulic pipeline joints with 24°awl and O ring of international standard, avoiding oil leakage;

5. Load sensing fully hydraulic steering system, easy and flexible operation;

6. Safe and reliable single pipeline brake system; Caliper disc brakes.

7. Working device with automatically leveling ability at high position.

8. Bucket articulated points take sealed, lubricated, dust-proof layers, which owns good durability.

9. Integral, luxury instrument board.

10. New, luxury cabin.

Item	Specifications	Item	Specifications
Bucket capacity	0.5 m3	Min. turning radius (outside of rear wheel)	3600mm
Rated load	1000 kg	Steering angle	35º each direction
Dumping height	2420 mm	Min. ground clearance	230mm
Dumping reach	900 mm	Wheel bace	1820mm
Boom lifting time	4 S	Wheel tread	1400mm
Total cycling time	8 S	Engine model	B490G
Max. speed	16km/h	Rated power	32kW/2300rpm
Max. breakout force	35 kN	Tyre	8.25-16
Max.drawing force	18 kN	Overall dimensions	496016202420mm
Max. gradeability	28°	Operating weight	2990kg
