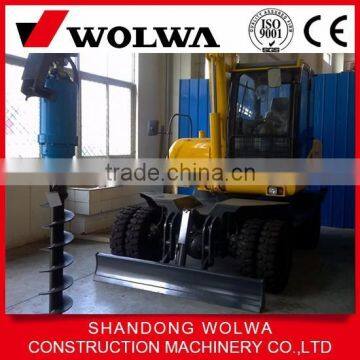

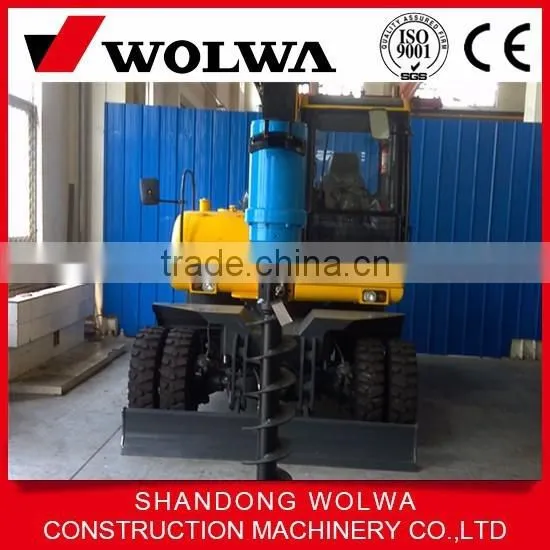

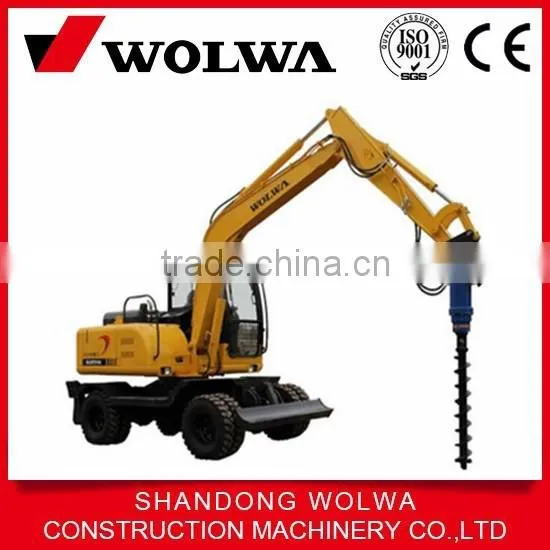

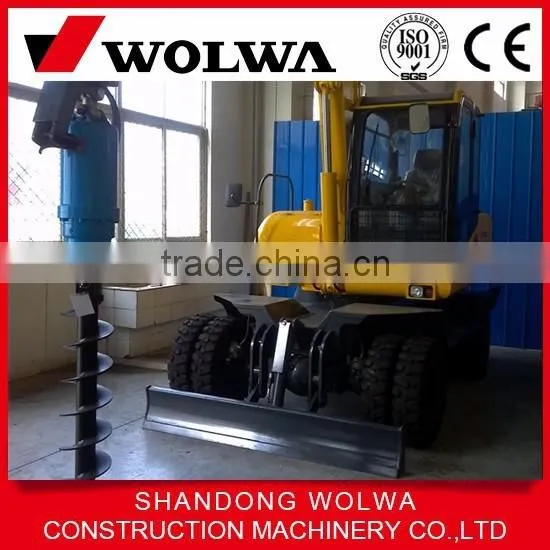

DLS880-9A 7.2t wheeled spiral drilling machine
Spiral drilling machine is suitable for the drilling work. It is used for the drilling construction of electricity, highway, railway, building, and petroleum and forest industry when there is wood, bridge, forests on the soil surface. With high efficiency, it can drill the soil with pebbles, rubble or even rock. The diameter of the drilling arm is 100-700mm with wide scope, could be used widely in digging holes in wood and breaking the ice.
DLS880-9A 7.2t wheeled spiral drilling machine
Dimensions
| Overall Width | 2000mm |
Machine Height (to cab top) | 2710mm | |
Overall Length | 6355mm | |
Machine Height (to boom top) | 2617mm | |
Ground Clearance(bob-weight) | 985mm | |
Min. Ground Clearance | 280mm | |
Tyre Gauge | 1560mm | |
Wheel Shaft Diameter | 2310mm | |
Mouldboard Width | 2024mm | |
Mouldboard Height | 310mm | |
Specifications
| Engine Model | A498BZG-09 |
Working Pressure | 22 Mpa | |
Rated Flow | 55*2 L/min | |
Swing Speed | 9.2rpm | |
Travel Speed | 0-30km/h | |
Bucket Digging Force | 50kn | |
Arm Digging Force | 25kn | |
Max. Hauling Force | 43.2kn | |
Max. Torque | 230n.m/1800rpm | |
Grade Ability | 20° | |
Fuel Tank | 125 L | |
Hydraulic Oil Tank | 105 L | |
Rated Capacity | 2*25 ml/r |
DLS880-9A 7.2t wheeled spiral drilling machine
•Direct factory supplier ,Well and High Quality Control
Shandong Wolwa Construction Machinery Co., Ltd, a corporate enterprise of Wolwa Group, is a professional hydraulic excavator manufacturer integrating scientific research, production and sales. Wolwa Group Co., Ltd has the total assets of 2.5 billion RMB. It has over 80,000 square meters of production workshop with international advanced level and 8,000 square meters of R & D center. It has the production capacity with an annual output of 10,000 sets of construction machinery and 20,000 sets of hydraulic parts. The company has the honors of National High-tech Enterprise, he Leader of Local SMES and Shandong Top 100 Enterprise.
Our main leading products are DLS865-9A DLS880-9A DLS890-9A DLS100-9A Wheeled Hydraulic Excavator, DLS880-9A DLS890-9A Wheeled Sugarcane Wood Loader, DLS118-9A Wheeled Hydraulic Stacker, DLS865-9B DLS865-10B DLS880-9B DLS100-9B DLS130-9 DLS160-9 Crawler Hydraulic Excavator etc.
We also specializes in the sales of other construction machinery and agricultural equipment such as desiccated underground crusher, welding workstation, truck cranes, wheel loaders, skid steer loaders, concrete mixer trucks, forklifts, road rollers, harvesters, tractors, steel bar processing machinery and so on.
Our company has passed the ISO9001:2008 authentication, and got European Union CE certificate. Our products are exported to many countries such as Russia, Belarus, Iran, Vietnam, Five Central Asian Countries, Africa and other countries all over the world.
