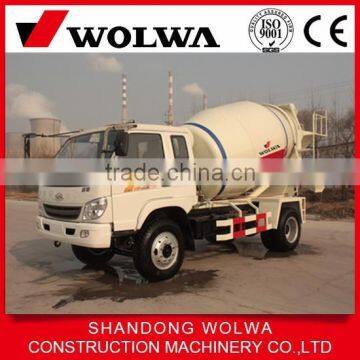

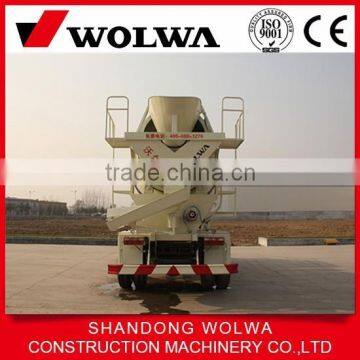

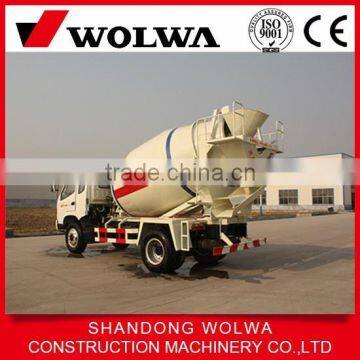

Product Description 6 cbm Concrete Mixer Truck with Low Price Concrete Mixer Truck Introduction Concrete mixing truck is composed of automobile chassis and specialized concrete mixing device. The production of concrete mixer truck chassis is mostly used as grade B common chassis provided by manufacturers. Its special institutions mainly including the power lifter, before and after the mixing drum bracket, deceleration machine, hydraulic system, mixing barrel, operating mechanism, cleaning system, etc. Working principle is that power is taken from chassis, and drives variable pump of the hydraulic system, changing mechanical energy into hydraulic energy to quantitative motor, then the motor drives reducer, then to mixing device, for mixing concrete. Concrete Mixer Truck Composition Composed of automobile chassis, mixing drum, transmission system, water supply device, power taking device, front and rear drum support, reducer, hydraulic transmission system, material input and output system, operating mechanism,etc. Due to technical reasons, domestic mixer truck with 3 to 8CBM volume adopt 4 main domestic parts, more than 8CBM adopt imported components. Mixers: second class chassis, transmission system, hydraulic system, frame, mixing tank, input and output device, water supply system, control system,ladder,etc. Drum and the reducer is connected and installed on the frame at the front desk, the rear is supported by two wheel installed in the frame of the background.
6CBM Concrete Mixer Truck Parameter Product::6CBM concrete mixer truck engine model:YC4D130-41 turbocharge Chassis model:T-king ZB3160TPE3F engine type: Forced circulation cooling Total weight:(kg)15800 engine output:4200 Overall dimension:7025*2285*3570 engine power:(kw)96 V*B*H(mm) Max.turning:(r/min)3200 Axle base:(mm)3700 drum capacity:(m³)9 Front axle:(mm)1290 Max.mixing Vol.:(m³)6 Rear overhang:(mm)2035 input speed:(m³)≥0.5 gradeability:25 output:(m³)≥0.8 Max.machine speed:(km/h)≤583 max.turning speed:(r/min)6-15 Min.turning radius:(m)≤15 drum tilt angle:(°)16 Clutch:double disc jointed Max.drum Dia.(mm)2110 Drive type:axle drive reducer:HJ300.45 Drive way:rear wheel hydraulic pump:Huayou50 gear pump Turning type: hydraulic hydraulic motor:cycloid motor Machine brake: air Braking water tank Vol.:(L)180 Brake:air Braking Water supply:air pressure
Packaging & Shipping 6 cbm Concrete Mixer Truck with Low Price
Company Information Shandong Wolwa Construction Machinery Co., Ltd, a corporate enterprise of Wolwa Group, is a professional hydraulic excavator manufacturer integrating scientific research, production andsales. Wolwa Group Co., Ltd has the total assets of 2.5 billion RMB. It has over 80,000 squaremeters of production workshop with international advanced level and 8,000 squaremeters of R & D center. It has the production capacity with an annual output of 10,000 sets of construction machinery and 20,000 sets of hydraulic parts. The company has the honors of National High-tech Enterprise, the Leader of Local SMES and Shandong Top 100 Enterprise. Our main leading products are DLS865-9A DLS880-9A DLS890-9A DLS100-9A Wheeled Hydraulic Excavator, DLS880-9A DLS890-9A Wheeled Sugarcane Wood Loader, DLS118-9A Wheeled Hydraulic Stacker, DLS865-9B DLS865-10B DLS880-9B DLS100-9B DLS130-9 DLS1609 Crawler HydraulicExcavator etc. We also specializes in the sales of other construction machinery and agricultural equipment such asdesiccated underground crusher, welding workstation, truck cranes,wheel loaders, skid steer loaders, concrete mixer trucks, forklifts, road rollers, harvesters, tractors, steel bar processing machinery and so on.Our company has passed the ISO9001:2008 authentication, and got European UnionCE certificate. Our products are exported to many countries such as Russia, Belarus, Iran, Vietnam, Five Central AsianCountries, Africa and other countries all over the world.
