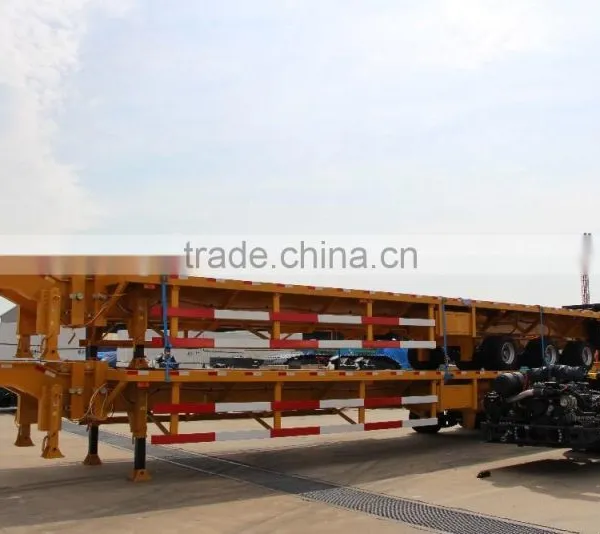

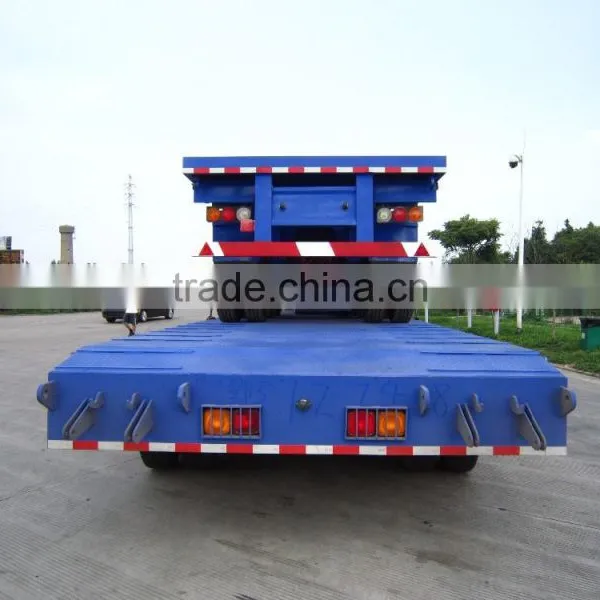

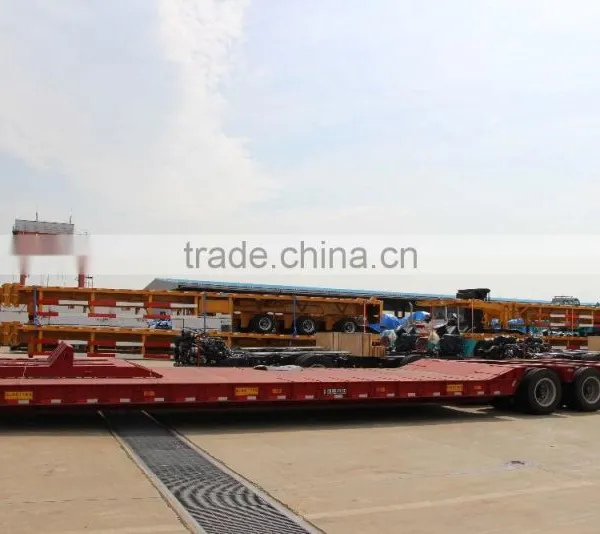

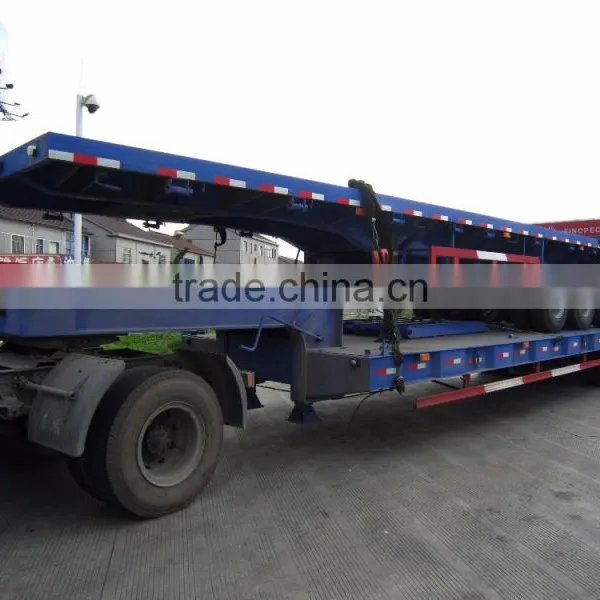

Help Center40 Tons 3 Axle Semi-Trailer Low-Bed Trailer for Sale
Related Products
-
60 Tons 3 Axle Semi-Trailer Lowbed Trailer for SaleUS$ 1 - 25,000MOQ: 1 Unit -
70 Ton 3 Axle Low-bed Semi-trailerUS$ 1 - 25,000MOQ: 1 Unit
-
Brand New RHD Sinotruck Tractor Truck 6x4 ZZ4257S3241W Low Price for SaleUS$ 35,000 - 40,000MOQ: 1 Unit
-
SINOTRUK HOWO ZZ3257N3647A Dump Truck Hot Sale in NigeriaNegotiableMOQ: 1 Unit
-
Sinotruk Howo A7 Cabin 6x4 Head Tractor Truck ZZ4257V3247NegotiableMOQ: 1 Unit

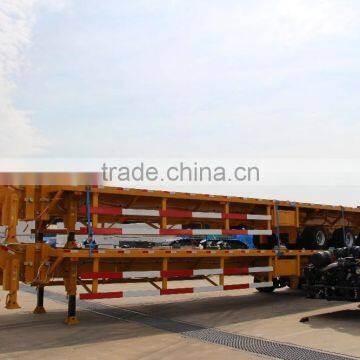

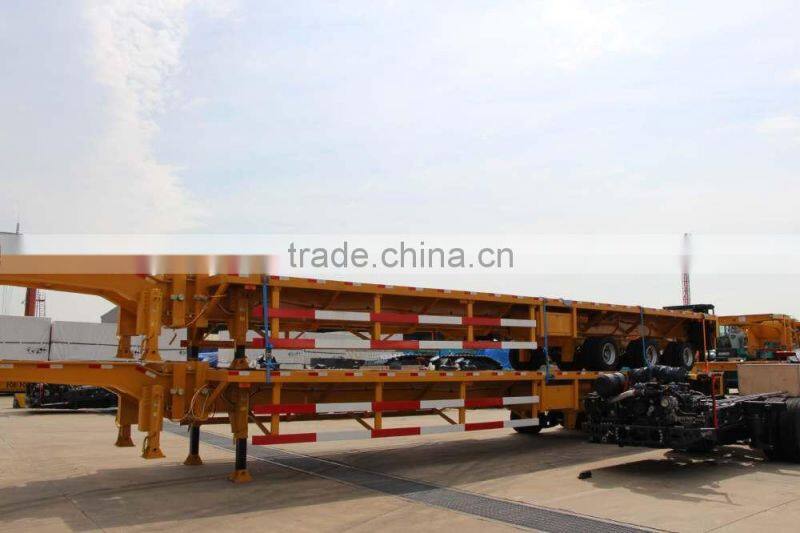

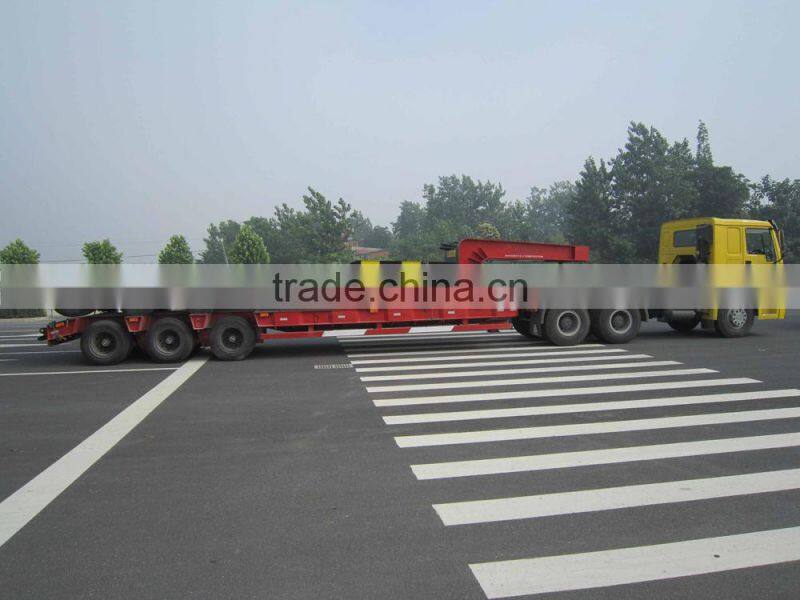

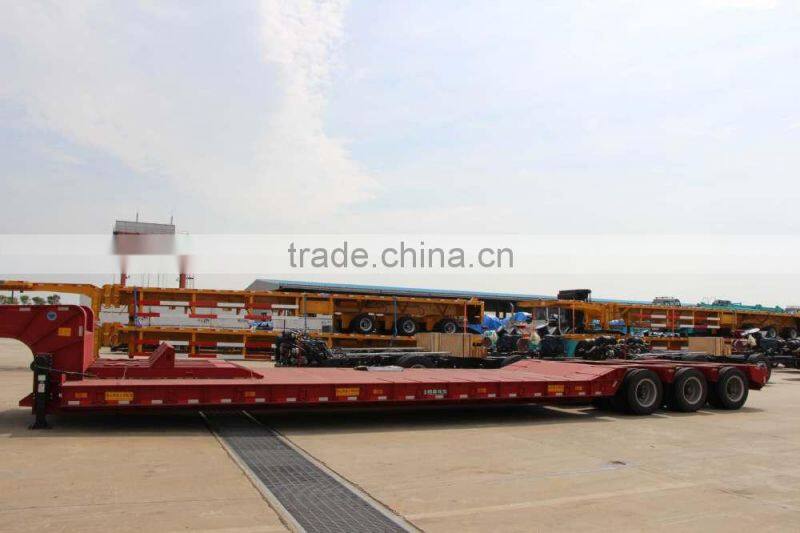

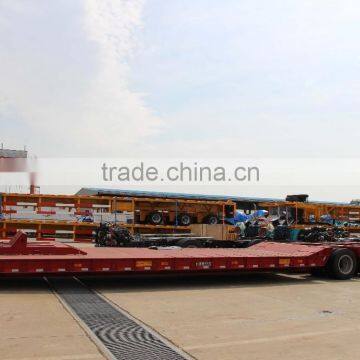

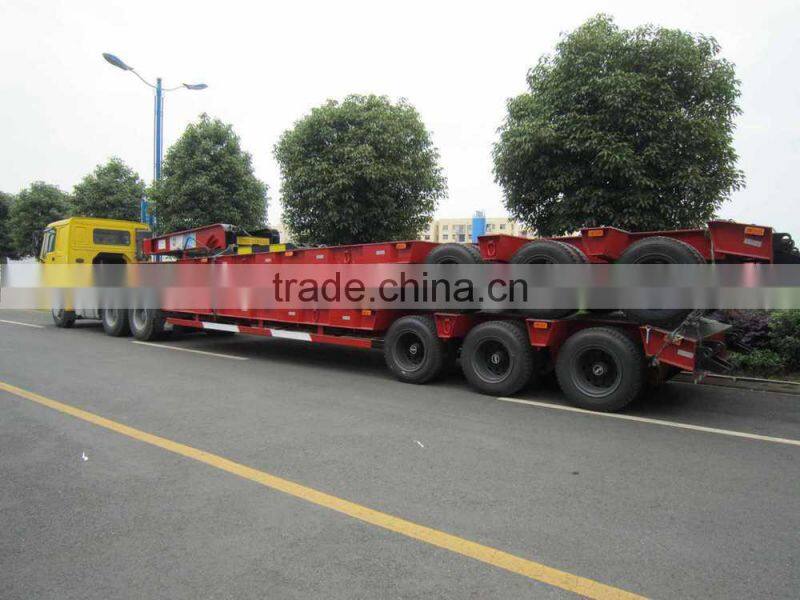

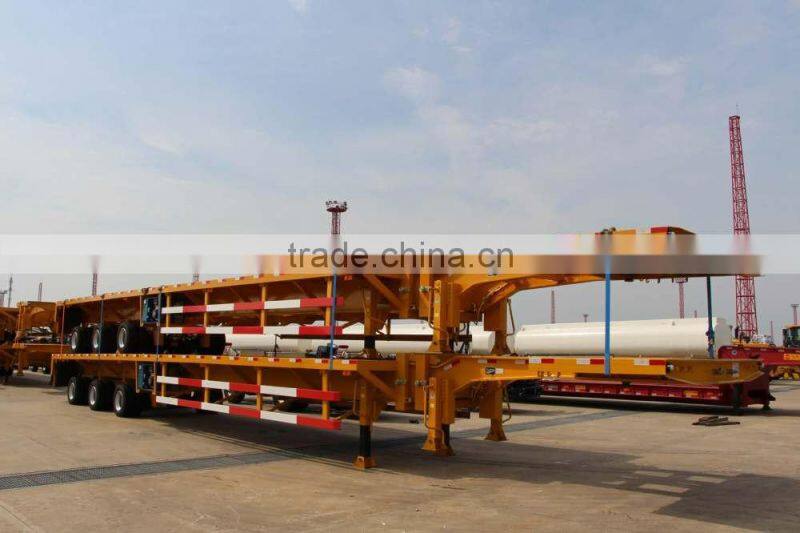

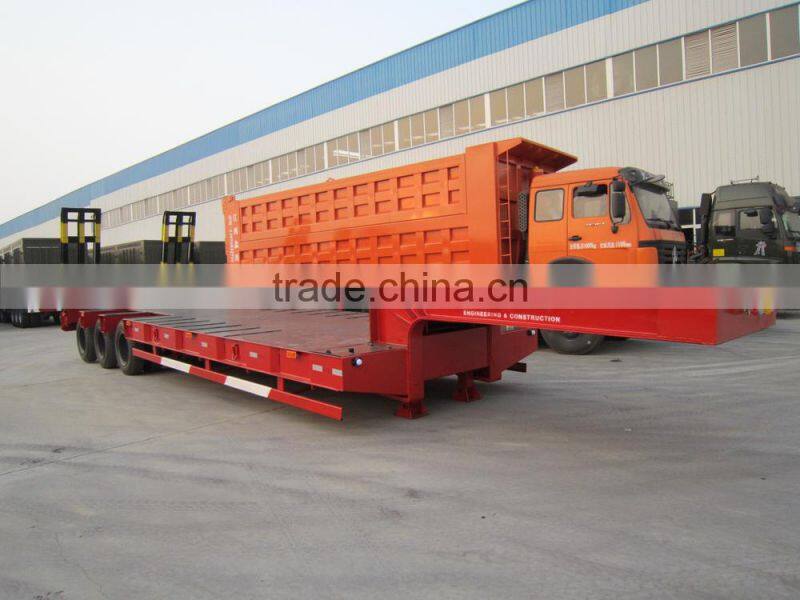

Semi-Trailer Type 3 axles low-bed semi trailer 40T
Low Price Chinese Low-Bed Semi-Trailer, Flatbed Trailer
Vehicle Name |
3 axle low bed semi-trailer |
|
Vehicle Model |
9401TDP |
|
Loading capacity |
40T |
|
Dimension Parameter | ||
Overall length (mm) |
15000 |
|
Overall width (mm) |
3000 |
|
Overall height (mm) |
2015 |
|
Wheelbase (mm) |
8580+1310+1310 |
|
Front / rear suspension (mm) |
-/1400 |
|
Front / rear tread (mm) |
-/2180/2180/2180 |
|
Weight Parameter | ||
GVW (kg) |
40000 |
|
Payload weight (kg) |
30000 |
|
Kerb weight (kg) |
10000 |
|
Others | ||
Spring leaf No. |
-/8/8/8 |
|
Tyre type |
8.25R20 |
|
Tyre No. |
12 |
|
Suspension |
3 axle mechanism suspension |
|
Axle |
3* 13T FUWA |
|
Landing gear |
Jost 28T, two-speed, manual operation |
|
Material of main beam |
16Mn |
|
Main beam |
Height: 500mm, top flange: 20mm, bottom flange:20mm, middle flange: 10mm |
|
Platform plate |
6mm diamond plate |
|
Kingpin size |
2” or 3.5” |
|
Electrical |
24V, 7 pin socket |
|
Equipment |
Double tyre carrier, one tool box |
|
Painting |
Sand blasting before painting, one coat of primer, anti-corrosion, two coat of finish painting, color can be choose as client request. |
|
The warranty covers the Product, for one (1) year from the documented date of purchase.
We promise excellent service under the warranty:
1. We will send the new spare parts by air express, such as DHL or TNT once our customers request an urgent replace of broken parts under warranty
2. We will arrange engineers to service machinery overseas in case our customers are in need help for installation and training, such as tower cranes, concrete batching plant, asphalt mixing plant, stone crushing plant, etc.
3. We will send original spare parts by shipment or air express for option in case our clients want to purchase some other spare parts for repair and regular maintenance of their machines.
As a leading exporter specially for a big variety of construction equipment, Shanghai Dobest Construction Machinery Co., Ltd. is located in China's biggest port city Shanghai, which is also the financial center and business center.
Our mission is to provide a 'one-stop' service to fulfill our customers’ needs and expectations with the high quality product, prompt delivery and perfect service after sales. We promise to do our best to make our customers satisfied as we offer professional construction solutions for their kinds of projects.
By keeping the principle of good quality, competitive price, superior service, now we have won a very good reputation from all of our customers all over the world. Thus, our business expanded rapidly and so far we have exported our products to more than 20 countries and regions, including Australia, New Zealand, Brazil, Argentina, Honduras, Algeria, Tanzania, Kenya, Ethiopia, Djibouti, Congo, Morocco, UAE, Saudi Arabia, Iraq, Singapore, Thailand, Malaysia, Philippines and etc. Our market is mainly in Africa, South America, Middle East, South East Asia and some European countries.
We devote ourselves to provide a wide range of Chinese well-known construction equipment series to fulfill our customer’s different demands for their projects.
