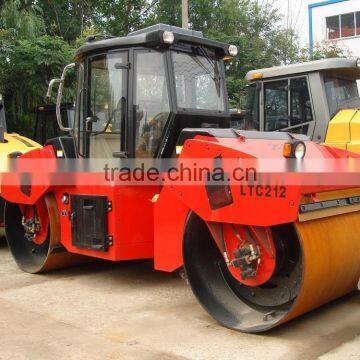

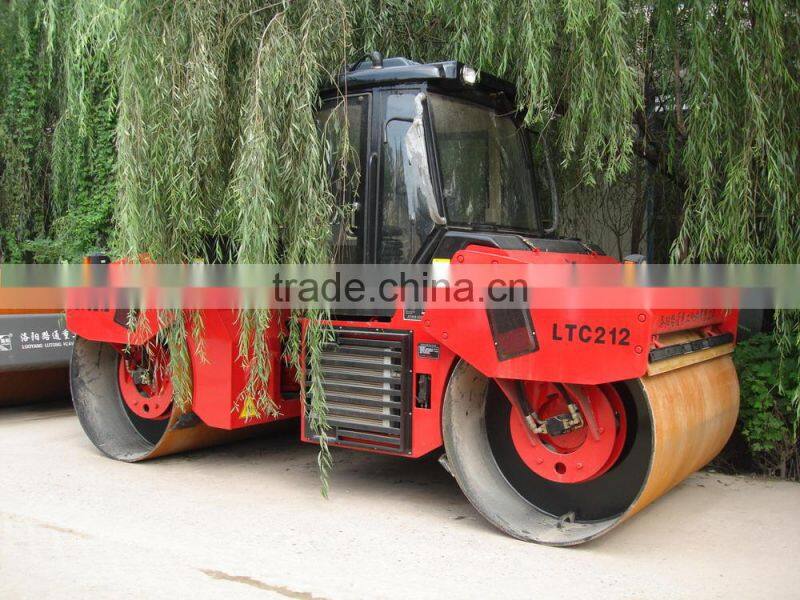

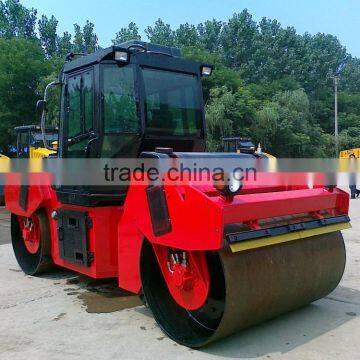

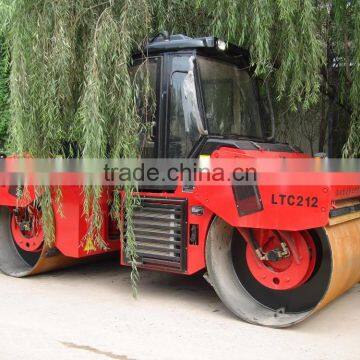

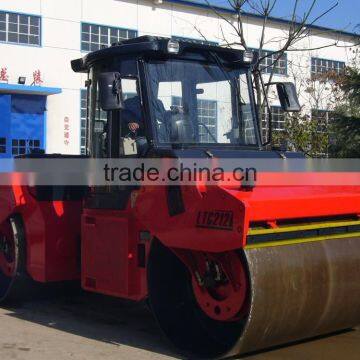

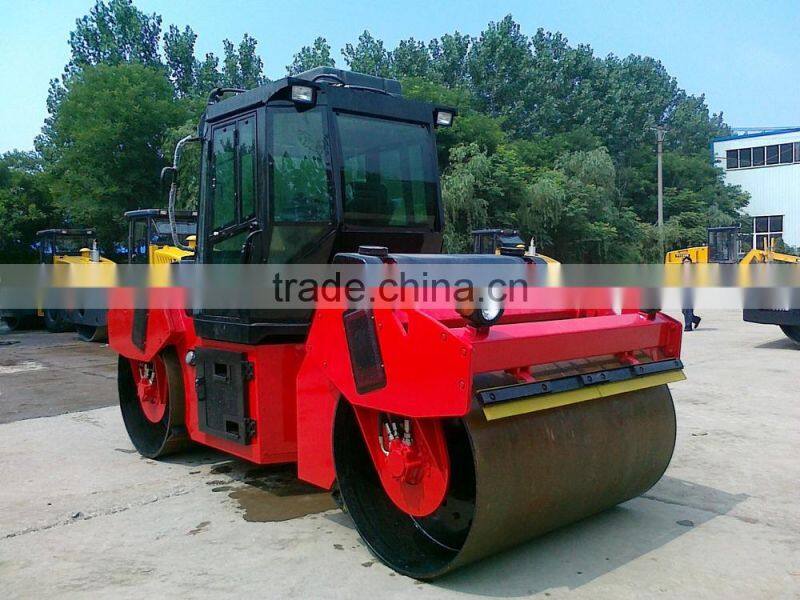

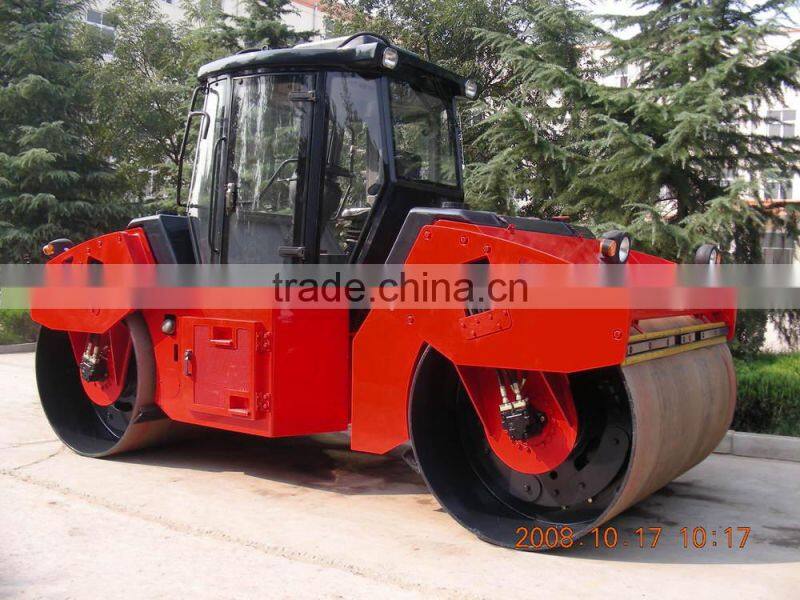

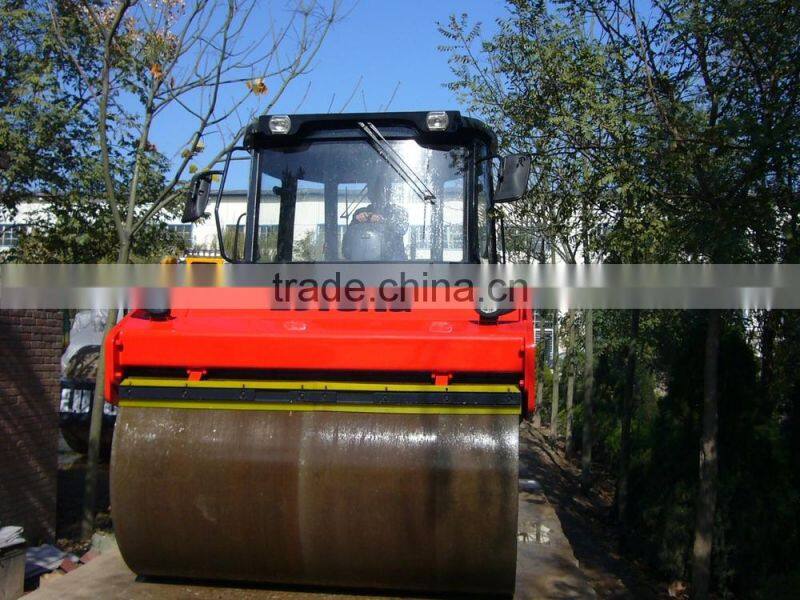

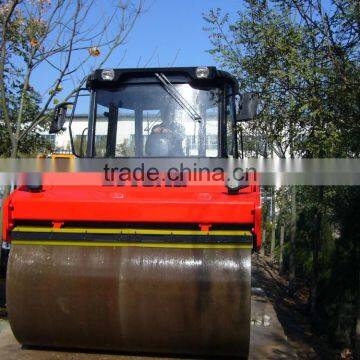

LTC208 Double Steeled Wheel Vibratory Roller 8 Ton Road Roller for sale
LTC208 Hydraulic vibratory rollers are manufactured according to international advanced technology and by use of imported components from abroad.The machine is a double drum tandem vibratory roller.It is primarily used for the compaction of road asphalt concrete,sand g ravel mixtures and RCC material,being a universal compaction equipment for highway,municipal road,park area and industry g round etc.
Main features:
1. Full hydraulic two wheel drive and Vibration.
2. Dual frequencies and dual Vibration amplitudes.
3. Hydrostatic center articulated steering, patented crab mechanism.
4.The driver’s cabin is spacious and comfortable,equipped with rotary working seat,making the operation more flexible and convenient.
5. The driver’s cabin can be turned on one side as a whole, to facilitate maintenance.
6. Fork-type frame,good hold-down property.
Specifications Item NO. |
LTC210 |
LTC208 |
Operating weight(kg) |
10000 |
8000 |
Length x Width x Height(mm) |
4558x1840x2674 |
4558x1840x2674 |
Weight burden on front drum(kg) |
5000 |
4000 |
Weight burden on rear wheel(kg) |
5000 |
4000 |
Static linear load (N/cm) |
238 |
231 |
Min. turning radius(mm) |
6000 |
6000 |
Travel speed(km/h) |
11 |
11 |
Grade ability(%) |
40 |
40 |
Vilibration frequency (Hz) |
45/50 |
45/50 |
Nominal amplitude (mm) |
0.67/0.34 |
0.67/0.34 |
Centrifugal force(kN) |
90x2/69x2 |
90x2/69x2 |
Engine model |
Cummins4BT3.9 |
Cummins4BT3.9 |
Min. fuel consumption(g/km h) |
225 |
225 |
Rated power(kw)/RPM(r/min) |
75/2400 |
75/2400 |
Fuel tank capacity (L) |
80 |
80 |
Vibration pump |
Sauer |
Sauer |
Vibration motor |
Sauer |
Sauer |
Steering model |
Hydraulic |
Hydraulic |
Axle type |
|
|
Tyre |
|
|
Service brake type |
|
|
Parking brake type |
fuel cutoff brake |
fuel cutoff brake |
Hydraulic oil tank capacity (L) |
65 |
65 |
A/C Model |
BDKT5.0-00 |
BDKT5.0-00 |
A/C Refrigerating capacity (W) |
400 |
400 |
A/C Heating capacity (W) Optional |
100 |
100 |
The warranty covers the Product, for one (1) year from the documented date of purchase.
We promise excellent service under the warranty:
1. We will send the new spare parts by air express, such as DHL or TNT once our customers request an urgent replace of broken parts under warranty
2. We will arrange engineers to service machinery overseas in case our customers are in need help for installation and training, such as tower cranes, concrete batching plant, asphalt mixing plant, stone crushing plant, etc.
3. We will send original spare parts by shipment or air express for option in case our clients want to purchase some other spare parts for repair and regular maintenance of their machines.
As a leading exporter specially for a big variety of construction equipment, Shanghai Dobest Construction Machinery Co., Ltd. is located in China's biggest port city Shanghai, which is also the financial center and business center.
Our mission is to provide a 'one-stop' service to fulfill our customers’ needs and expectations with the high quality product, prompt delivery and perfect service after sales. We promise to do our best to make our customers satisfied as we offer professional construction solutions for their kinds of projects.
By keeping the principle of good quality, competitive price, superior service, now we have won a very good reputation from all of our customers all over the world. Thus, our business expanded rapidly and so far we have exported our products to more than 20 countries and regions, including Australia, New Zealand, Brazil, Argentina, Honduras, Algeria, Tanzania, Kenya, Ethiopia, Djibouti, Congo, Morocco, UAE, Saudi Arabia, Iraq, Singapore, Thailand, Malaysia, Philippines and etc. Our market is mainly in Africa, South America, Middle East, South East Asia and some European countries.
We devote ourselves to provide a wide range of Chinese well-known construction equipment series to fulfill our customer’s different demands for their projects.
