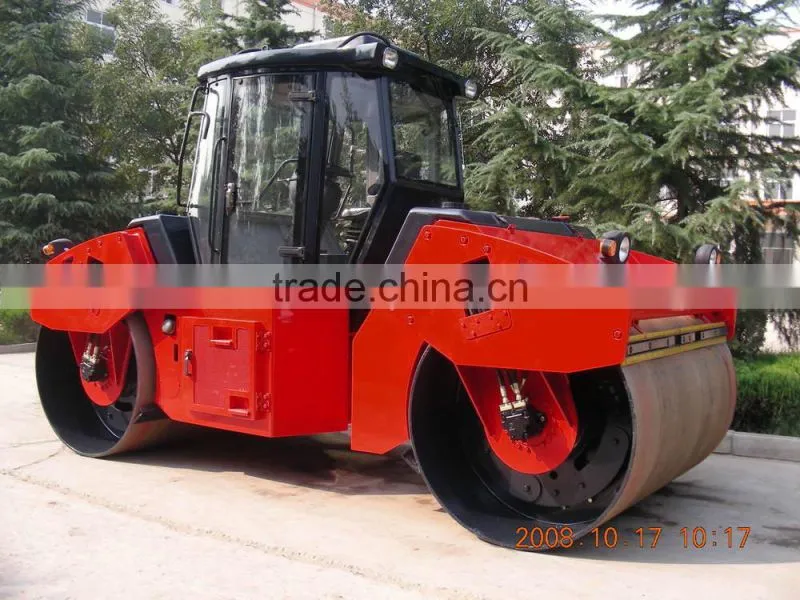

Help CenterLutong 14 Ton Vibratory Road Roller LTC214 Roller on Sale
Related Products
-
LTC212 Lutong 12 Ton Hhydraulic Double Drum Road Roller on SaleNegotiableMOQ: 1 Unit -
14 Ton Single Drum Vibrator Lutong LT214 New Road Roller PriceUS$ 30,000 - 40,000MOQ: 1 Unit
-
Lutong 7 Ton Mini Road Roller Compactor LT207G Road Roller PriceUS$ 10,000 - 20,000MOQ: 1 Unit
-
High Quality 7 Ton Single Drum Road Roller LT207G Roller for SaleUS$ 10,000 - 20,000MOQ: 1 Unit
-
20 Ton Pneumatic Tyre Roller LUTONG LTP2030H Tire Road Roller PriceNegotiableMOQ: 1 Unit

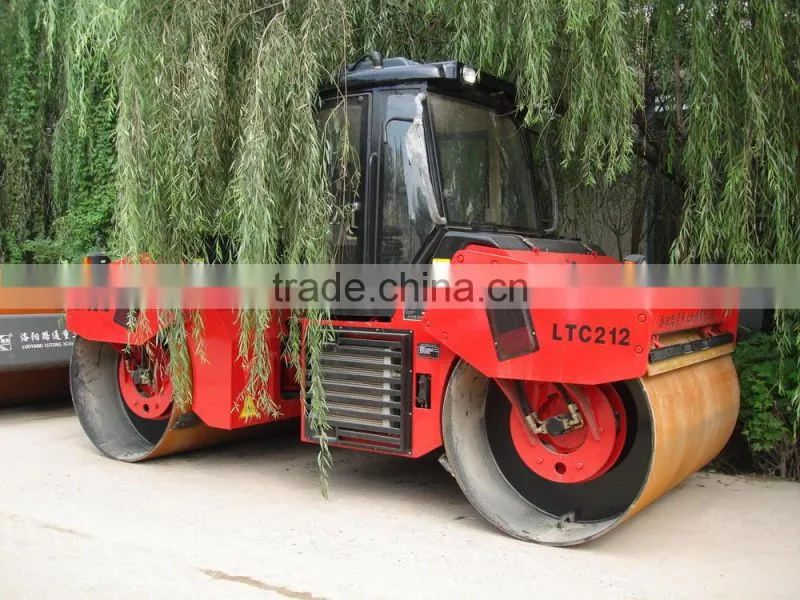

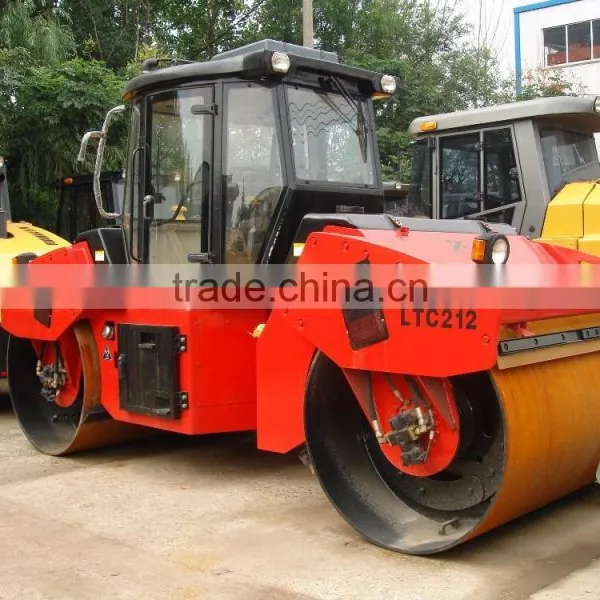

LTC212 Double Steeled Wheel Vibratory Roller 12 Ton Road Roller for sale

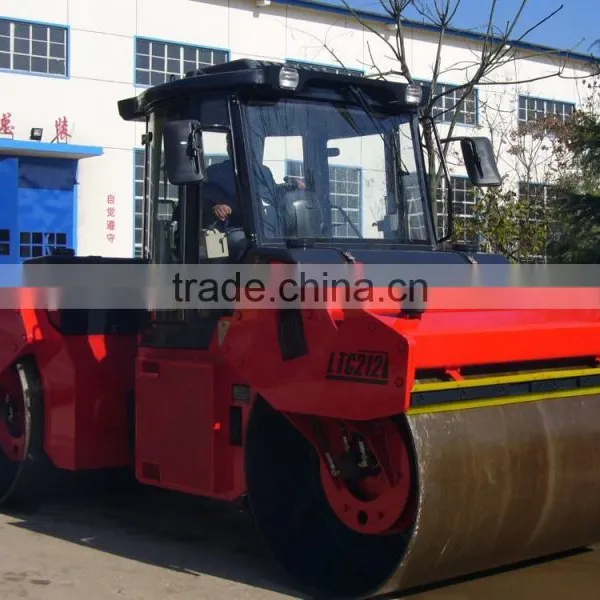

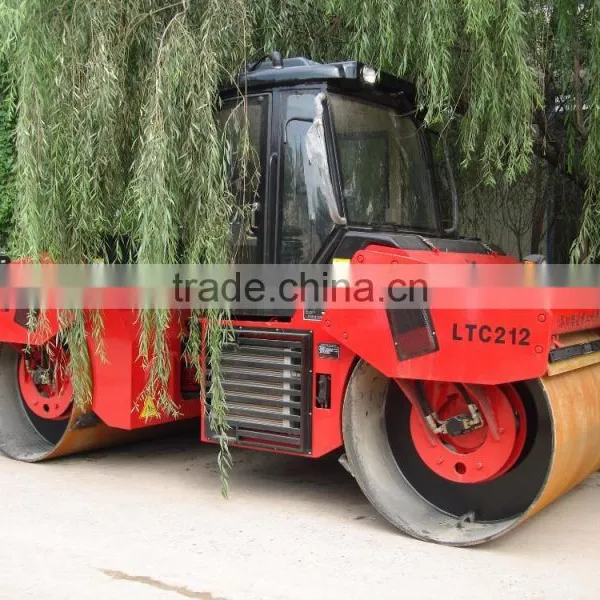

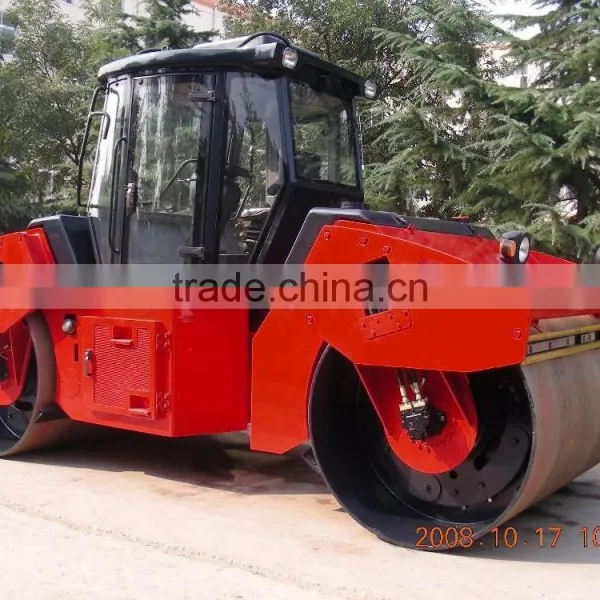

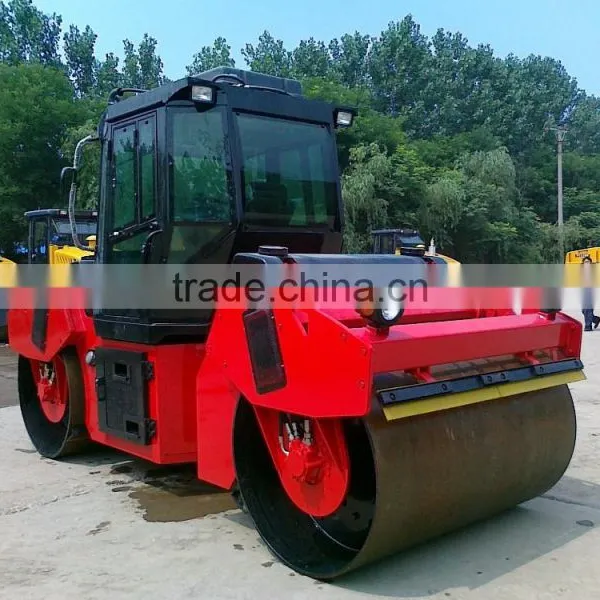

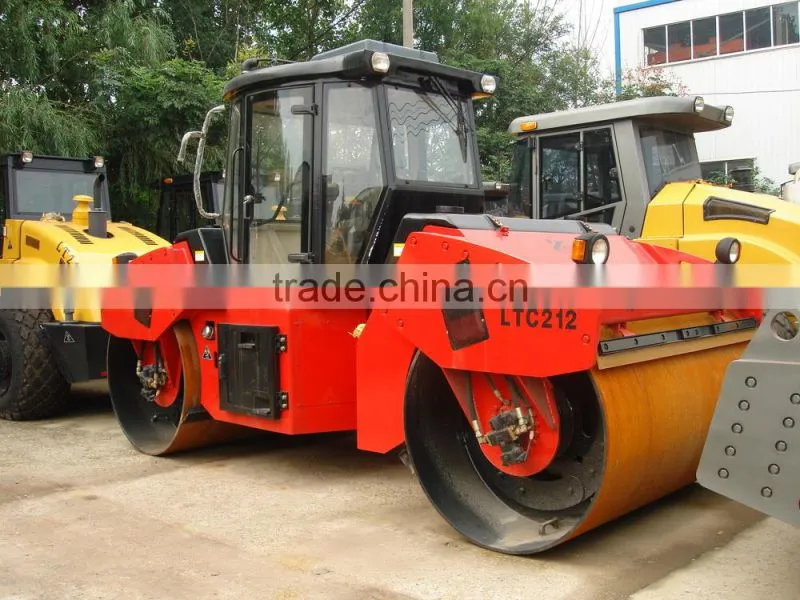

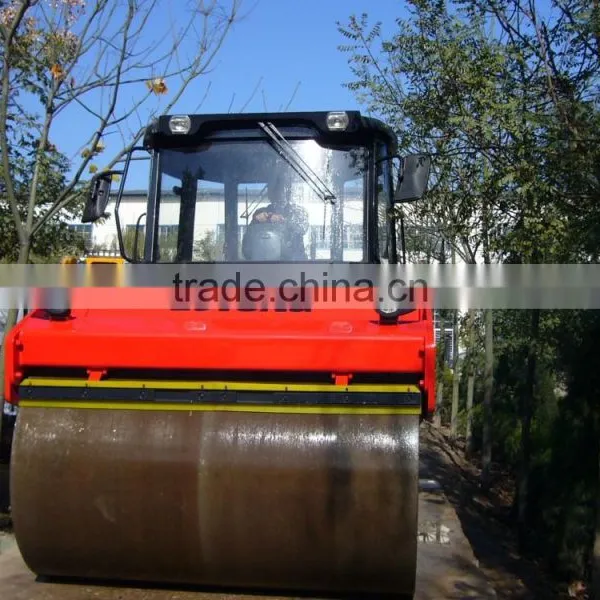

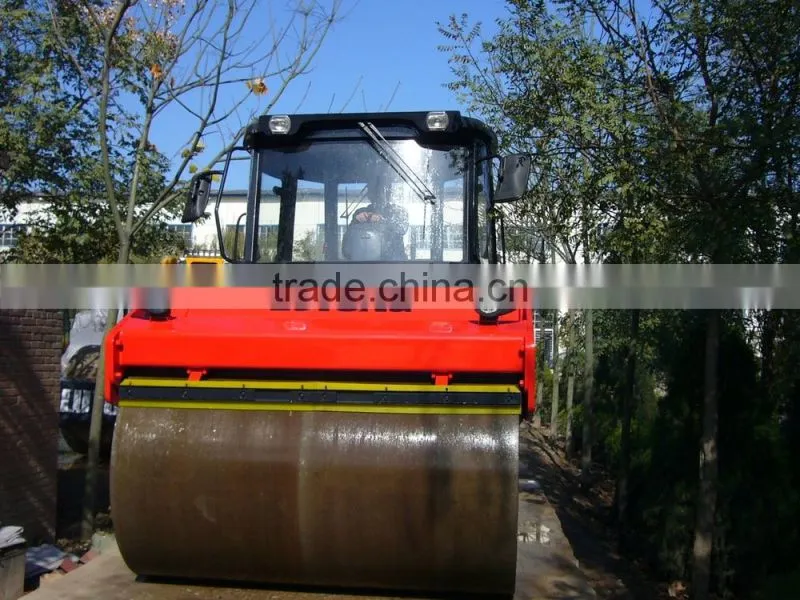

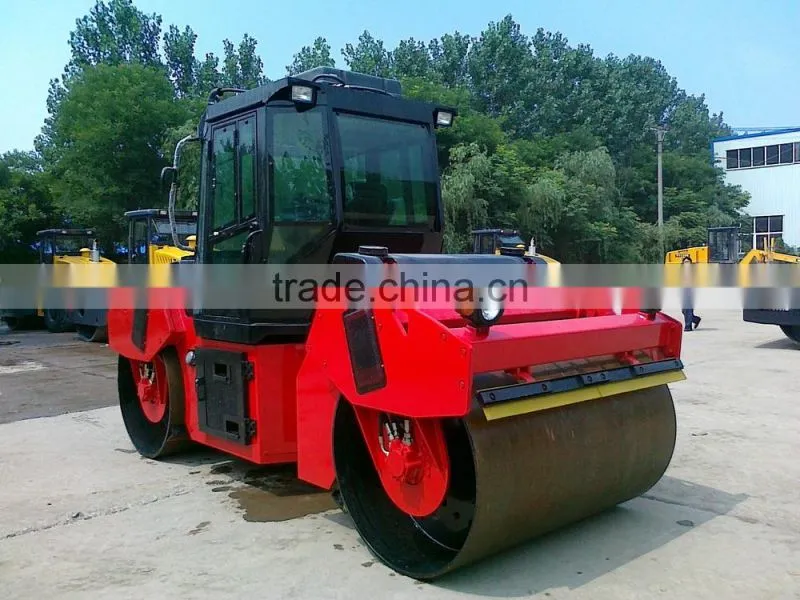

LTC212 Hydraulic vibratory rollers are manufactured according to international advanced technology and by use of imported components from abroad.The machine is a double drum tandem vibratory roller.It is primarily used for the compaction of road asphalt concrete,sand g ravel mixtures and RCC material,being a universal compaction equipment for highway,municipal road,park area and industry g round etc.
Main features:
1. Full hydraulic two wheel drive and vibration.
2. Double frequency double vibration system.
3. Hydrostatic center articulated steering, patented crab mechanism.
4. Cabin with air conditooner, comfortable and spacious, the flexible steering seat facilitates the operation.
5. The driver’s cabin can be turned on one side as a whole, to facilitate maintenance.
6. Hydraulic pump and vibrating motors are of the products made by American manufacturer SAUER of German manufacturers REXROTH.
Model |
|
LTC214 |
Operating mass |
kg |
14000 |
Font axle load |
kg |
6000 |
Rear axle load |
kg |
6000 |
Static linear load |
N/cm |
286 |
Crabwise movement distance |
mm |
±170 |
Water tank capacity |
L |
2x600 |
Fuel tank capacity |
L |
154 |
Hydraulic tank capacity |
L |
65 |
Vibration frequency |
mm |
|
High ampl |
mm |
0.8 |
Low ampl |
mm |
0.4 |
Vibration frequency |
Hz |
|
High ampl |
Hz |
40 |
Low ampl |
Hz |
46 |
Centrifugal force |
kN |
|
High ampl |
kN |
160x2 |
Low ampl |
kN |
90x2 |
Travel speed |
km/h |
0-12 |
Turning radius |
mm |
7000 |
Grade ability |
% |
40 |
Steering angle |
. |
±35 |
Drum diameter |
mm |
1350 |
Drum width |
mm |
2100 |
Drum rim thickness |
mm |
20 |
Transverse swing angle of the vibrating wheel |
. |
±8 |
Type of water spray |
|
pressure |
Wheel base |
mm |
3717 |
Overall length |
mm |
5062 |
Overall width |
mm |
2250 |
Overall height |
mm |
3000 |
Ground clearance |
mm |
324 |
Diesel model |
|
6BT5.9 |
Diesel power |
kW |
110 |
The warranty covers the Product, for one (1) year from the documented date of purchase.
We promise excellent service under the warranty:
1. We will send the new spare parts by air express, such as DHL or TNT once our customers request an urgent replace of broken parts under warranty
2. We will arrange engineers to service machinery overseas in case our customers are in need help for installation and training, such as tower cranes, concrete batching plant, asphalt mixing plant, stone crushing plant, etc.
3. We will send original spare parts by shipment or air express for option in case our clients want to purchase some other spare parts for repair and regular maintenance of their machines.
As a leading exporter specially for a big variety of construction equipment, Shanghai Dobest Construction Machinery Co., Ltd. is located in China's biggest port city Shanghai, which is also the financial center and business center.
Our mission is to provide a 'one-stop' service to fulfill our customers’ needs and expectations with the high quality product, prompt delivery and perfect service after sales. We promise to do our best to make our customers satisfied as we offer professional construction solutions for their kinds of projects.
By keeping the principle of good quality, competitive price, superior service, now we have won a very good reputation from all of our customers all over the world. Thus, our business expanded rapidly and so far we have exported our products to more than 20 countries and regions, including Australia, New Zealand, Brazil, Argentina, Honduras, Algeria, Tanzania, Kenya, Ethiopia, Djibouti, Congo, Morocco, UAE, Saudi Arabia, Iraq, Singapore, Thailand, Malaysia, Philippines and etc. Our market is mainly in Africa, South America, Middle East, South East Asia and some European countries.
We devote ourselves to provide a wide range of Chinese well-known construction equipment series to fulfill our customer’s different demands for their projects.
