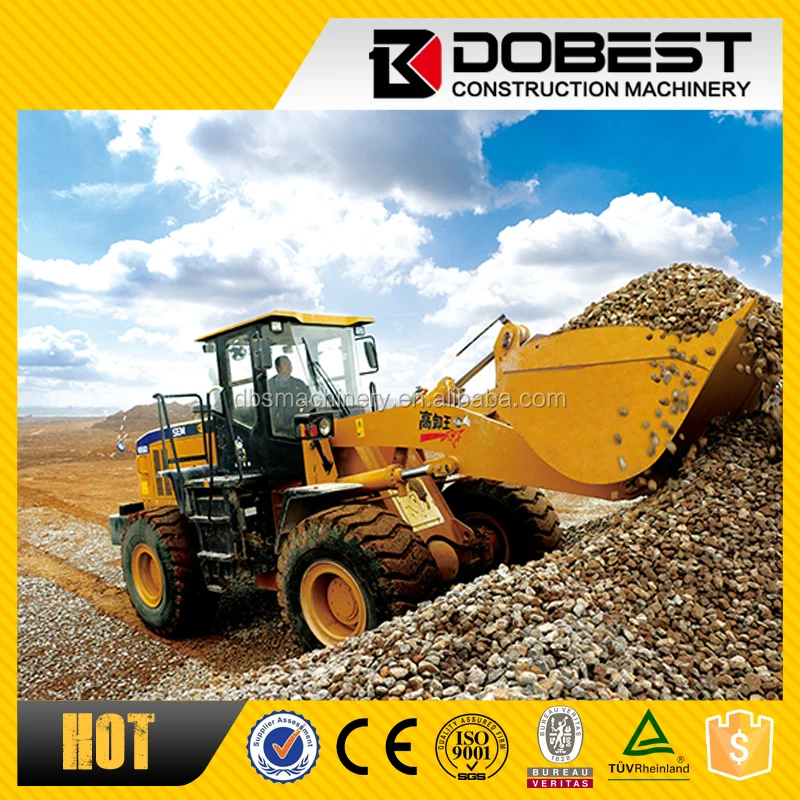

Help CenterChina Popualr Wheel Loader SEM 660B in Stock
Related Products
-
Chinese Wheel Loader SEM 660B Hot SaleUS$ 1 - 67,000MOQ: 1 Unit -
Good Quality 5 Tons Front End Wheel Loader SEM 660B for SaleUS$ 1 - 67,000MOQ: 1 Unit
-
Cheap Price SEM 660B Wheel Loader in StockUS$ 1 - 67,000MOQ: 1 Unit
-
Best Selling SEM 660B Wheel Loader in AlgeriaUS$ 1 - 67,000MOQ: 1 Unit
-
High Quality SEM 660B Wheel Loader for SaleUS$ 1 - 67,000MOQ: 1 Unit
SEM 6 ton Wheel Loader SEM660B for sale
sem 660b wheel loader factory price best quality
660b price, sem 660b wheel loader spare parts list
Features:
• Engine conforming to National Stage II emission standards, optimal power system, improved lifting capability, higher productivity and fuel efficiency.
• With enlarged bucket, the productivity is improved by 12%.
• 18MPa hydraulic system pressure provides high efficiency and energy saving; single lever enables less efforts and convenient operation.
• Enlarged wheelbase, heavier counterweight, higher load capacity, and rear-mounted fuel tank, provides higher stability and the refueling is more convenient.
• Reliability of transmission and front and rear axle is improved; the service and maintenance is convenient.
• Brand new design of cooling system meets the requirements for -20℃ ~ +43℃ ambient conditions. Optional cooling system for 50℃ ambient conditions is also available.
• Full hydraulic coaxial flow amplification steering system improves steering pressure and enables more quick and easy steering.
• Vibration absorption device is mounted with the engine, which further improves the seal performance and reduces vibration and noise.
• Working pump and steering pump made at Caterpillar’s Wuxi plant, SAE/DIN standard high pressure hoses and optimized pipelines.
• Brake booster and brake chamber are moved to the central left service section of the machine, which is more convenient for service and maintenance.
• The overall design meets the mandatory noise and safety standards in China.
Parameters of SEM 6 ton Wheel Loader SEM660B
| Model | SEM660B |
|---|---|
| Bucket Capacity | 3.3-5.5 m3 |
| Rated Load Capacity | 6000 kg |
| Operating Weight | 19600 kg |
| Max. Drawbar Pull | 187 kN |
| Max. Breakout Force | 190 kN |
| Max. Gradeability | 30° |
| Min. Turning Radius (Outside of Bucket) | 7050 mm |
| Min. Turning Radius (Outer Tire) | 5940 mm |
| Cycle Time (Bucket lifting, tipping and lowering) | 10.2 s |
| Dump Height | 3050mm |
| Dump Reach | 1280 mm |
| Wheelbase | 3350 mm |
| Standard Dimensions (L×W×H) (mm) | 8510 ×3092×3410 |
| Engine | |
| Model | Sinotruck Steyr D10.24T21National Stage II emission standards |
| Type | In-line, vertical, water cooling, 4-stroke |
| Rated Power | 175 kW |
| Max. Torque | 950 Nm |
| Drive System | |
| Torque Converter | YJ375 |
| Type | Single stage, 3 elements, centripetal type |
| Transmission Type | Fixed axle, constant engaged power shift |
| Speed Gears | 4 forward, 4 reverse |
| Max. Speed | 40.9 km/hr |
| Front/Rear Drive Axle | 4WD, fixed front axle, swing rear axle(±12°) |
| Steering System | |
| Type | Articulated frame, load sensing, Coaxial flow amplification steering |
| Steering Angle (left/right) | 38°±1 |
| Hydraulic System | |
| Hydraulic System Pressure | 18 MPa |
| Operation Mode | Hydraulic pilot proportional control |
| Brake System | |
| Service Brake | Air-over-oil 4-wheel caliper disc brake |
| Parking & Emergency Brake | Pneumatic internal expanding shoe brake |
| Tires | |
| Size | 23.5-25PR |
| Volume | |
| Fuel Tank | 273 L |
| Hydraulic System | 165 L |
| Optional Devices | |
| Shanghai SCllCB240.1G2B1 National Stage II emission standards | |
| Weichai WD10G240DE21 National Stage II emission standards | |
| Rock bucket with inclined cutting edge/rock bucket/sand bucket/side dump bucket | |
| Log grab/coal bucket and long reach arm | |
| Desert tires | |
| ROPS/FOPS/Warning light | |
| Quick coupler and tools | |
