Home > Products > Earthmoving Machinery > Rated load 2 ton mini articulated wheel loader CE approved

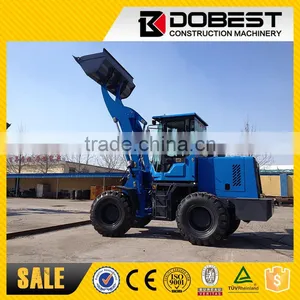

Rated load 2 ton mini articulated wheel loader CE approved
- 500 Unit / Units per Month
- Qingdao Port
- T/T Credit Card
Product Details
Condition: | New | Brand Name: | DOBEST | Model Number: | ZLY920 |
Place of Origin: | Shandong, China | Type: | Front Loader | Moving Type: | Wheel Loader |
Dimension(Long * Breadth * High): | 6100*1980*2800mm | Rated Load: | 2 Ton | Certification: | ISO, CE |
Warranty: | 1 YEAR | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Good quality wheel loader ZLY920 with hydraulil transmission
2 ton Articulated mini loader compact tractor front loader for sale
Rated load 2 ton mini articulated wheel loader CE approved
Hot sale in Australia, Europe
1.Turbo diesel engine 56 kW Xinchai A498BZG
2.With A / C cabin (Option)
3.With pilot controller (joystick) (Option)
4.Nominal load of 2 tons
5.Bucket capacity 1m3
6.Discharge height 3200mm
7.Overall dimension: 6100 * 1980 * 2800mm
8.Operating Mass: 4500kg
9.Four wheel drive
10.Hydraulic steering system
11.Hydraulic Variable pitch CVT
12.Luxury cabin with fan, radio, reverse mirror, reversing camera
13.Approved by the EC; constant quality; Hot selling in Europe, and etc.
Specification | Model No. | ZLY920 |
Rated load | 2000KG | |
Bucket Capacity | 1.0 cbm | |
Dump Height | 3200mm | |
Dump distance | 900mm | |
Wheel Base | 2900mm | |
Wheel Tread | 1800mm | |
Ground clearance | 250mm | |
Machine weight | 4500kg | |
Overall dimension (LxWxH) | 6100*1980*2800mm | |
Boom rise time (s) | 4.5 | |
Discharge time (s) | 3.5 | |
Boom fall time (s) | 3.0 | |
Engine | Model | XINCHAI498 turbo diesel engine |
Type | In-line arrangement, water cooling, four strokes | |
Rated Power | 56KW | |
Rated Speed | 2200RPM | |
Transmission system | Torque converter model | YJ265, Hydraulic |
Type | Single phase, single stage, Radial in-ward turbine triplex | |
Gear box tyoe | Fixed- Spindle power shift | |
Gear shift | 2 gears ahead, 2 gears back | |
Hydraulic variable pitch CVT | ||
Steering system | Type | Articulated hydraulic steering |
Max. turning angle | 35 degree | |
Brake system | Service braking | Oil brake |
Parking braking | Disc brake type | |
Drive type | Four wheel drive | |
Tire | Standard tire | 16/70-20 |
Configuration | Luxury cab with fan, radio, reverse mirror, reverse camera. |
The warranty covers the Product, for one (1) year from the documented date of purchase.
We promise excellent service under the warranty:
1. We will send the new spare parts by air express, such as DHL or TNT once our customers request an urgent replace of broken parts under warranty
2. We will arrange engineers to service machinery overseas in case our customers are in need help for installation and training, such as tower cranes, concrete batching plant, asphalt mixing plant, stone crushing plant, etc.
3. We will send original spare parts by shipment or air express for option in case our clients want to purchase some other spare parts for repair and regular maintenance of their machines.
As a leading exporter specially for a big variety of construction equipment, Shanghai Dobest Construction Machinery Co., Ltd. is located in China's biggest port city Shanghai, which is also the financial center and business center.
Our mission is to provide a 'one-stop' service to fulfill our customers’ needs and expectations with the high quality product, prompt delivery and perfect service after sales. We promise to do our best to make our customers satisfied as we offer professional construction solutions for their kinds of projects.
By keeping the principle of good quality, competitive price, superior service, now we have won a very good reputation from all of our customers all over the world. Thus, our business expanded rapidly and so far we have exported our products to more than 20 countries and regions, including Australia, New Zealand, Brazil, Argentina, Honduras, Algeria, Tanzania, Kenya, Ethiopia, Djibouti, Congo, Morocco, UAE, Saudi Arabia, Iraq, Singapore, Thailand, Malaysia, Philippines and etc. Our market is mainly in Africa, South America, Middle East, South East Asia and some European countries.
We devote ourselves to provide a wide range of Chinese well-known construction equipment series to fulfill our customer’s different demands for their projects.
