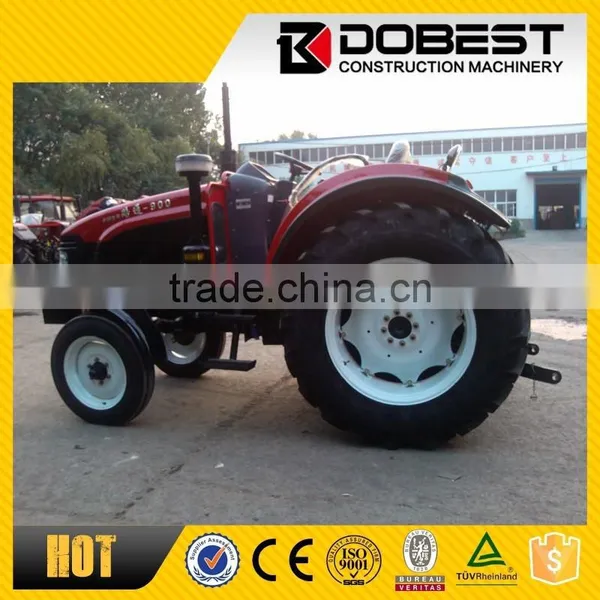

China Compact tractor mini tractor 40hp tractor /tractor china supplier
Cheap tractor price list, tractor, farm tractor, tractor truck,mini tractor,tractor parts,hand tractor for sale
Tractor made in china for sale
LHY404 40HP 4x4 farm tractor
1.ISO9001:2008
2.OEM service
3. Farm tractor
LHY404 40HP 4x4 farm tractor
1.Famous brand diesel engine
2.Increase 30% efficience,Save 25% fuel
3.4 wheel drive, Shuttle shift 12F+12R, High Ground clearance.
4.Stable performance in Mountain Area with low maintenance rate.
5.Rear 3 point hitch, can equipped different farm implements easily.
6.PTO according international standard 540/1000.
7. Equipped Hydraulic steering and Shock absorption seat.
Can option Cabin, Air-conditioner, paddy field tire. Four color optional without adding money. Rear 3 point hitch.
We can also supply all kinds of implements ! If you need,pls contatc us for more details.
Specification of Compact tractor mini tractor 40hp tractor /china tractor supplier
Type |
LYH400 |
LYH404 |
|
Model |
4*2 (double-wheel driving) |
4*4 (4-wheel driving) |
|
Dimension (mm) |
Length (with front loading) |
3513 |
3513 |
Width |
1823 |
1750 |
|
Height (to vent) |
2130 |
2130 |
|
Wheelbase (mm) |
1880 |
1924 |
|
Front-wheel tread (mm) |
1200~1500 (1300 in common use) |
1250 |
|
Rear wheel tread (mm) |
1200~1500 (1300 in common use) |
||
The smallest ground gap (mm) |
400 |
325 |
|
Agriculture ground gap (mm) |
450 |
375 |
|
|
Turning radius (m) |
apply the brake with single side |
3.1 |
3.4 |
not apply the brake with single side |
3.5 |
4.1 |
|
The whole tractor mass (kg) |
structure mass |
1665 |
1890 |
the smallest using mass |
1840 |
2080 |
|
Loading mass |
front loading |
108 |
144 |
rear loading |
360 |
360 |
|
Rated traction (KN) |
9 |
12 |
|
Engine type |
498BT |
||
Marked power (KW) |
36.8 |
||
Clutch |
10 inch double action |
||
Gear box |
Shift combination style. Mesh cover shift |
||
Speed range |
2.4-31.9 |
||
Centre turn |
Spire and taper sub-gear |
||
Different speeder |
Double planet wheels, close style |
||
Different speed lock |
Post and pin style |
||
Final transmission |
Planet gear style |
||
Front driving bridge |
Full closed prick gear style (for types with 4- wheel driving ) |
||
Independent driving box |
Column gear with straight teeth (for types with 4-wheel driving ) |
||
Front wheel table specification |
6.0-16 |
8.3-20 |
|
Rear wheel table specification |
12.4-28 |
||
Redirector type |
Mechanical or hydraulic turning |
||
Arrester type |
Arrester with double pieces of oil-bath tray (mechanical style) |
||
Lifter type |
Semi-separation |
||
Control way to plough depth |
Force, place control and floating control |
||
Hanging device type |
Three point hanging with postposition |
||
Driving output axis turning speed (r/min) |
540/760 |
||
Contact way:
Amy Shen
Sales Manager
Shanghai Dobest Construction Machinery Co., Ltd.
Web:
Skype: amyshen1212
Yahoo: amyshen121286
Tel: +86-21-66058291 Fax:+86-21-66058391
Mobile/WhatsApp/Viber/Wechat: +86-13701803469
The warranty covers the Product, for one (1) year from the documented date of purchase.
We promise excellent service under the warranty:
1. We will send the new spare parts by air express, such as DHL or TNT once our customers request an urgent replace of broken parts under warranty
2. We will arrange engineers to service machinery overseas in case our customers are in need help for installation and training, such as tower cranes, concrete batching plant, asphalt mixing plant, stone crushing plant, etc.
3. We will send original spare parts by shipment or air express for option in case our clients want to purchase some other spare parts for repair and regular maintenance of their machines.
As a leading exporter specially for a big variety of construction equipment, Shanghai Dobest Construction Machinery Co., Ltd. is located in China's biggest port city Shanghai, which is also the financial center and business center.
Our mission is to provide a 'one-stop' service to fulfill our customers’ needs and expectations with the high quality product, prompt delivery and perfect service after sales. We promise to do our best to make our customers satisfied as we offer professional construction solutions for their kinds of projects.
By keeping the principle of good quality, competitive price, superior service, now we have won a very good reputation from all of our customers all over the world. Thus, our business expanded rapidly and so far we have exported our products to more than 20 countries and regions, including Australia, New Zealand, Brazil, Argentina, Honduras, Algeria, Tanzania, Kenya, Ethiopia, Djibouti, Congo, Morocco, UAE, Saudi Arabia, Iraq, Singapore, Thailand, Malaysia, Philippines and etc. Our market is mainly in Africa, South America, Middle East, South East Asia and some European countries.
We devote ourselves to provide a wide range of Chinese well-known construction equipment series to fulfill our customer’s different demands for their projects.
