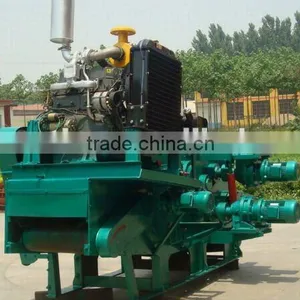

Drum Chipper

Weifang Haotian Farm Equipment Co., Ltd.
Drum Chipper thumbnail-1
Drum Chipper photo-1
Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Type:
powerself type
Use:
wood chip
Certification:
CE
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type powerself type
Use wood chip
Certification CE
Place of Origin Shandong, China
Brand Name FD
Model Number FD-40
Condition New

Specifications

The tree chipper or wood chipper is a machine used for reducing wood (generally tree limbs or trunks) into smaller parts

 Name:Drum Chipper BX-215(Enhanced, need base)

Thickness of steel:18-20mm

Bearings of main body:imported type

Main motor:45KW-4 (380Volts,50Hz and 3 phases)

Strength screw bolts:10.8-12.9 degree

Electrical control cabinet: standard type two step-down start

In feeding:4m conveyor belt

Out feeding:10m pattern conveyor belt

Number of cut blades:fly blades 2pcs,bottom blade 1pcs,Reserve cut blade 1pcs

Rotor speed:600 rpm

Diameter of infeeding open:<150mm

Speed of infeeding:38m/minute

Assistant power:7.4KW

Dimension of sieve pore:65*65mm

Dimension of chips:Length 25-35mm

Width 25-35mm,Thickness 3-8mm

Capacity:3-6 cubic meter per hour

Type of out feeding:Down out feed with base

Dimensions:1800*1800*1150mm

Weight:3120KG

Accessories and tools:attached in list
