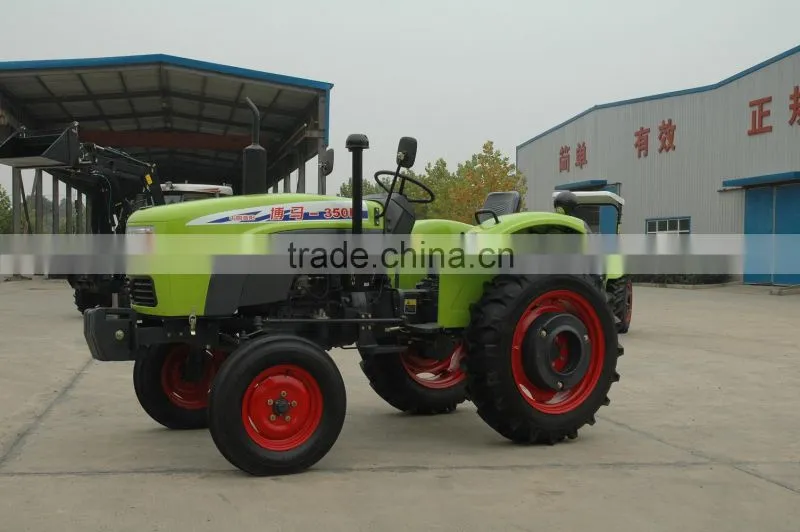

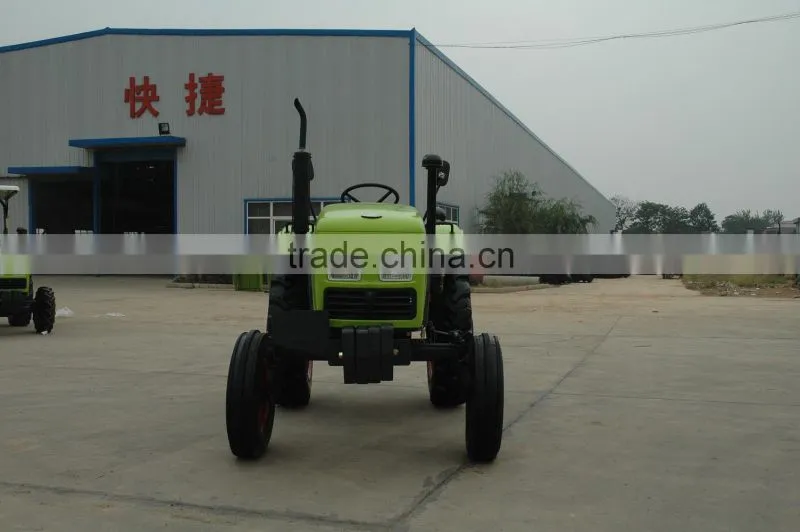

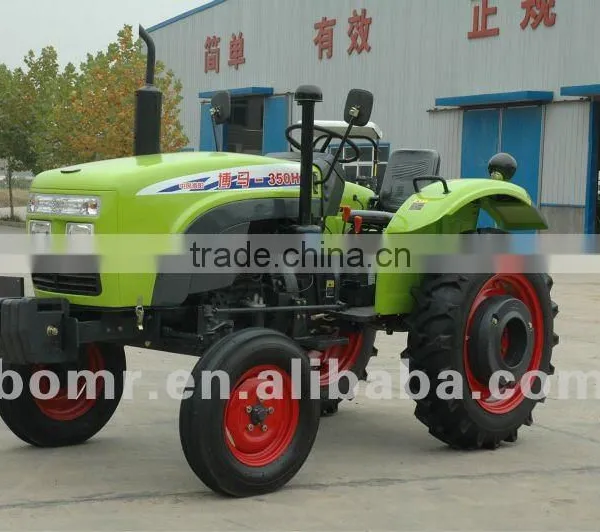

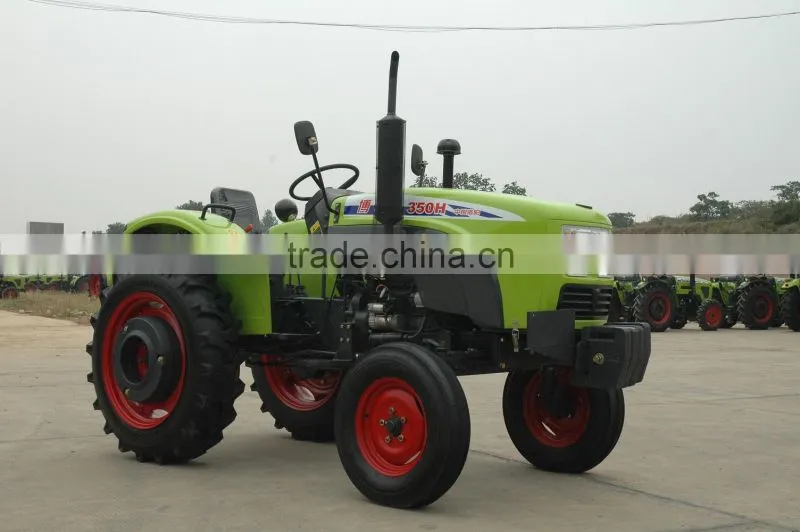

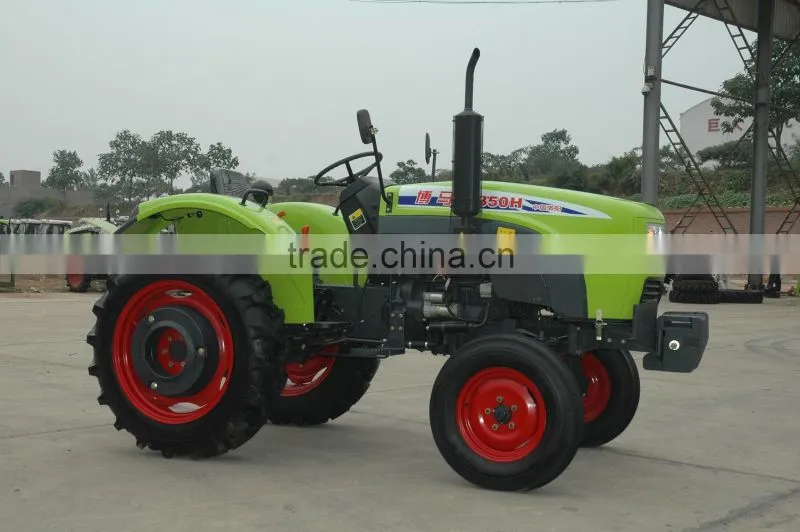

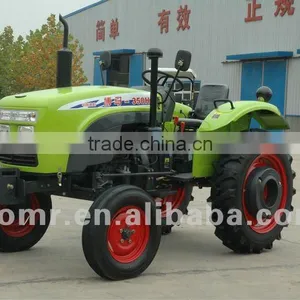

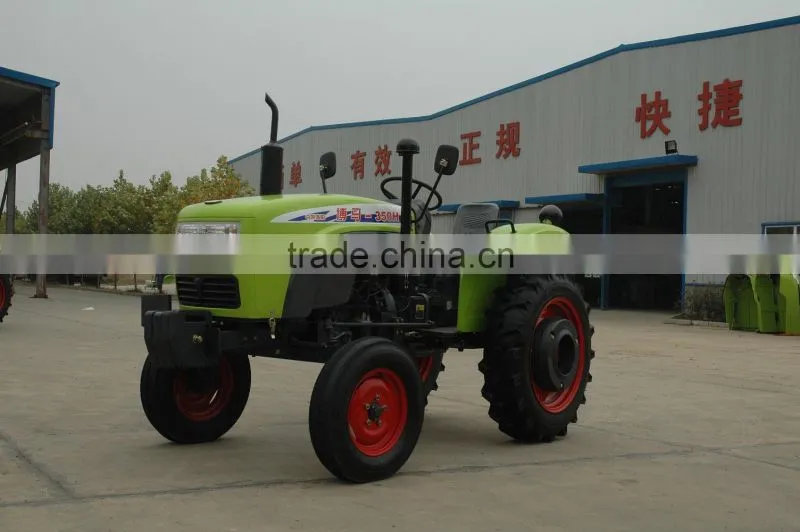

BOMR FIAT Gearbox tractor (350 High Ground Clearance)

Specifications

1. 8+2 shuttle shift
2. Italy fiat chassis
3.Increase 30% effiiciency
4.Save 25% of fuel

The characteristics of tractor from 25hp to 35hp

1. Semi-separation hydraulic lifters are using reliable. Lifter cylinder bore is 80mm (other companies are 75mm).
2. Final drive transmission use planetary reducer structure. Large transmission ratio, load bearing equality, stably transmission, little noise and long life using. ( the common size)
3. The ground clearance of High ground clearance tractors (B280H/ B 300H/B350H) is 150mm higher and better through performance than the common ones.
4. When you shifting or slowing down, the gear pump in the front is not affect the agricultural implements. It is satisfied with customer using tractor in the farm.
5. Wet disc brake is using stably ,reliably, and long time
6. The speed is 10%-27% higher than other same type tractor. It is high efficiency and saving fuel in the transport.
7. The tractor has pin-type differential locks; this can avoid single side slipping effectively when climbing the mountain or bridge slope. It drives quickly and strongly.
8. Air filter is 200-350mm taller than other same products. It can reduce engine troubles and keep sir clean when air through in.
9. The tractor’s lamps are more than other same products. It is more bright and safe when driving in the night.

 10.   The tractor’s hood has spring open structure. It’s convenient when opening hood.

 11.   Strainer is fit in the front of water tank; it can avoid hays and sundries to block up water tank. Strainer is convenient for loading or unloading and cleaning.

 12.   Front and rear wheel tread are adjustable. So our tractors are suitable for use in different farmland.











The main specification of bomr 30hp to 35hp tractor
Tractor Model		300	304	350	354
General Specification	Driver Type	4×2	4×4	4×2	4×4
	Length*width*Height(mm)	3545*1488*1922	3545*1488*1923	3545*1488*1924	3545*1488*1925
	Traction force(KN)	6.2	7.5	7.9	9.48
	Steering	Machanical	hydraulic	Machanical	hydraulic
	Wheel base(mm)	1634	1675	1755	1799
	Front wheel tread(mm)	1172-1472	1200	1172-1472	1200
	Rear wheel tread(mm)	1148-1448	1148-1448	1148-1448	1148-1448
	P.T.O.Max.Power(Kw)	18.8	18.8	21.8	21.8
	Ground clearance(mm)	320	260	360	280
Engine	Type	SL2105ABT2	SL2105ABT2	SL3100ABT2	SL3100ABT2
	Bore×Stroke(mm)	105*117	105*117	100*117	100*117
	Rated revolution (r/min)	2300	2300	2300	2300
	Max.torque(n.m)	≥114.2	≥114.2	≥131.8	≥131.8
	Speed of Max.torque r.p.m.	≤11725	≤11725	≤11725	≤11725
Transmission	Clutch	Single-stage clutch
	Gear box	8F+2R
Working device	Lifter tilling depth control	Power,bit-conditioning
	Max.lifting capacity( KN )	5	5	5.8	5.8
	Suspension type	Class 1  3-Point hitch
	Speed of P.T.O.(r/min)	stardard:540/720;optional:540/1000,720/1000
Notice:All above parameters are subject to change without notice because of rapid development of products.
