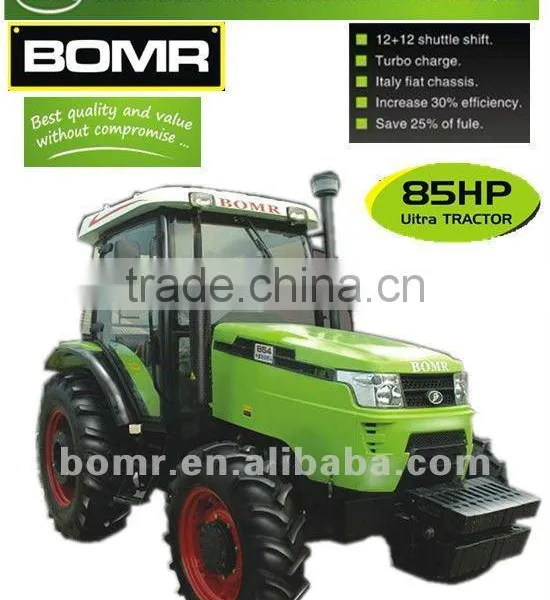

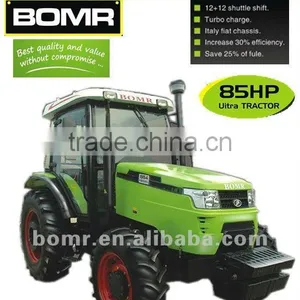

BOMR 2015 Tractor 85hp 4wd (854)
- 20000 Unit / Units per Month
- QINGDAO
- T/T
Product Details
Condition: | New | Type: | Wheel Tractor | By wheel: | 4WD |
Usage: | Farm Tractor | Certificate: | Other | Brand Name: | BOMR |
Model Number: | BOMR 854 | Place of Origin: | Henan, China |
Product Description
The characteristic of tractor from 70hp to 100hp
- Our tractors have YTO or Quanchai engine; the engine has the strong power and high quality.
- Gearbox has 12 forward shifts and 4 reverse shifts.
- The side shift control made the shifting more comfortable and humanistic.
- Gearbox and rear axle use engagement sleeve shift. Shifting flexibly and stably, never neutral
- Hydraulic steering system has independent oil circuit.
- Independent PTO shaft has so many speed of rotation to choose. For example, 540/760/850/1000. It can meet customer’s different requirements when using tractor in the farm.
- Pedal operated hydraulic driving brake system and hand shank operated mechanical parking brake system, made the brake system is safety and reliable.
- Force buried lifter (force, position comprehensive control and floating control) is using reliably and mending conveniently. Hydraulic system use oil separate structure, which has strong lifting capacity. It matches with many large agricultural implements.
- 1 or 2 pair hydraulic outputs can be chose. And air-brake can be chose.
10. Use 4 planetary wheeled differential, transmission stably and reliably.
11. Our tractor adopt underneath double diesel tank. The diesel tank’s volume is large, which reaches 150L. And it is satisfied with using tractors for long-time.
12. Reinforced 3 point-suspension postposition is stronger, using reliable and long life. The bottom tie rod can float
Product Parameters
The Main Specification of Bomr 80hp tractor | |||||
Tractor Model | BOMR800 | BOMR804 | BOMR850 | BOMR854 | |
General Specification | Driver Type | 4×2 | 4×4 | 4×2 | 4×4 |
Length×width×Height(mm) | 4520×1885×2450 | 4520×2170×2530 | 4520×1885×2450 | 4520×2170×2530 | |
Traction force(KN) | 14.9 | 17.6 | 15.5 | 18.7 | |
Steering | Hydraulic | Hydraulic | Hydraulic | Hydraulic | |
Wheel base(mm) | 2342 or 2353 | 2314 or 2325 | 2342 or 2353 | 2314 or 2325 | |
Front wheel tread(mm) | 1400-1900 | 1630-1960 | 1400-1900 | 1630-1960 | |
Rear wheel tread(mm) | 1500-2100 | 1520-2120 | 1500-2100 | 1520-2120 | |
P.T.O.Max.Power(Kw) | 53.1 | 53.1 | 56.3 | 56.3 | |
Ground clearance(mm) | 360 | 430 | 360 | 440 | |
Engine | Type | 4JR3AT80X | 4JR3AT80X | 4JR3AT85X | 4JR3AT85X |
Bore×Stroke(mm) | 108×135 | 108×135 | 108×135 | 108×135 | |
Rated revolution (r/min) | 2200 | 2200 | 2400 | 2400 | |
Max.torque(n.m) | 280 | 280 | 280 | 280 | |
Speed of Max.torque r.p.m. | 1500-1700 | 1500-1700 | 1500-1700 | 1500-1700 | |
Transmission | Clutch | Dual-stage clutch | |||
Gear box | 12F+4R | ||||
Working device | Hydraulic lifter tilling depth control | Forced buried | |||
Max.lifting capacity(KN) | 14.2 | 14.2 | 15 | 15 | |
Suspension type | Class 2 3-Point hitch | ||||
Speed of P.T.O.(r/min) | stardard;540/720;optional:540/1000,720/1000 | ||||
Notice:All above parameters are subject to change without notice because of rapid development of products. |
