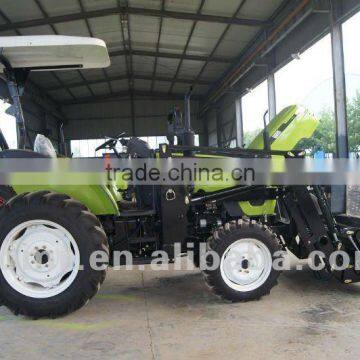

BOMR FIAT Gearbox agricultural diesel tractor (554 Rop+Sunroof)
- 20000 Unit / Units per Month
- QINGDAO
- T/T
You May Like
Product Details
Condition | New | Type | Wheel Tractor | |
By wheel | 4WD | Usage | Farm Tractor | |
Certificate | EPA | Brand Name | BOMR | |
Model Number | 554 | Place of Origin | Henan, China |
Product Description
Specifications
1. 12+12 shuttle shift2. Turbo charge
3. Italy fiat chassis
4. Increase 30% efficiency
5. Save 25% of fule
BOMR
The characteristic of tractor from 40hp to 60hp
- Our tractors have 16 shifts, 12 forward shifts and 4 reverse shifts. More shift, reasonable speed assign, have suitable economy shift, more saving fuel.
- Force buried lifter (force, position comprehensive control and floating control) is using reliably and mending conveniently. Lifters’ oil cylinder diameter is 100mm. The lift capacity can reach 1.4 tons.
- Gearbox and rear axle use engagement sleeve shift. Shifting flexibly and stably, never neutral.
- Basic unit include double acting clutch. When you shifting or slowing down, it is not affect operate the agricultural implements. It can meet customer’s different requirements when using tractor in the farm.
- More tractors’ lamps than other same products. It is more bright and safety when driving in the night.
- Strainer is fit in the front of water tank; it can avoid hays and sundries to block up water tank. Strainer is convenient for loading or unloading and cleaning
- Reinforced traction system, the height is adjustable.
8. Reinforced 3 point-suspension postposition is stronger, using reliable and long life. The bottom tie rod can float.
9. Final drive transmission use planetary reducer structure. Large transmission ratio, load bearing equality, stably transmission, little noise and long life using
10. Our power take-off has 3 types: 540/760r/min, 540/1000r/min,and 760/1000r/min . It has high efficiency.
11. Use national famous brand engine, (like Xinchai (40hp-50hp), Lijia (55hp-60hp) and Jiangdong Brand) and planetary reducer start motor. It starts well and driving strongly.
12. Front and rear wheel tread are adjustable. So our tractors are suitable for use in different farmland
.
The Main Specification of Bomr 50hp to 60hp tractor | |||||
Tractor Model | 550 | 554 | 600 | 604 | |
General Specification | Driver Type | 4×2 | 4×4 | 4×2 | 4×4 |
Length×width×Height(mm) | 3700×1645×2080 | 3700×1645×2065 | 3700×1645×2080 | 3700×1645×2065 | |
Traction force(KN) | 11.8 | 12.8 | 12.8 | 14 | |
Steering | hydraulic | hydraulic | hydraulic | hydraulic | |
Wheel base(mm) | 1955 | 2010 | 1955 | 2010 | |
Front wheel tread(mm) | 1330-1630 | 1250 | 1330-1630 | 1250 | |
Rear wheel tread(mm) | 1300-1600 | 1300-1600 | 1300-1600 | 1300-1600 | |
P.T.O.Max.Power(Kw) | 34.3 | 34.3 | 37.5 | 37.5 | |
Ground clearance(mm) | 400 | 300 | 400 | 300 | |
Engine | Type | SL4105ABT | SL4105ABT | SL4105ABT | SL4105ABT |
Bore×Stroke(mm) | 105×117 | 105×117 | 105×117 | 105×117 | |
Rated revolution (r/min) | 2300 | 2300 | 2300 | 2300 | |
Max.torque(n.m) | ≥209 | ≥209 | ≥220 | ≥220 | |
Speed of Max.torque r.p.m. | ≤1725 | ≤1725 | ≤1725 | ≤1725 | |
Transmission | Clutch | Dual-stage clutch | |||
Gear box | 12F+4R | ||||
Working device | Lifter tilling depth control | Forced buried | |||
Max.lifting capacity( KN ) | 9.1 | 9.1 | 9.9 | 9.9 | |
Suspension type | Class 1 3-Point hitch | ||||
Speed of P.T.O.(r/min) | stardard;540/720;optional:540/1000,720/1000 | ||||
Notice:All above parameters are subject to change without notice because of rapid development of products. |
