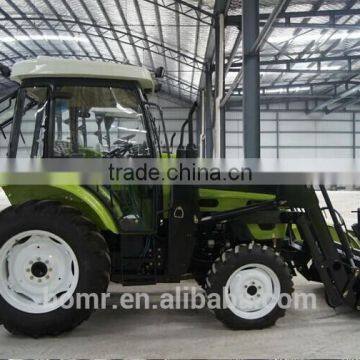

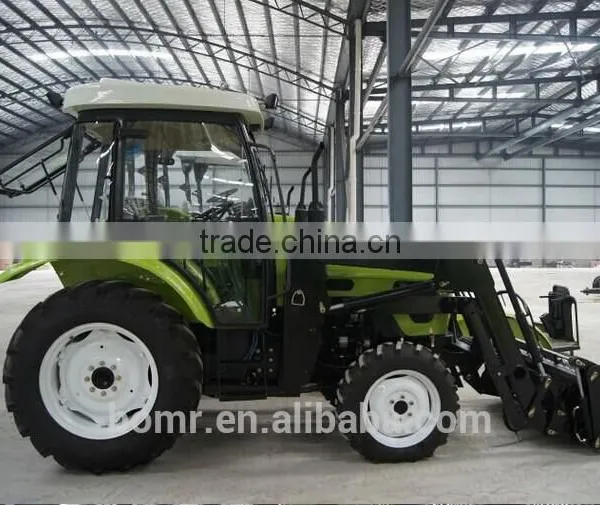

60 hp Tractor

Specifications

1.4WD, 60HP,Changchai Engine
2. 12F+4R shift Gear-box
3. Double disc clutch
4. Hydraulic steering
5. Category I rea

Gear box and rear axle will be collar shift, light and flexible, smooth and reliable and never out of gear.

1. 12 forward gears and 4 backward gears in proper speed arrangement. Proper and economic gear will save fuel.
2. Force lifter (power and position general control and float control) offers reliable use and easy maintenance. Lifter cylinder will be 100mm with great lifting power up to 1.4t.
3. Machine has compact structure with small axial distance for easy steering.
4. Double action clutch will not affect tool operation in shifting gear, satisfying field operation.
5. Wet disk brake (2 disks) is smooth and reliable with long service life.
6. Steering device will have full hydraulic steering, being light and flexible.
7. Maintenance free battery is installed with more convenience.
8. Bolt differential lock is installed in prevention of side sliding going up slope or in rainy day operation with superb mobility.
9. Space between front and back wheels is adjustable and suitable for farming requirement in different areas.
10. Full range models are available. Lighting is very effective and safe for driving in night.
11. Water tank has a large surface for radiation in proper arrangement without boiling.
12. Strengthened type with height adjustment.
13. Rear three point suspension, reinforced and reliable, down lever can be floated.

Improvement

1.   High technology Engine,with CE and EPA ,less noise pressure and low pollution.

2.    Metal cover is updated with electrophoresis in prevention to the maximum of rusting.

3.    Operation system has suspension peddle; side cover features automobile operation.

4.    Floating cat equipped with new operational system to enable optimized internal tightness; air conditioning or warm air for more comfort.

5.    Noise level is lower with the new cab and Euro III standard engine.

6.    Floating type cat greatly reduced vibration and make driving more comfortable.

The Main Specification of Bomr 45hp to 60hp tractor
Tractor Model		450	454	500	504	550	554	600	604
General Specification	Driver Type	4×2	4×4	4×2	4×4	4×2	4×4	4×2	4×4
	Length×width×Height(mm)	3700×1615×2200	3700×1615×2216	3700×1645×2230	3700×1645×2250	3700×1645×2080	3700×1645×2065	3700×1645×2080	3700×1645×2065
	Traction force(KN)	10	10.5	10.7	11.7	11.8	12.8	12.8	14
	Steering	hydraulic	hydraulic	hydraulic	hydraulic	hydraulic	hydraulic	hydraulic	hydraulic
	Wheel base(mm)	1940	1955	1940	1955	1955	2010	1955	2010
	Front wheel tread(mm)	1320-1620	1250	1330-1630	1250	1330-1630	1250	1330-1630	1250
	Rear wheel tread(mm)	1300-1600	1300-1600	1300-1600	1300-1600	1300-1600	1300-1600	1300-1600	1300-1600
	P.T.O.Max.Power(Kw)	28.1	28.1	31.3	31.3	34.3	34.3	37.5	37.5
	Ground clearance(mm)	380	300	400	300	400	300	400	300
Engine	Type	495BT	495BT	498BT	498BT	SL4105ABT	SL4105ABT	SL4105ABT	SL4105ABT
	Bore×Stroke(mm)	95×105	95×105	98×105	98×105	105×117	105×117	105×117	105×117
	Rated revolution (r/min)	2300	2300	2200	2200	2300	2300	2300	2300
	Max.torque(n.m)	≥169	≥169	≥203	≥203	≥209	≥209	≥220	≥220
	Speed of Max.torque r.p.m.	≤1725	≤1725	≤1650	≤1650	≤1725	≤1725	≤1725	≤1725
Transmission	Clutch	Dual-stage clutch
	Gear box	12F+4R
Working device	Lifter tilling depth control	Forced buried
	Max.lifting capacity( KN )	7.4	7.4	8.3	8.3	9.1	9.1	9.9	9.9
	Suspension type	Class 1  3-Point hitch
	Speed of P.T.O.(r/min)	stardard;540/720;optional:540/1000,720/1000
Notice:All above parameters are subject to change without notice because of rapid development of products.
