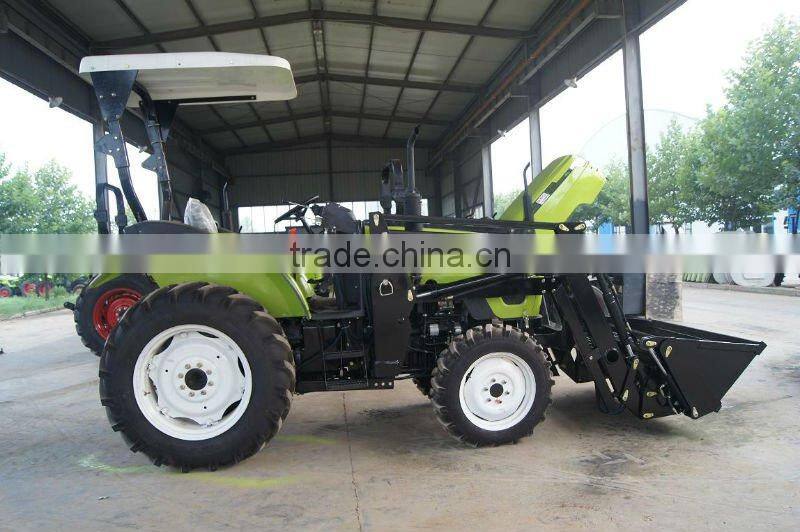

BOMR2012 New Tractor 45hp 2wd (450)

Specifications

1. 12+12 shuttle shift
2. Turbo charge
3. Italy fiat chassis
4. Increase 30% efficiency
5. Save 25% of fule

The characteristic of tractor from 40hp to 60hp

1. Our tractors have 16 shifts, 12 forward shifts and 4 reverse shifts. More shift, reasonable speed assign, have suitable economy shift, more saving fuel.
2. Force buried lifter (force, position comprehensive control and floating control) is using reliably and mending conveniently. Lifters’ oil cylinder diameter is 100mm. The lift capacity can reach 1.4 tons.
3. Gearbox and rear axle use engagement sleeve shift. Shifting flexibly and stably, never neutral.
4. Basic unit include double acting clutch. When you shifting or slowing down, it is not affect operate the agricultural implements. It can meet customer’s different requirements when using tractor in the farm.
5. More tractors’ lamps than other same products. It is more bright and safety when driving in the night.
6. Strainer is fit in the front of water tank; it can avoid hays and sundries to block up water tank. Strainer is convenient for loading or unloading and cleaning
7. Reinforced traction system, the height is adjustable.

  8.     Reinforced 3 point-suspension postposition is stronger, using reliable and long life. The bottom tie rod can    float.

  9.     Final drive transmission use planetary reducer structure. Large transmission ratio, load bearing equality, stably transmission, little noise and long life using

 10.   Our power take-off has 3 types: 540/760r/min, 540/1000r/min,and 760/1000r/min . It has high efficiency.

 11.   Use national famous brand engine, (like Xinchai (40hp-50hp), Lijia (55hp-60hp) and Jiangdong Brand) and planetary reducer start motor. It starts well and driving strongly.

 12.   Front and rear wheel tread are adjustable. So our tractors are suitable for use in different farmland









BOMR



.

The Main Specification of Bomr 50hp to 60hp tractor
Tractor Model		550	554	600	604
General Specification	Driver Type	4×2	4×4	4×2	4×4
	Length×width×Height(mm)	3700×1645×2080	3700×1645×2065	3700×1645×2080	3700×1645×2065
	Traction force(KN)	11.8	12.8	12.8	14
	Steering	hydraulic	hydraulic	hydraulic	hydraulic
	Wheel base(mm)	1955	2010	1955	2010
	Front wheel tread(mm)	1330-1630	1250	1330-1630	1250
	Rear wheel tread(mm)	1300-1600	1300-1600	1300-1600	1300-1600
	P.T.O.Max.Power(Kw)	34.3	34.3	37.5	37.5
	Ground clearance(mm)	400	300	400	300
Engine	Type	SL4105ABT	SL4105ABT	SL4105ABT	SL4105ABT
	Bore×Stroke(mm)	105×117	105×117	105×117	105×117
	Rated revolution (r/min)	2300	2300	2300	2300
	Max.torque(n.m)	≥209	≥209	≥220	≥220
	Speed of Max.torque r.p.m.	≤1725	≤1725	≤1725	≤1725
Transmission	Clutch	Dual-stage clutch
	Gear box	12F+4R
Working device	Lifter tilling depth control	Forced buried
	Max.lifting capacity( KN )	9.1	9.1	9.9	9.9
	Suspension type	Class 1  3-Point hitch
	Speed of P.T.O.(r/min)	stardard;540/720;optional:540/1000,720/1000
Notice:All above parameters are subject to change without notice because of rapid development of products.
