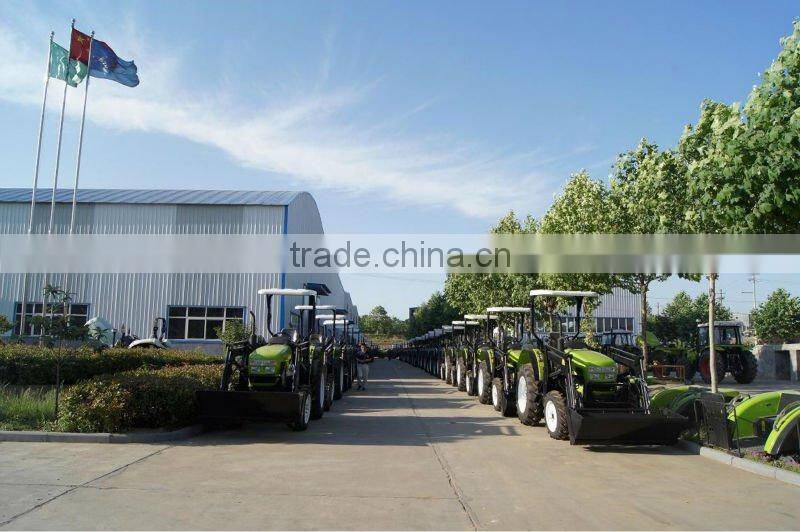

BOMR FIAT Gearbox Diesel Wheeled Tractor (504 Front End Loader)

BOMR FIAT Gearbox Diesel Wheeled Tractor (504 Front End Loader) thumbnail-1
BOMR FIAT Gearbox Diesel Wheeled Tractor (504 Front End Loader) photo-1
Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Wheel Tractor
By wheel:
4WD
Contact Supplier Request Quote Chat Now
Luoyang Boma Agricultural Engineering Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Wheel Tractor
By wheel 4WD
Usage Farm Tractor
Certificate Other
Brand Name BOMR
Model Number 504
Place of Origin Henan, China

Specifications

1. 12+12 shuttle shift
2. Turbo charge
3. Italy fiat chassis
4. Increase 30% efficiency
5. Save 25% of fule

BOMR 50 Series tractors:



 Gear box and rear axle will be collar shift, light and flexible, smooth and reliable and never out of gear.

  1. 12 forward gears and 4 backward gears in proper speed arrangement. Proper and economic gear will save fuel.
  2. Force lifter (power and position general control and float control) offers reliable use and easy maintenance. Lifter cylinder will be 100mm with great lifting power up to 1.4t.
  3. Machine has compact structure with small axial distance for easy steering.
  4. Double action clutch will not affect tool operation in shifting gear, satisfying field operation.
  5. Wet disk brake (2 disks) is smooth and reliable with long service life.
  6. Steering device will have full hydraulic steering, being light and flexible.
  7. Maintenance free battery is installed with more convenience.
  8. Bolt differential lock is installed in prevention of side sliding going up slope or in rainy day operation with superb mobility.
  9. Space between front and back wheels is adjustable and suitable for farming requirement in different areas.
  10. Full range models are available. Lighting is very effective and safe for driving in night.
  11. Water tank has a large surface for radiation in proper arrangement without boiling.
  12. Strengthened type with height adjustment.
  13. Rear three point suspension, reinforced and reliable, down lever can be floated.

Improvement

1.   High technology Engine,with CE and EPA ,less noise pressure and low pollution.

2.    Metal cover is updated with electrophoresis in prevention to the maximum of rusting.

3.    Operation system has suspension peddle; side cover features automobile operation.

4.    Floating cat equipped with new operational system to enable optimized internal tightness; air conditioning or warm air for more comfort.

5.    Noise level is lower with the new cab and Euro III standard engine.

6.    Floating type cat greatly reduced vibration and make driving more comfortable.

The Main Specification of Bomr 45hp to 60hp tractor
Tractor Model 450 454 500 504 550 554 600 604
General Specification Driver Type 4×2 4×4 4×2 4×4 4×2 4×4 4×2 4×4
Length×width×Height(mm) 3700×1615×2200 3700×1615×2216 3700×1645×2230 3700×1645×2250 3700×1645×2080 3700×1645×2065 3700×1645×2080 3700×1645×2065
Traction force(KN) 10 10.5 10.7 11.7 11.8 12.8 12.8 14
Steering hydraulic hydraulic hydraulic hydraulic hydraulic hydraulic hydraulic hydraulic
Wheel base(mm) 1940 1955 1940 1955 1955 2010 1955 2010
Front wheel tread(mm) 1320-1620 1250 1330-1630 1250 1330-1630 1250 1330-1630 1250
Rear wheel tread(mm) 1300-1600 1300-1600 1300-1600 1300-1600 1300-1600 1300-1600 1300-1600 1300-1600
P.T.O.Max.Power(Kw) 28.1 28.1 31.3 31.3 34.3 34.3 37.5 37.5
Ground clearance(mm) 380 300 400 300 400 300 400 300
Engine Type 495BT 495BT 498BT 498BT SL4105ABT  SL4105ABT  SL4105ABT SL4105ABT
Bore×Stroke(mm) 95×105 95×105 98×105 98×105 105×117 105×117 105×117 105×117
Rated revolution (r/min) 2300 2300 2200 2200 2300 2300 2300 2300
Max.torque(n.m) ≥169 ≥169 ≥203 ≥203 ≥209 ≥209 ≥220 ≥220
Speed of Max.torque r.p.m. ≤1725 ≤1725 ≤1650 ≤1650 ≤1725 ≤1725 ≤1725 ≤1725
Transmission Clutch Dual-stage clutch
Gear box 12F+4R
Working device Lifter tilling depth control Forced buried
Max.lifting capacity( KN ) 7.4 7.4 8.3 8.3 9.1 9.1 9.9 9.9
Suspension type Class 1  3-Point hitch
Speed of P.T.O.(r/min) stardard;540/720;optional:540/1000,720/1000
Notice:All above parameters are subject to change without notice because of rapid development of products.
