BOMR1204 Tractor With Sunroof

1. 12+4 shift gearbox
2. Turbo charge
3. Italy fiat chassis
4. Increase 30% efficiency
5. Save 25% of fule

The characteristic of tractor from 110hp to 130hp
1.YTO engine, the engine has the strong power and high quality.
2.Gearbox has 12 forward shifts and 4 reverse shifts.
3.Gearbox and rear axle use engagement sleeve shift. Shifting flexibly and stably, never

neutral
4.Hydraulic steering system has independent oil circuit.
5.Independent PTO shaft has so many speed of rotation to choose. For example,

540/760/850/1000. It can meet customer’s different requirements when using tractor in the

farm.
6.Pedal operated hydraulic driving brake system and hand shank operated mechanical parking

brake system, made the brake system is safety and reliable.
7.Force buried lifter (force, position comprehensive control and floating control) is using

reliably and mending conveniently. Hydraulic system use oil separate structure, which has

strong lifting capacity. It matches with many large agricultural implements.
8.1 or 2 pair hydraulic outputs can be chose. And air-brake can be chose.
9.Use 4 planetary wheeled differential, transmission stably and reliably.
10.   Our tractor adopt underneath abnormal fuel tank. The tank’s volume is large. It

reaches 230L. And it is satisfied with using tractors for long-time.
11.   Reinforced 3 point-suspension postposition is stronger, using reliable and long life.

The bottom tie rod can float.

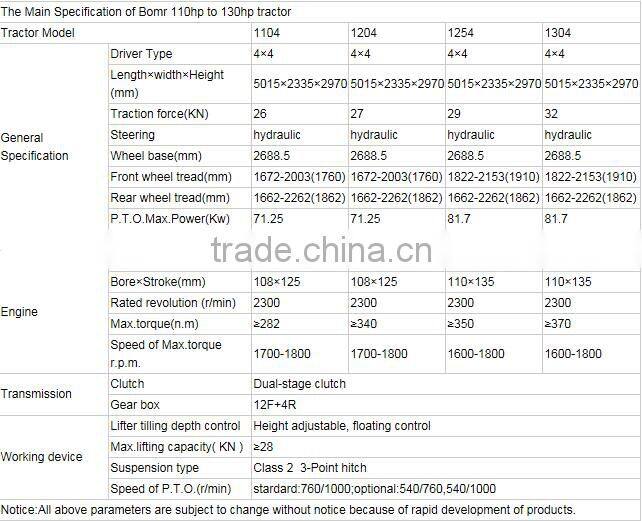

Technical Parametes

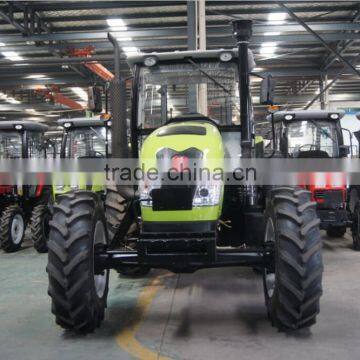

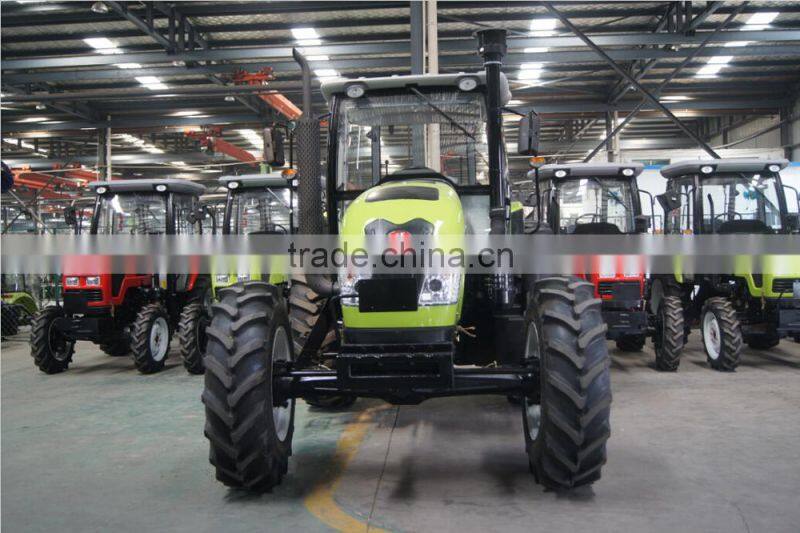

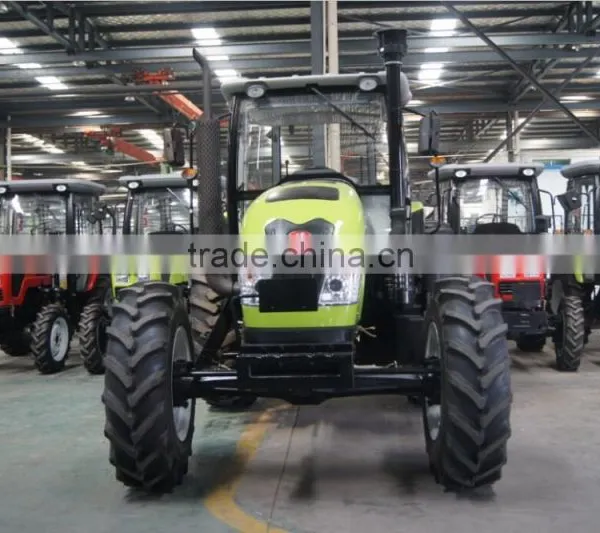

Product Pictures
