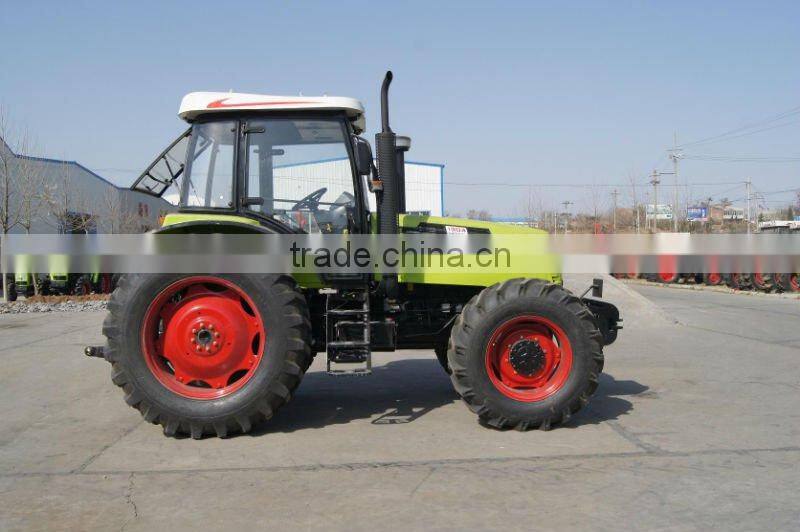

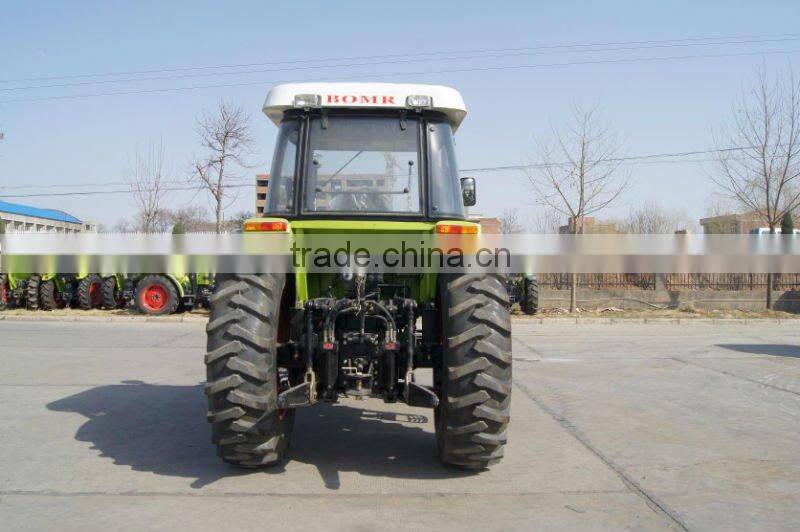

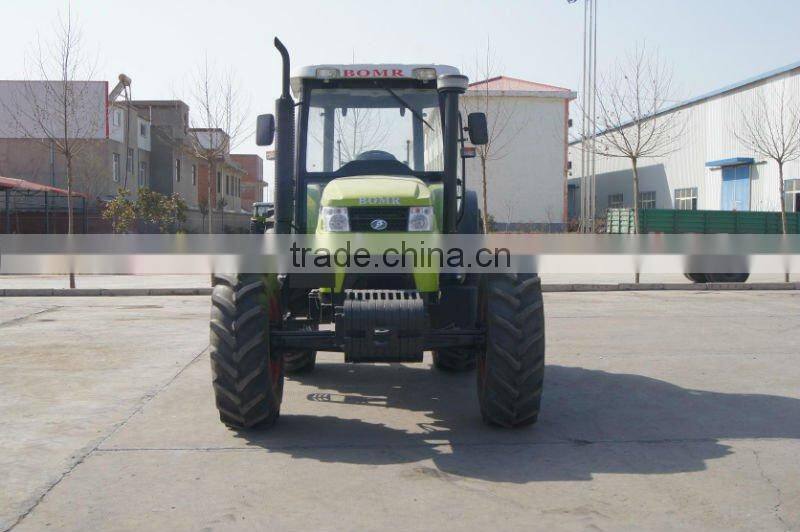

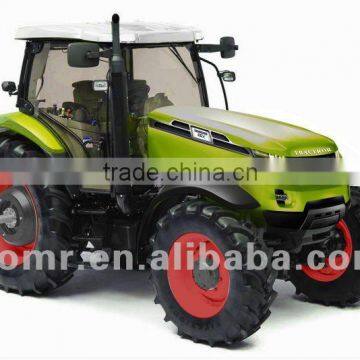

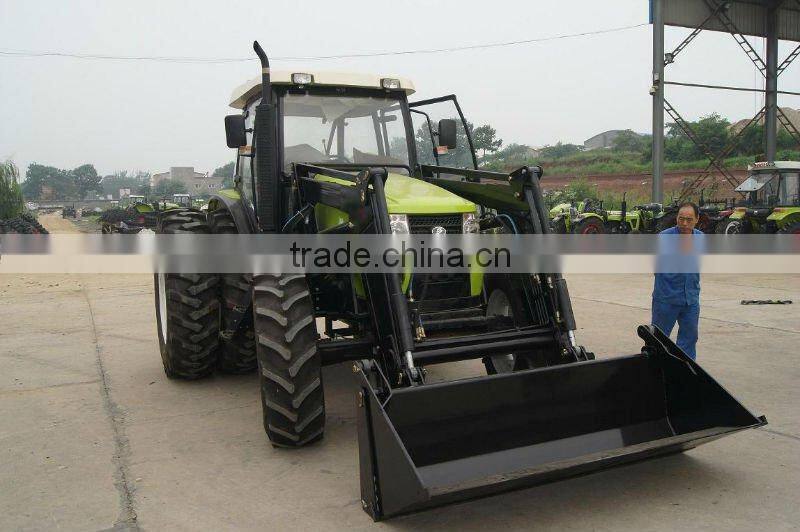

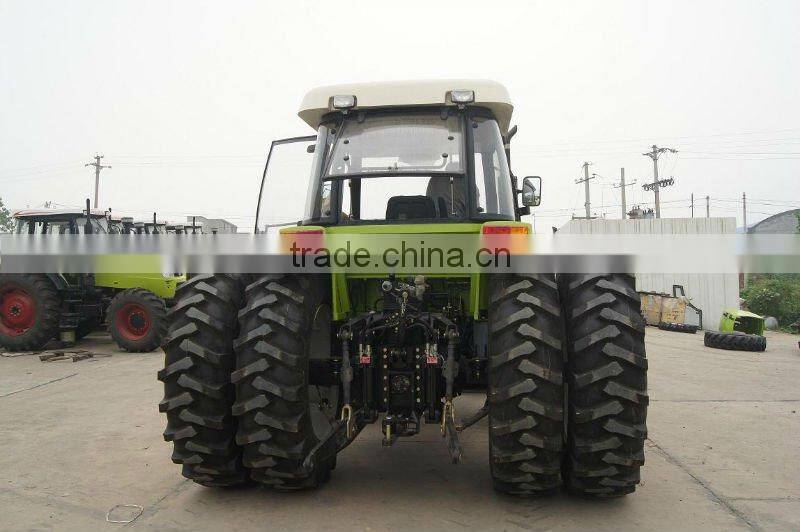

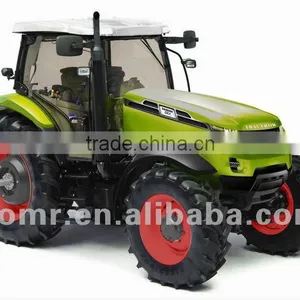

FIAT GEARBOX TRACTOR 30HP 50HP 90HP 130HP FARM TRACTOR

Specifications

1. Italy FIAT Chassis
2. 12F+12R shuttle shift
3. Turbo charge engine
4. Increase 30% efficiency
5. Save 25% fuel

Tractor characteristics:

1. QC diesel engine is equipped with HT DI cylinder and large diameter for powerful driving.
2. LUK14 double action clutch from Germany is installed for independent operation.
3. Full hydraulic steering system with smaller turning radius, being flexible and reliable.
4. Combination 4×(2+1)×2 gear box having 16 forward gears and 8 backward gears for easy operation and higher efficiency.
5. The main gear shift adopts synchronizer-shift to reduce impact to gear to the maximum and thus, effectively elongated gear service life, range shift adopted tooth shift. The proper matching has guaranteed gear box’s best use and optimized cost performance ratio.
6. CARRARO front axle from Italy is used with advanced structure and superb performance.
7. Independent hydraulic fuel system with high reliability.
8. Strengthened chasis having great extension capacity and high reliability.
9. Intensified pressured lifter may be optimal with higher lifting, better operation and high reliability.
10. Carbon fiber composite material is used for driving cab and covers with tensile strength 8 times of steel and gravity 1/4 of steel. The material durability is great for 20 years without color change. Stiffness is also very high in that restoration of shape can be realized after forceful impact.
11. Humanized Euro style appearance with full glass view and air tight driving cab. Air conditioning and sound system will be optimal.



The Main Specification of Bomr 110hp to 130hp tractor
Tractor Model		1104	1204	1254	1304
General Specification	Driver Type	4×4	4×4	4×4	4×4
	Length×width×Height(mm)	5015×2335×2970	5015×2335×2970	5015×2335×2970	5015×2335×2970
	Traction force(KN)	26	27	29	32
	Steering	hydraulic	hydraulic	hydraulic	hydraulic
	Wheel base(mm)	2688.5	2688.5	2688.5	2688.5
	Front wheel tread(mm)	1672-2003(1760)	1672-2003(1760)	1822-2153(1910)	1822-2153(1910)
	Rear wheel tread(mm)	1662-2262(1862)	1662-2262(1862)	1662-2262(1862)	1662-2262(1862)
	P.T.O.Max.Power(Kw)	71.25	71.25	81.7	81.7
	Ground clearance(mm)	465	465	465	465
Engine	Type		LR6108T1		LRC6110T52
	Bore×Stroke(mm)	108×125	108×125	110×135	110×135
	Rated revolution (r/min)	2300	2300	2300	2300
	Max.torque(n.m)	≥282	≥340	≥350	≥370
	Speed of Max.torque r.p.m.	1700-1800	1700-1800	1600-1800	1600-1800
Transmission	Clutch	Dual-stage clutch
	Gear box	12F+4R
Working device	Lifter tilling depth control	Height adjustable, floating control
	Max.lifting capacity(KN)	≥28
	Suspension type	Class 2  3-Point hitch
	Speed of P.T.O.(r/min)	stardard:760/1000;optional:540/760,540/1000
Notice:All above parameters are subject to change without notice because of rapid development of products.
