Home > Transportation > Tractor & Parts > Tractor > BOMR Wheeled Tractor 4WD 130hp New Green Tractor Hot Sale

BOMR Wheeled Tractor 4WD 130hp New Green Tractor Hot Sale

Luoyang Boma Agricultural Engineering Machinery Co., Ltd.
BOMR Wheeled Tractor 4WD 130hp New Green Tractor Hot Sale thumbnail-1
BOMR Wheeled Tractor 4WD 130hp New Green Tractor Hot Sale thumbnail-2
BOMR Wheeled Tractor 4WD 130hp New Green Tractor Hot Sale thumbnail-3
BOMR Wheeled Tractor 4WD 130hp New Green Tractor Hot Sale thumbnail-4
BOMR Wheeled Tractor 4WD 130hp New Green Tractor Hot Sale thumbnail-5
BOMR Wheeled Tractor 4WD 130hp New Green Tractor Hot Sale thumbnail-6
BOMR Wheeled Tractor 4WD 130hp New Green Tractor Hot Sale photo-1
BOMR Wheeled Tractor 4WD 130hp New Green Tractor Hot Sale photo-2

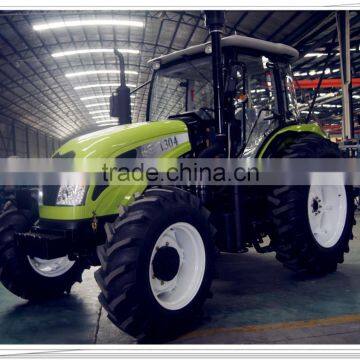

BOMR Wheeled Tractor 4WD 130hp New Green Tractor Hot Sale photo-3
BOMR Wheeled Tractor 4WD 130hp New Green Tractor Hot Sale photo-4
BOMR Wheeled Tractor 4WD 130hp New Green Tractor Hot Sale photo-5
BOMR Wheeled Tractor 4WD 130hp New Green Tractor Hot Sale photo-6
US$ 26,000 - 40,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Wheel Tractor
By wheel:
4WD
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Wheel Tractor
By wheel 4WD
Usage Farm Tractor
Drive Type Gear Drive
Power(W) 95.6kw/130hp
Certificate Other
Brand Name BOMR
Model Number BOMR-1304
Place of Origin Henan, China
After-sales Service Provided Engineers available to service machinery overseas
Product Description

1.Domestic famous diesel engine

2.13 inch LUK clutch

3.12F+4R synchronizer shift

4.Adjustable steering wheel, optional luxurious cabin, double warning flasher, new type door lock, rain resist


5.wiper front water spraying, luxurious comfortable seat, optional DVD reverse image, air condition

6.Front halogen light, LED turning auxiliary lighting, daytime running light, reversing alert, multi functional


bined dashboard.

8.Two pairs of hydraulic output, desert air filter, entire or separate traction, rear quickdraw hanging

9.Adjustable forced separate external double cylinder lifter

10.New style right side centralized control, new type combined dashboard

11.LUK double action clutch, more reliable usage

12.Domestic famous engine, strong power, low fuel consumption

13.Reliable rear axle design

14.Advanced reliable gearbox, synchronized shift


Models
BOMR-1304
                                                                                                                                                                                                                                                                                                                                                                                                  General  Parameter
Overall dimensions(L*W*H)(mm)
5040*2285*3040
Wheelbase(mm)
2688.5
Front wheel track(mm)
1822~2153
Rear Wheel Track (mm)
1662-2262
Drive type
4 WD
Ground Clearance (mm)
485
Rated Traction Force (kN)
32
Min. use weight (Kg)
4910
Min. Turning Radius (m)
6.3-0.3  to  6.3+0.3
Speed range(km/h)
2.34 - 30.55
                                                                                                                                                                          Diesel Engine
Model
LR6M5-23
Type
6 Cylinder , 4-Stoke Cycle Water Cooled,Vertical aligned
Rated Power (kw/hp)
95.6kw/130HP
Rated Speed (rpm)
2300
Bore x Stroke (mm)
110*135
Rated fuel consumption rate
≤242 (g/Kw.h)
                                               Gearbox  System
Gearbox
12F+4R
Speed range (km/h)
2.34-30.55
                                                                                                                                                                   Working  Device
Oil fuel tank
230 L
Lifting Capacity (at 610 mmBehind LiftPoint (N))
≥22.9kN
Hydraulic System
3-Point Suspension
P.T.O shaft : Rotating Speed (rpm)
540/1000 r/min
Spline Size
6-Ø35 Rectangular Spline
Service
Best service is provided and tractor parts is available
Strong advantage
1.   Domestic famous engines, strong driving force, low fuel consumption, high economic benefits

2.  12F+4R sliding sleeve shift, reasonable speed configuration and good adaptability

3.  Fashionable and streamline hood, beautiful and elegant shape
4.  Flat floor, hanging pedal, right side control, humanity design, comfortable operation, easy adjustment

5.  540/1000r/min double speed PTO, wide range of matched implements
6.  Adjustable forced lifter, good effects of rotary tillage and plough
7.  230L bigger size fuel tank, longer working time
8.  Multi pairs of hydraulic output can satisfy the diversified implements work.
9.  Optional air condition and heater cabin

Certifications
Detailed Images

Workshop:

* 40000 m2  large space area

* Advanced equipment and facilities

* Skilled workers




Parts:

* Use  professional parts and components

* Rich accessory library, can provide optional devices

Technology

* Professional technical team

* At any time to provide you with excellent technical services

Our Service

    12 months is from the date of commissioning, or at the latest, 12 months from delivery.

Packing & Delivery
Our campany

BOMR is China's leader in tractor sales,service spare's,equipment and implements.

We proudly stand by our motto"Best quality and value without compromise"
