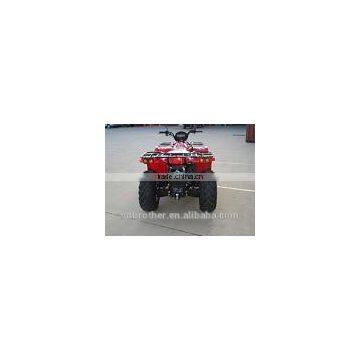

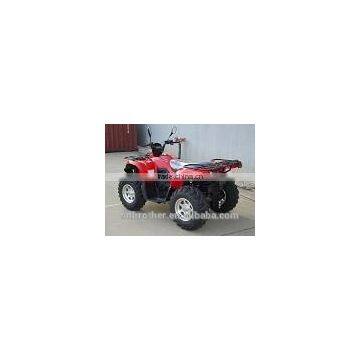

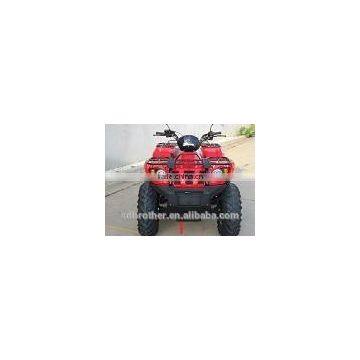

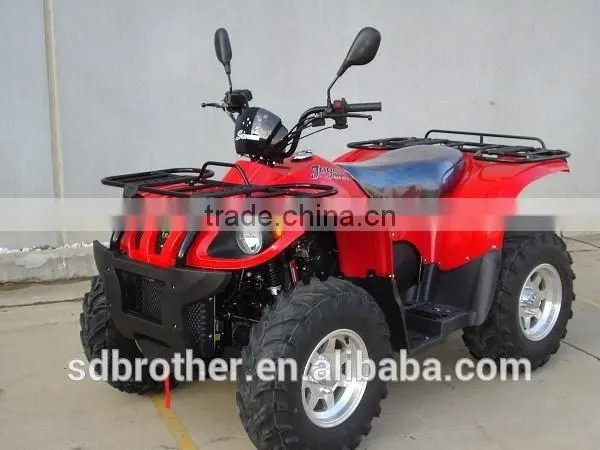

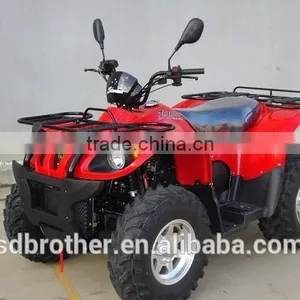

ATV QUAD 500cc ATV 2WD 4WD(4X4,4X2) with EEC

Name: ATV QUAD 500cc ATV 2WD 4WD(4X4,4X2) with EEC
Brand: shougong
Price: USD $3,000 - 3,500 / Set

FOB Price

USD $3,000 - $3,500 / Set

1 Set(Min.Order)

Supply Ability 5000 Set / Sets per Month
Port qingdao

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Fuel:	Gas / Diesel	Engine Type:	4 Stroke
Transmission Type:	Automatic	Transmission System:	Chain Drive	Certification:	ECE
Brand Name:	shougong	Place of Origin:	Shandong, China	Model Number:	SG500

Packaging Details

20FCL : 10PCS 40HQ :22PCS

Product Description

Specifications

Powered by a Torquey 500cc liquid cooled engine coupled with a heavy duty CVT transmission, Hi and Low Ratio in 4x4 as well as 2

NEW MODEL 2014

GENERAL	SUSPENSION/BRAKES

Mass : 360kg	Shaft Driven Front & Rear Diffs
Length : 2020mm	Electrically Controlled Front Diff Lock
Width : 1150mm	Electrically Controlled 2x2 - 4x2 Selection
Height (top of bars) : 1200mm	Independent Front & Rear Suspension
Seat Height : 980mm	Adjustable Front & Rear Shocks
Ground Clearance : 250mm	Front & Rear Disc Brakes

ENGINE	TRANSMISSION

500cc Single Cylinder 4 Stroke	CVT Automatic (2x2) (4x4)
Output Power : 22kw 30hp	High/Low Range
Torque : 42nm/5000 rpm	Shift R-N-L-H (Hand Operated)
Lubrication : Force Fed/Oil Pump
Cooling : Liquid/Thermo Fan	TYRES
Ignition : CDI
Starting : Electric	Front : 25x8x12
Fuel : 90 Unleaded	Rear : 25x10x12
Choke : Manual
	INCLUDED ACCESSORIES
CAPACITIES
	Alloy Wheels
Fuel Tank : 18ltrs	Owners Manual/Tool Kit
Engine Oil : 10w30 (2.5 Ltrs)	Front & Rear Carry Racks
Front Diff : 85w/90 (1.3ltrs)	Front Protection Bar
Rear Diff : 85w/90 (1.3ltrs)	Tow Hitch
	2,500lb Winch
OPTIONAL ACCESSORIES	Rear Vision Mirrors
	Head/Tail & Indicator Lights
Rear Protection Bar	Speedo/Odometer
Two Seater Model	Fuel & Temperature Gauges
	Ignition Key With Locking Fuel Cap
COLOURS	Steering Lock
	12 V Accessory Power Supply

The combination of independent front and rear suspension, adjustable hydraulic shocks, front and rear disc brakes with light steering and an excellent turning circle makes the Jaguar 500 one of the best performing and user friendly QUADs available.

All Jaguar 500's are now fitted with alloy wheels, 6ply tyres, 2500lb electric winch, full length underbody protection as well as upgraded Donaldson Air Cleaners standard.

Several well priced options are available including a Rear /Protection Frame and Rear Rack ABS Carry Box.

Also available is an extended chassis 2 person model with pillion back rest and rear protection bar as standard.

Our after sales service, spare parts availability and pricing are second to none.
