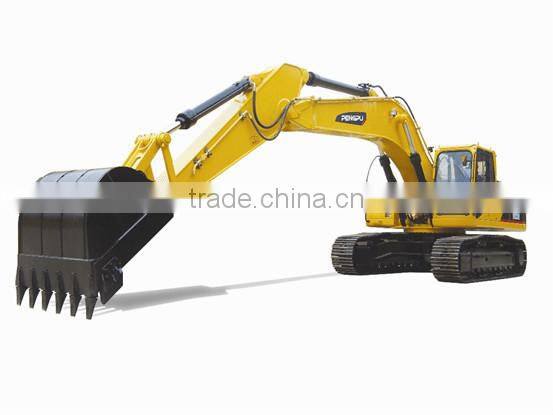

SW460E Excavators

Name: SW460E Excavators
Brand: Pengpu
SKU: 140733820
Availability: InStock

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Shanghai, China

Brand Name:

Pengpu

Model Number:

SW460E

Hk Mingyang International (group) Co., Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai/Tianjin/Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shanghai, China

Brand Name Pengpu

Model Number SW460E

Condition New

Moving Type Crawler Excavator

Operating Weight 33400 kg

Bucket capacity 1.45 m3

Maximum Digging Height 10390 mm

Maximum Digging Depth 7490 mm

Machine Weight 33400 kg

Max Digging Radius 11220 mm

Rated Speed 3.1/4.5 km/h

Certification ISO9001 Certification

After-sales Service Provided Engineers available to service machinery overseas

SW460E Excavators

Time of warranty is one year or 2000 hours, whichever occurs first.

This price does not include the engineer working overseas charge.

SW460E EXCAVATOR SPECIFICATION

NO.	DESCRIPTION			SPECIFICATON
1	Main machine
	(1)	Working weight			45500kg
	(2)	Bucket capacity			2.1M3
	(3)	Track width			600mm
	(4)	Transport dimension			1201034903458mm
	(5)	Overall dimension	Length of track on ground		4033mm
			Length of track		5051mm
			Ground clearance of counter weight		1373mm
			Tail swing radius		3600mm
			Track gauge		2740mm
			Min. ground clearance		725mm
			Track height		1205mm
			Top width		2995mm
	(6)	Working range	Max. working radius		11945mm
			Max. digging depth		7490mm
			Max. digging height		10960mm
			Max. vertical digging depth		7040mm
			Max. dump height		7700mm
			Min. swing radius		4033mm
	(7)	Performance	Ground pressure		85.9Kpa
			Swing speed		8.7r/min
			Traveling speed high/low		5.0/3.0km/h
			Grade ability		70°
	(5)	Engine	Company		CUMMINS QSM11-335
			Type		6 cylinder, inline, turbocharged and after-cooler
			Rated horsepower		274KW/1800rpm
	(6)	Main hydraulic pump	Company		KAWASAKI
			Max. delivery		2*360L/min
			Pump type		2*variable flow axial piston pump+1 gear pump
			Method of power adjustment		Gross power adjustment + variable power + negative flow control
	(7)	Swing motor	Company		KAWASAKI
	(7)	Swing motor	Type		2*fixed flow axial piston motor
	(8)	Travel motor	Company		ITALY BONFIGLIOLI
			Type		2*variable flow axial piston motor
			Bucket digging force		≥265N
			Rod crowed force		≥205KN
	(13)	Driving cab	Cab		Imported cab, SAE certificate
			Air-conditioner		Jiangsu chuang dao
			Seat		Britain KAB
			Instrument panel		hour meter, engine revolution, oil temperature, water temperature, oil pressure.
	(14)	Electric instrument	Power		24V
			Company		XUZHOU KANG DA
			Battery		VARTA 160A.H
