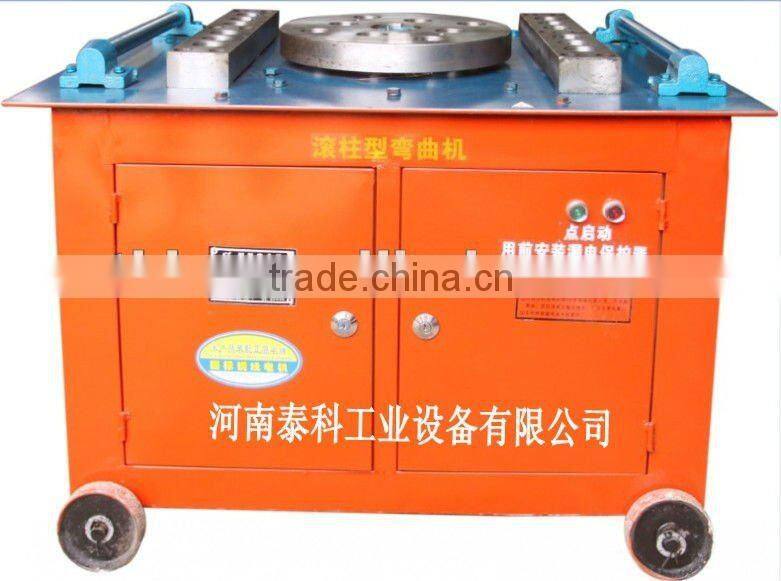

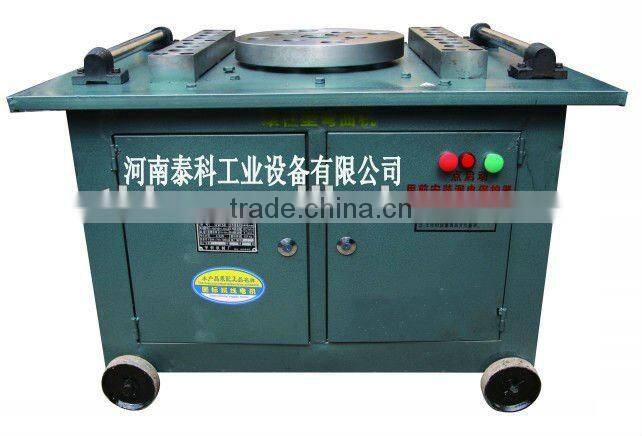

Deformed steel bending machine
- 50000 Set / Sets per Month
- Qingdao or Shanghai
- 10mm hot press brake bending machine for brake pad
- Custom bending press brake and shearing machine
- Square steel tube press brake machine for making gutters
- CNC hydraulic press brake steel bar cutting and bending machine
- Crank type bending machine heavy duty press brake 125t 3200
- 6 axes cnc press brake machine hydraulic for making gutters ceramic
Product Details
Place of Origin: | Henan, China | Brand Name: | TECK | Model Number: | GW50 |
Machine Type: | Beading Machine | Raw Material: | Steel Bar | Material / Metal Processed: | Stainless Steel |
Power: | Cnc | Automation: | Automatic | Certification: | ISO 9001:2000 |
Product Description
**Mainly technical parameters:
*GW 50
Bending diameter: Round steel φ10 to 50mm
Level II deformed steel: φ8 to 36mm
Diameter of working disc: φ400-380mm
Speed of working disc: 14r/min (low speed: 7r/min)
Motor power: 4KW
Overall size: 1120x890x850mm
Gross weight: 400KG
*GW 50A(heavy duty)
Bending diameter: Round steel φ10 to 50mm
Level II deformed steel: φ6 to 36mm
Diameter of working disc: φ400-380mm
Speed of working disc: 14r/min (low speed: 7r/min)
Motor power: 4KW
Overall size: 1120x890x850mm
Gross weight: 400KG
This product are widely used in bridges, tunnels and other giant construction projects. It can be used automatically or manually, Just following workers' usage habits. The work pole with bolt at one end can be adjusted to make the bending angle more accurate. Otherwise, It is easy operation, safty and reliability as well as stable.
**Products:
Contact Us
- Henan Taike Industrial And Equipment Co., Ltd.
- Contact nameNick Wu
- Phone86-371-86060912
- AddressCBD Zhengdong New District, Zhengzhou,Henan
