Home > Transportation > Truck > Dump Truck > North Benz 20-30T 6x4 Dump Truck

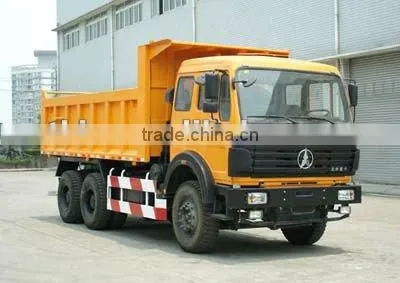

North Benz 20-30T 6x4 Dump Truck

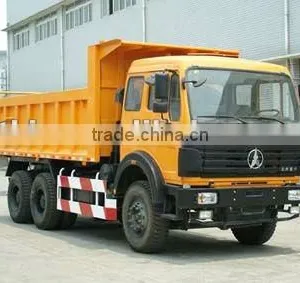

North Benz 20-30T 6x4 Dump Truck thumbnail-1
North Benz 20-30T 6x4 Dump Truck photo-1
Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Drive Wheel:
6x4
Capacity (Load):
31 - 40t
Horsepower:
251 - 350hp
Contact Supplier Request Quote Chat Now
Henan Taike Industrial And Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Drive Wheel 6x4
Capacity (Load) 31 - 40t
Horsepower 251 - 350hp
Condition New
Transmission Type Manual
Emission Standard Euro 3
Fuel Type Diesel
Gross Vehicle Weight 25000
Place of Origin Hubei, China
Brand Name Chenglongwei
Model Number CLQ
Dimensions (L x W x H) (mm) 8450*2500*3310
North Benz 20-30T Tipper ND3251B38J
  Specification Chassis brand
  Chassis Brand Model North Benz
  Chassis model ND1255B38J
  Drive Mode 6x4
  Tire 12.00R20
  Engine Model WD615.97E
  Horsepower (Hp) 290
  Displacement(ml)/Power(kw) 9726/213
  Emission Euro III (EGR)
  Main Parameter Overall dimension (mm) Approx.L*W*H 8450*2500*3310
  wheelbase 3800+1450
  Axles No. 3
  Cargo dimenssion (mm) L*W*H 5600*2300*1500
  Thickness of the cargo side 6mm, bottom 8mm
  Capacity 20-30T
  Weight (kg) Approx.Gross weight 25000
  Approx.Payload weight 13000
  Approx.Kerb weight 12000
  Leaf spring No. 10/13
  Approaching/Departure Angle(°) 26/32
  Front/Rear Track(mm) 1995/1800
  Max speed(km/h) 85
  Gear Box 9 speed gearbox
  Front/Rear Axle Load 7T/16T
  Cab flat-roof with A/C, Power steering
  Lifting system China front lifting system
Dump truck is also called as tipper truck or engineering truck, which consist of chassis, hydraulic lifting mechanism,cargo. It can be divided into light series, small tonnage series,medium tonnage series, large-tonnage series.And it's widely used in engineering, road construction,sanitation,mines,lime kilns,stones factory,cement,starch factory,phosphate fertilizer plant etc. It can save manpower and reduce labor intensity. Equipment:The truck is odopted with optimized design hydraulic system and lifting mechanism. It's lifting is smooth and powerful. The tipper dumping mechanisam is using push to enlarge the structure by the former, former top cylinder and middle double cylinder.
Special Description: 1. Dump truck adopt with original maturity chassis to refit. 2. The cargo is made of high quality carbon steel. The cargo thickness can be 4mm,5mm,6mm,8mm,10mm,12mm etc. It's made in accordance with international standards of manufacturing. The shape can be square bucket, U shape bucket. 3. The cargo is adopt advanced technology welding. It using optimized design hydraulic system and lifting m, , echani, sm. The dump truck quality is reliable, and lifting is stable & strong. 4. According to the bearing capacity of the cargo, it can be select the hydraulic lifting cylinder, domestic or HYVA 160,180,200,220 front lifting system or middle lifting system.
