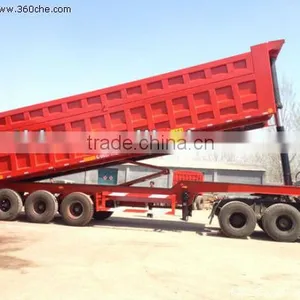

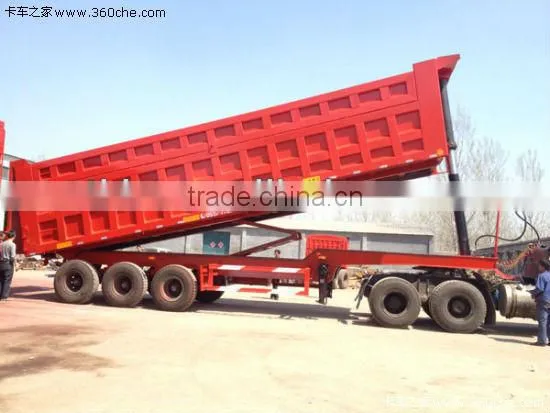

Super Heavy Duty 40T Hydraulic Dump Trailer

Name: Super Heavy Duty 40T Hydraulic Dump Trailer
Brand: Chenglongwei
SKU: 140733428
Availability: InStock

Henan Taike Industrial And Equipment Co., Ltd.

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Type:

Semi-Trailer

Material:

Steel

Certification:

Other, ISO

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Type Semi-Trailer

Material Steel

Certification Other, ISO

Size 11000*2498*3600

Max Payload 40T

Place of Origin Hubei, China

Brand Name Chenglongwei

Model Number CLQ

truck semi trailer

Name		Quantity/Unit		Model
JOST kingpin		1		KZ1012/3.5"
Landing leg		1 set		JOST D200T
*Steel spring 810piece/9013**		6		TONGYADA
Mechanic suspension of three axle		1 unit		FUWA WHEEL BASE 1800MM
Axle		3		FUWA 13T
Rim		12		8.0-20
Tire		12		Triangle/11.00-20 (16PR)
Electric system	Bunch + Lamps	1 set		Entire airproof bunch + lamps
	Seven core socket	1		BAOWEI
Braking system	Emergency relay valve	1		HALDEX
	Air reservoir	2		40L
	Double braking chamber	4		30/30
	Single braking chamber	2		30
	Handle joint	1/1		ISO Standard joint
	Handle valve	1		Pneumatic
	ABS	1		WABCO
Tool box		1		*1500540620*
Outside dimension(L×W×H)(mm)			11000×2498×3600
Inside dimension (L×W×H)(mm)			10000×2290×600
Wheelbase (mm)			5760+1320+1320
Front/rear suspension			/1500
Approach / departure angle			/19
G.V.W (kg)			39360
Rated Payload (kg)			28500
Vehicle total weight (kg)			10860
