2016 Disc Harrow Manufacturers

FOB Price

US$ 500 - 500 / Set

1 Set(Min. Order)

Port Tianjin/Qingdao/Shanghai
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Farm Cultivator
Power Type	Other, Unpower	Power(W)	22.7-35Kw
Certification	ISO9001 CE	Warranty	1 Year
Use	Farm	Place of Origin	Henan, China
Brand Name	TECH	Model Number	1BJX-2.4
Weight	400kg	Dimension(LWH)	196018801317mm
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

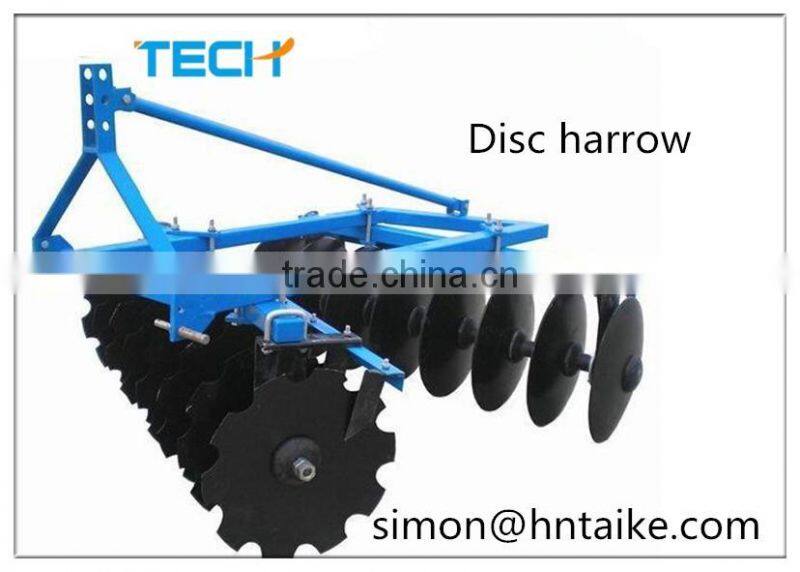

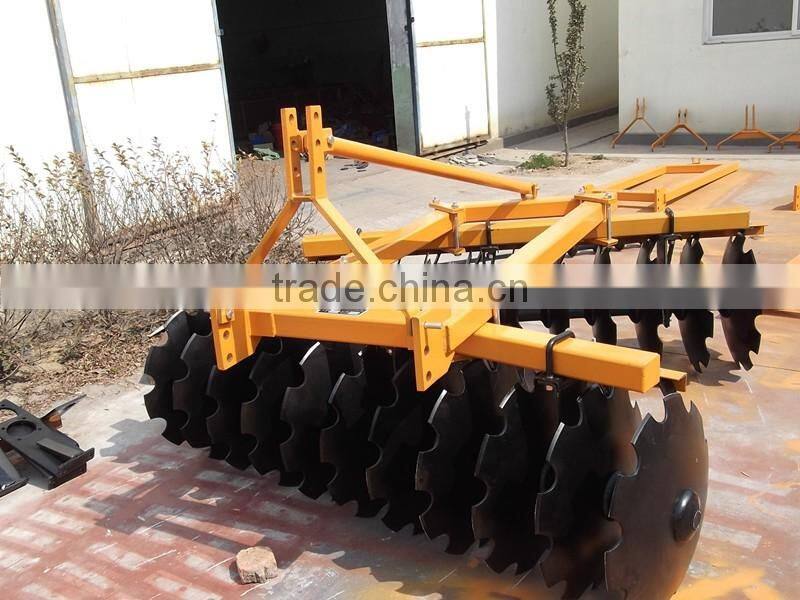

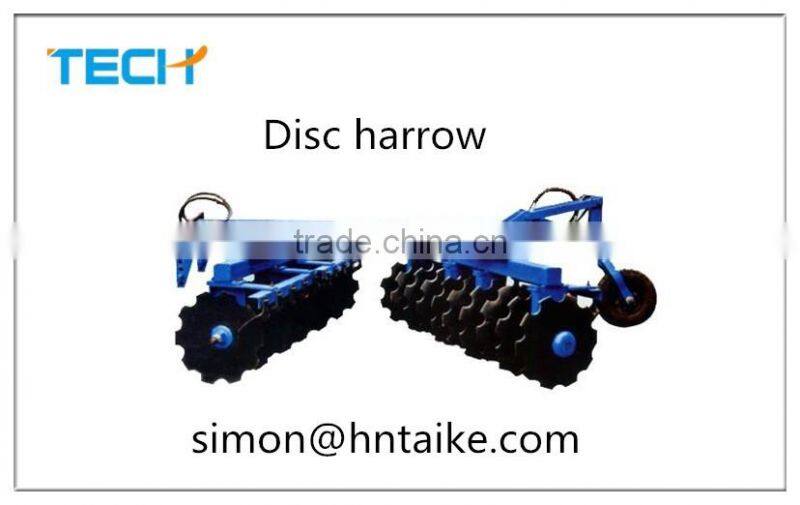

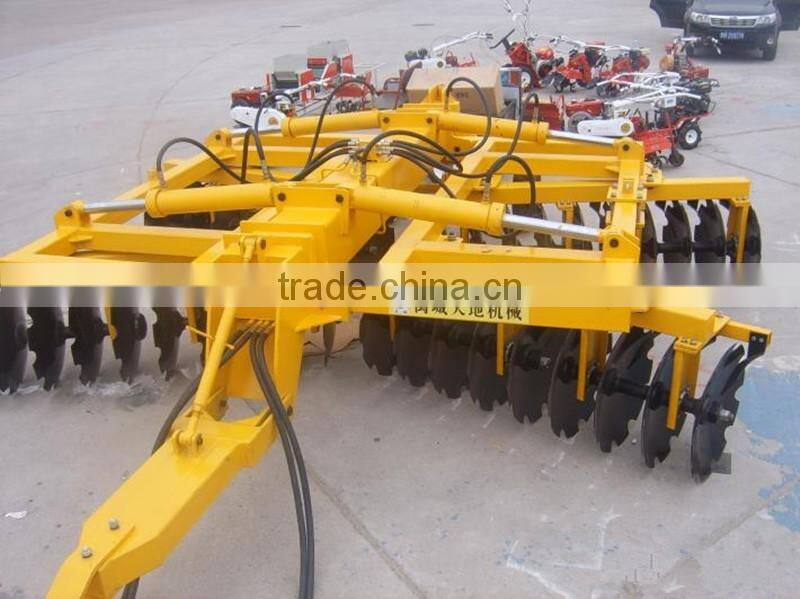

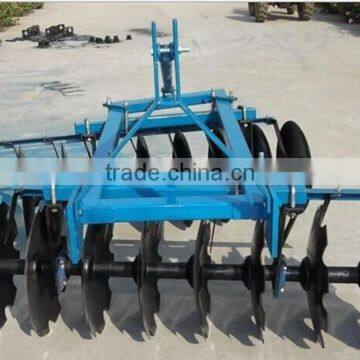

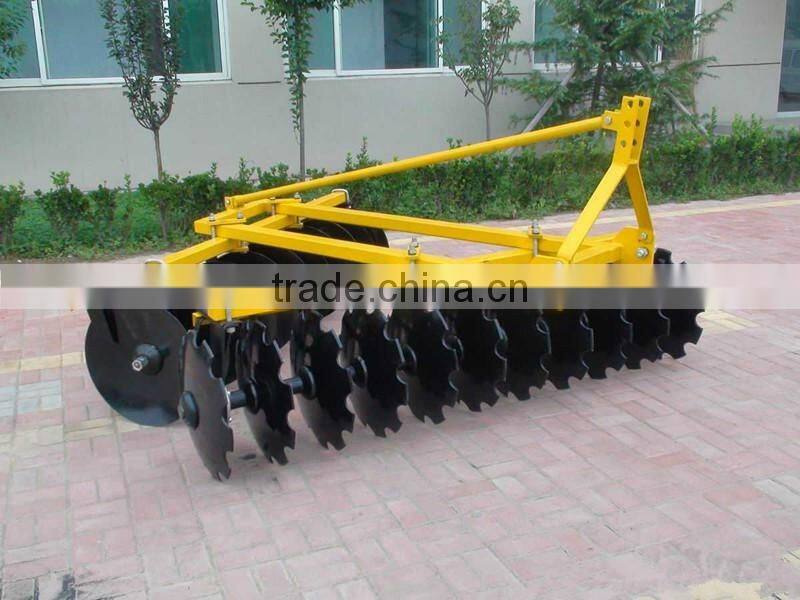

2016 disc harrow manufacturers

1 They have been proved to be satisfactory for harrowing work on uncultivated lands and in heavy clay soil fields.
2 It may be used for cleaning away stubble of plants before tillage, or crushing clods after tillage.
3 It may also be used as plough for primary tillage in cultivated fields.
4 Maximum harrowing depth on uncultivated land can reach 25cm.

Model	1BJX-1.7	1BJX-2.0	1BJX-2.2	1BJX-2.4	1BJX-2.5
Overall size (MM)	_{196018801317}	_{198022401317}	_{198024701317}	_{278025701340}	_{297026801460}
Weight (Kg)	400	434	463	604	700
Working width (MM)	1700	2000	2200	2400	2500
Working depth (Mm)	140-180
Qty. of discs(Pcs)	16	18	20	22	24
Dia. Of disc (Mm)	560
Rake Angle group(deg)	11 14 17 20 23			14 17 20 23 26
Disc spacing (Mm)	230
Productivity (Ha/h)	1.3	1.5	1.6	1.8	1.9
Linkage	Three point mounted
Matched Power (Kw)	25.7-33	36.7-47.7	40-47.8	47.7-58.8	55-60

Detailed Images

Our Services

1. Warranty time
1.We can supply samples for customers.
2.We supply you 2 years warranty time.

2. Spare Parts
The Easy-damage parts, we will send you together with the Product for free. And in warranty period, if the spare part is not work because of the quality, we will send you new parts for free.

3.Payment way
1. We accept T/T 30% in Advance, and 70% T/T after Shipping.
2. We alos accept L/C at sight

4.More information, please contact us
