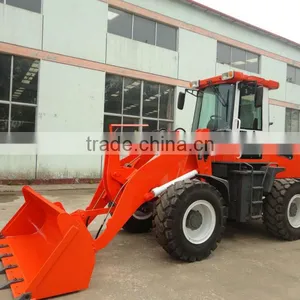

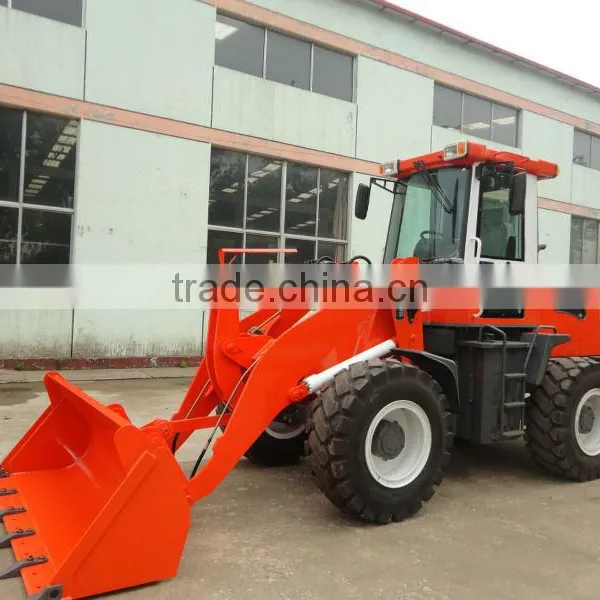

Small Wheel Loader Load Capacity 1800kg in China With Komatsu Technology

Shanghai Gather Power Industry Co., Ltd.

US$ 5,000 - 10,000 MOQ: 1 Set

Key Specifications

Condition:

New

Brand Name:

Model Number:

ZL18

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Brand Name GP

Model Number ZL18

Place of Origin Shanghai, China

Type Mini Loader

Moving Type Wheel Loader

Dimension(Long * Breadth * High) 5300*1820*2760 mm/6500*1820*2800

Rated Load 1500kg

Certification CE,ISO

Warranty 15 months

After-sales Service Provided Engineers available to service machinery overseas

Specifications

The front frame adopts the box-type structure to ensure the reliable operation

1.8 ton China Wheel Loader

1.Small-sizeed loaders adpots Caterpillar technology.

2.ISUZU weight bridge

3.Control system of clutch adopts mechanical.

	Item	Parameters
Performance	1 .Rated Load	1800 kg
	2. Total Weight	4100 kg
	3. Rated Bucket Capacity	0.85 m³
	4. Max. Tractive Force	40 KN
	5. Max. Breakout Force	≥ 43 KN
	6. Max. Gradeability	38°
	7. Dumping Height	2800 mm/3100mm
	8. Dumping Reach	1050mm/1000 mm
	9. Raising Time	≤ 5.0 s
	10. Total Cycle Time	≤ 9.5 s
	11. Overall Dimensions (L x W x H)	530018202760 mm/650018202800
	12. Min. Turning Radius	3200 mm
Engine	13. Model	WEICHAIHUAFENG4102
	14. Type	Four-cylinder, Inline, Water-cooled, Four-stroke Engine
	15. Rated Power	47 kw
	16. Rated Speed	2400 rpm
	17. Min. Fuel Consumption Ratio	≤ 258.4 g/kw·h
Transmission	18. Hydraulic Torque Converter	ZL265 Integrated/Split Torque Converter
	19. Gear Shift	1 Forward, 1 Reverse, 1 High Speed, 1 Low Speed
	20. Max. Speed	25 km/h
Drive Axle	21. Model of Axle	ZL16 Hub Reduction Axle (small)
	22. Wheel Tread	1480 mm
	23. Wheel Base	2150 mm/2260mm
Drive	24. Mode	4-wheel Drive
Hydraulic System	25. System Working Pressure	20 Pa
Hydraulic System	26. Fuel Tank Capacity	90 L
Brake System	27. Service Brake	Vacuum Booster, Air Over Hydraulic Caliper Disc Brake on 4 Wheels
Brake System	28. Parking Brake	Flexible Shaft Controlled Disc Brake
Tyre	29. Type Specification	20.5/70-16
	30. Front Tyre Pressure	0.40 Mpa
	31. Rear Tyre Pressure	0.35 Mpa
