Home > Manufacturing & Processing Machinery > Engineering & Construction Machinery > Loader > 5 Ton Wheel Loader With Cummins Engine

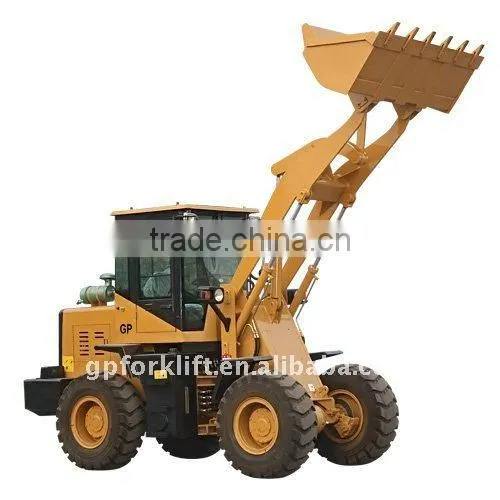

5 Ton Wheel Loader With Cummins Engine
Negotiable
MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Brand Name:
GP
Model Number:
ZL
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Condition
New
Brand Name
GP
Model Number
ZL
Place of Origin
Shanghai, China
Type
Front Loader
Moving Type
Wheel Loader
Dimension(Long * Breadth * High)
7836x3010x3300
Rated Load
5000KGS
Specifications
1.Single lever pilot control system2.Strengthened axles owns large bearing capacities
3.Air over hydraulic brake system.
| Model | ZL50 |
| Rated weight | 5000KG |
| Rated capacity | 3.0m3 |
| Operating weight | 16000KG |
| Model of engine | STEYR WD12G220E11 |
| Rated power | 162KW |
| Rated speed | 2200r/min |
| Max .dump height | 3098mm |
| Max .dump reach | 1198mm |
| Min .ground clearance | 450mm |
| Wheel base | 3200mm |
| Tread | 2250mm |
| Lifting time | Total time:11.3s |
| Lowering time | |
| Unloading time | |
| Max.breakout force | 172.6KN |
| Min.turning radius | 7268mm |
| Overall dimensions (length*width*height) | 7836x3010x3300mm |
| Engine option :CUMMINS 6CTA8.3-C215 . 2 .SDEC C6121ZG50 | |
