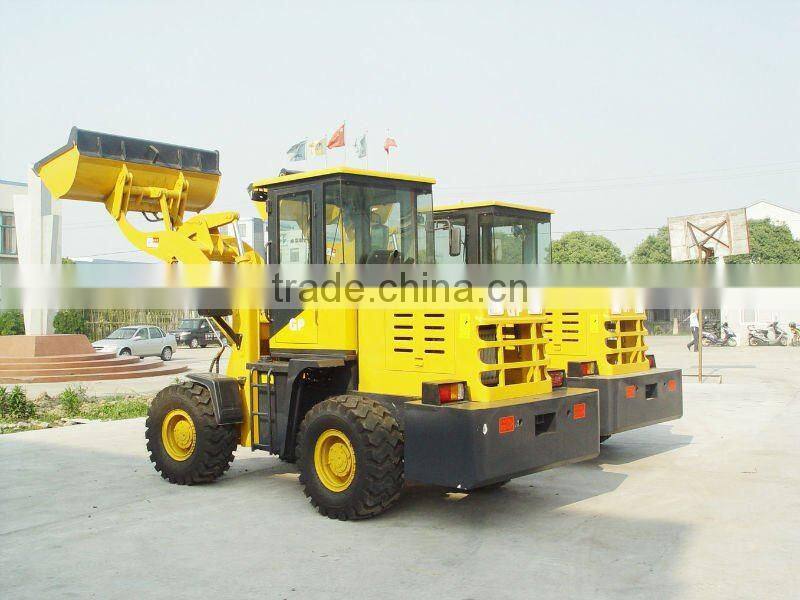

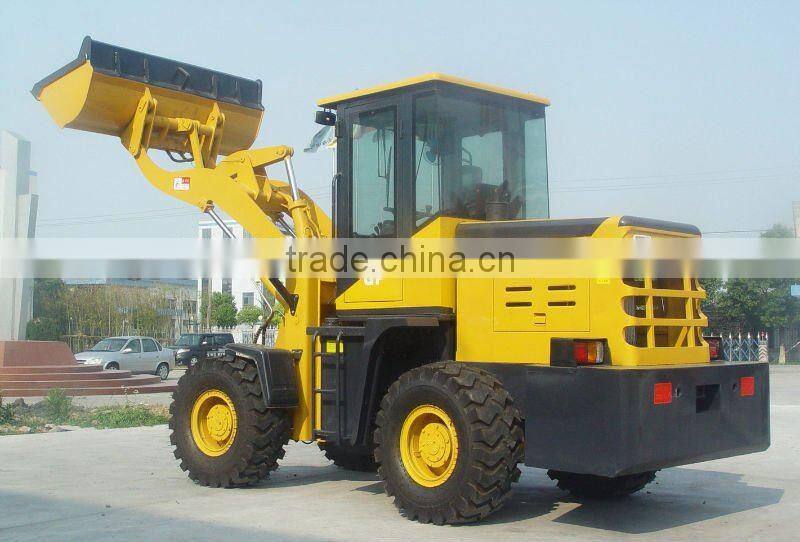

Rock Loader 3ton Wheel Loader

Shanghai Gather Power Industry Co., Ltd.

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Brand Name:

Model Number:

ZL30

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Brand Name GP

Model Number ZL30

Place of Origin Shanghai, China

Type Front Loader

Moving Type Wheel Loader

Dimension(Long * Breadth * High) 7050x2430x3120mm

Rated Load 3000KG

1.Single lever pilot control system

2.Strengthened axles with large bearing capacities

3.Air over hydraulic brake system.

Model	ZL18	ZL20	ZL28	ZL30	ZL30A
Rated weight	1800KG	2000KG	2800KG	3000KG	3000KG
Rated capacity	1.03m³	1.3m3	1.6m3	1.7m3	1.7m3
Operating weight	4000KG	7480KG	6000KG	9500KG	9500KG
Model of engine	Weifang ZH4102	weifang ZH4102	luotuo YTR4108	xichai 6110	DEUTZ TD226B
Rated power	50KW/47 KW	45KW	55KW	85KW	92KW
Rated speed	2200r/min 2400rpm	2400r/min	2400r/min	2300r/min	2300r/min
Max .dump height	3200/3700/4500mm	2800mm	3200/3500mm	3020/3250mm	3250mm
Max .dump reach	≥930mm	885mm	1084mm	1200mm	1200mm
Min .ground clearance	310mm	310mm	310mm	380mm	380mm
Wheel base	2160mm	2150mm	2470mm	2760mm	2760mm
Tread	1080mm	1440mm	1380mm	1800mm	1800mm
Lifting time	4s	Total time:9.8s	Total time:11.3s	Total time:11s	Total time:11s
Lowering time	3s
Unloading time	2s
Max.breakout force	32KN	48.87KN	70KN	138KN	138KN
Min.turning radius	3500mm	4239mm	4500mm	5700mm	5700mm
Overall dimensions(lengthwidthheight)	580017302800mm	5910x1910x2810mm	6150x1970x3000mm	7050x2430x3120mm	7050x2430x3120mm
Engine option :	1.Weifang ZH4102 2.Weichai Huafeng ZH402GG41	1. Weifang ZH4102. 2.Weichai Huafeng R4105G57	1.Luotuo YTR4108. 2.Xinchai 4105 3 . Cummins 4BT3.9	1. Xinchai 6110 2.Cummins 6BT5.9	1. Xinchai 6110 2.Weichai 6105 3.Cummins 6BT5.9 4 .Deutz TD226B
