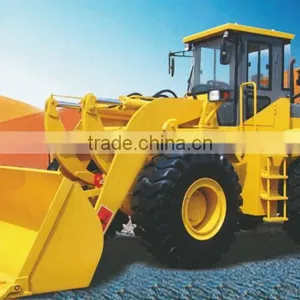

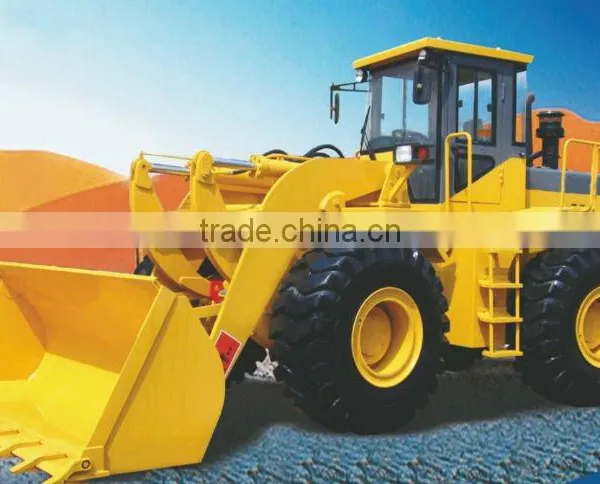

5t Wheel Loader

1. Power and driving system combine in optimize way, fast speed,short lifting time, small turning radius,operating cycling time is only 19seconds, high efficiency.
It adopts for used in mine factory and sand material ground.
2. STEYR diesel engine, Turbo-charged,high power,low fuel consumption low noise and reliable performance.with improved fan and radiator.it can work in more flexible working condition.
3. Single-phase, 4 elements double turbine hydraulic torque converter can make a good use of an engine and enlarge torque to make a large tractive force. with a planetary power shift transmission of 50; it is compact, higher transmission efficiency and speed with long service life.
4. Strengthen 50series driving axle is high in load-bearing capacity and reliability, reasonable load distribution between front and rear axles and good in vehicles stability.
5. The radiator structure is optimized to offer more effective heat dissipation area. The air intake and outlet channel design of overall cooling system is optimized to effectively lower water temperature in the engine, oil temperature in the Hydraulic system and thus increase the cooling efficiency.
6. The bucket board adopt high intensity steel board then prolong it's use life.

WHEEL LOADER		Model
Item	Specification	ZL50
1	Rated weight	5000KG
2	Rated capacity	3.0m3
3	Operating weight	16000KG
4	Model of engine	STEYR WD12G220E11
5	Rated power	162KW
6	Rated speed	2200r/min
7	Max .dump height	3098mm
8	Max .dump reach	1198mm
9	Min .ground clearance	450mm
10	Wheel base	3200mm
11	Tread	2250mm
12	Lifting time	Total time:11.3s
13	Lowering time
14	Unloading time
15	Max.breakout force	172.6KN
16	Min.turning radius	7268mm
17	Overall dimensions (length*width*height)	7836x3010x3300mm
18	Engine option : CUMMINS 6CTA8.3-C215 / STEYR C6121ZG50
