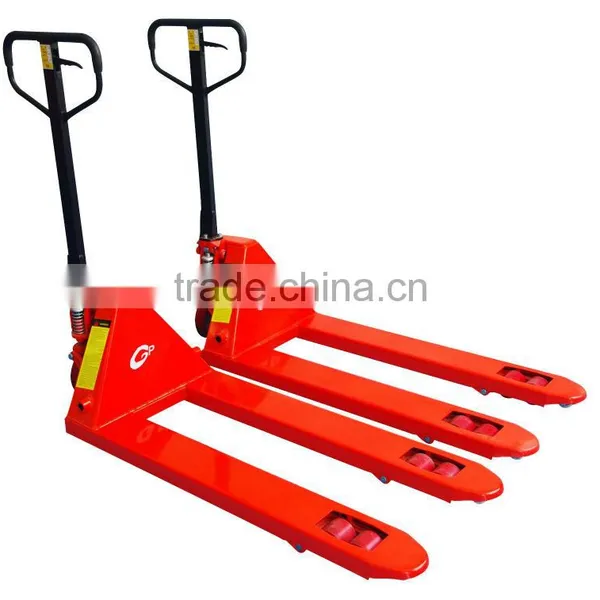

3Ton Hand Pallet Truck



1. Professional and ideal for storage and transport tasks

2. Optional quick lift function, only 5 pump actions needed to reach the maximum height, which makes more efficient and labor saving

3. Key parts galvanized ensures long services life, stability as well as low noise                                4. Strengthened fork frame and smooth fork tips makes it more durable than ever                                5. Various optional of fork width and length suit for different pallet sizes and working requirements 6. Optional coating materials like PU, Nylon, and Rubber etc. For rollers and wheels meet different needs of customer and working ground and conditions                                                                       7. Unique design of pump makes it easier to operate and repair                                                                  8. Excellent performance and highly reliable                                9. Important seals made in Germany, which prolong the working time of hydraulic unit 10. No routine maintenance at all is needed on the hydraulics unit and bearings

Hand Pallet Truck			Model
Item	Specification	Unit	DF18	DF20		DF25		DF30
1	Load capacity	kg	1800	2000		2500		3000
2	Lowest fork height	mm	75	85	75	85	75	85	75
3	Highest fork height	mm	190	200	190	200	190	200	190
4	Turning wheel	mm	Φ180*50	Φ200*50	Φ180*50	Φ200*50	Φ180*50	Φ200*50	Φ180*50
5	Load wheel single	mm	Φ73*80	Φ80*93	Φ74*93	Φ80*93	Φ74*93	Φ80*93	Φ74*93
6	Load wheel double	mm	Φ73*55	Φ80*70	Φ74*70	Φ80*70	Φ74*70	Φ80*70	Φ74*70
7	Fork size	mm	150*50	160*50				160*60
8	Fork overall width	mm	520/550	450/520/540/685
9	Fork length	mm	800/900/1000/1100/1150/1220
