Home > Products > Electric Scissor Lift > Half-electric scissor lift,6 meters height,platform 500kgs

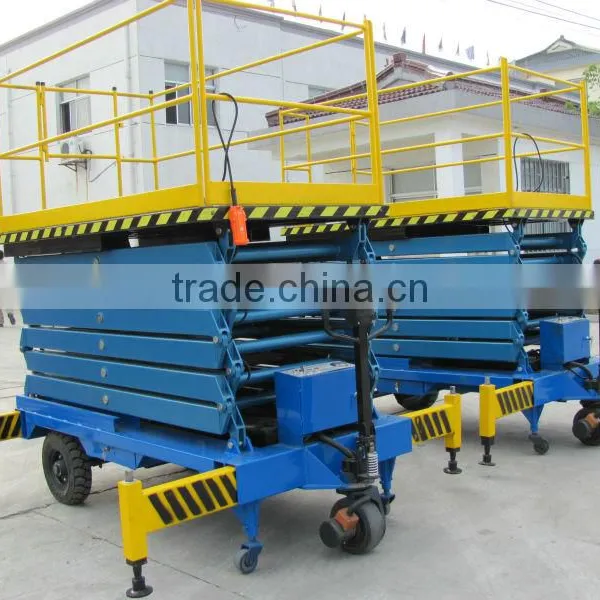

Half-electric scissor lift,6 meters height,platform 500kgs
Negotiable
/ Set
1 Set(Min.Order)
- 2000 Set / Sets per Month
- Shanghai
- T/T
You May Like
Product Details
| Place of Origin | Shanghai, China | Brand Name | GP | |
| Model Number | GTJB 0.5-6 | Lift Mechanism | Scissor Lift | |
| Lift Drive / Actuation | Electric Motor | Power | 1.2kw | |
| Rated Loading Capacity | 500kg | Min. Lifting Height | 6000mm | |
| Max. Lifting Height | 60000mm | Table Size | 2200*1000*1100mm | |
| Overall Dimensions | 2540*1300*1580m | Weight | 950kgs | |
| Certification | ISO&CE | Warranty | one year | |
| After-sales Service Provided | Overseas service center available |
Product Description
Specifications
1. AC motor 2.platform height 6 meters 3.Rubber wheels 4.Support legGP Semi-Electric Scissor Type Lifting Platform, movement design to keep stable lift and lower, high capacity and large working
GP Semi-Electric Scissor Type Lifting Platform
Half - Electric Scissor Type Lifting Platform | ||||||
| Model | Unit | GTJB 0.5-6 | GTJB 0.5-7.5 | GTJB 0.5-9 | GTJB 0.5-11 | |
| Max platform height | mm | 6000 | 7500 | 9000 | 11000 | |
| Min platform height | mm | 1080 | 1200 | 1360 | 1480 | |
| Lift rated capacity | kg | 500 | ||||
| Platform size | mm | 2200*1000*1100 | ||||
| The developed dimension of legs | mm | 2700*2200 | ||||
| Elevating Time | s | 59 | 77 | |||
| Driving motor | V/kw | 24/1.2 | ||||
| Lifting motor | V/kw | 24/2.2 | 24/3 | |||
| Aneroid Battery | V/Ah | 2x12/150 | ||||
| Charger | V/A | 24/15 | ||||
| Electromotor power | kw | 2.2 | 3 | |||
| Overall length | mm | 2540 | ||||
| Overall width | mm | 1300 | ||||
| Overall height | mm | 1180 | 1300 | 1460 | 1580 | |
| Overall weight | kg | 950 | 1350 | 1600 | 1800 | |
