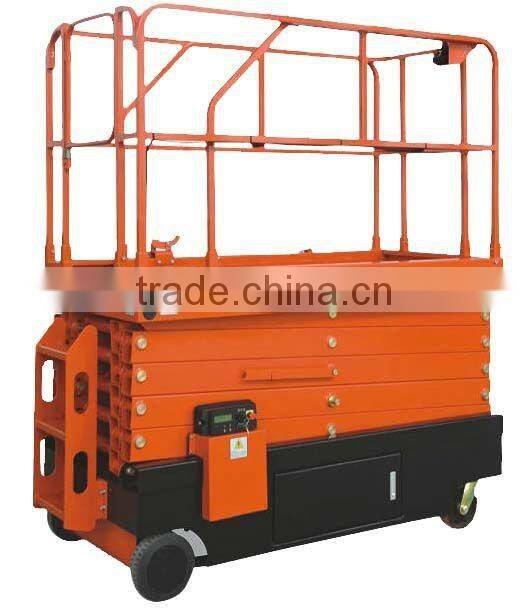

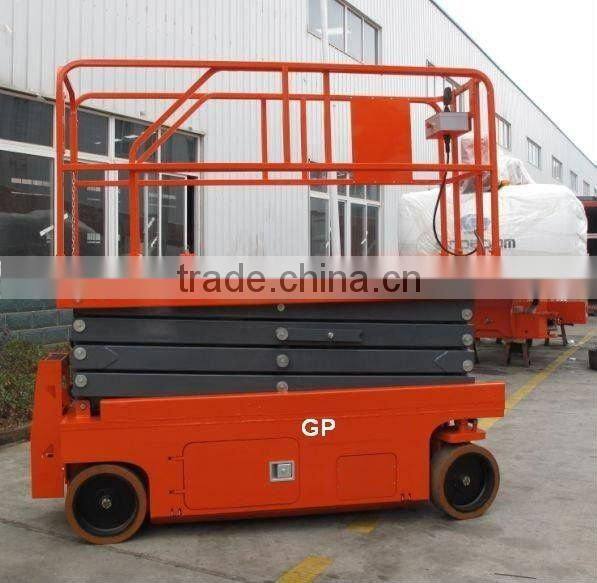

Specifications
A one-hand joystick control allows the operator to control the machine movement within a tight radius from the working platform.
Model | UNIT | GTJZ06 | GTJZ07 | |
Max platform height | mm | 6000 | 7400 | |
Max machine height | 7100 | 8500 | ||
Min platform height | 918 | 1020 | ||
Ground clearance | 80 | |||
Lift rated capacity | kg | 300 | 250 | |
Platform extend capacity | 100 | 80 | ||
Platform size | mm | 21870*760*1230 | ||
Platform length extended | 900 | |||
Max drive speed(Platform stowed) | Km/h | 3-4 | ||
Max drive speed(Platform elevated) | 0.6-1 | |||
Min turning radius | mm | 1900 | ||
Max travel grade | % | 10-15 | ||
Caster size | mm | 8 | ||
Driving motor | V/kw | 2*24/0.4-0.5 | ||
Lifting motor | 24/3 | |||
Aneroid battery | V/Ah | 2*12/120 | ||
Charger | V/A | 24/12 | ||
Pothote Protection System | N/A | Auto Mechanism | ||
Overall length | mm | 1870 | ||
Overall width | 900 | |||
Overall height | 2018 | 2120 | ||
Overall weight | 1200 | 1290 | ||
