Small Farm Tractor Made in China With Nice Design GP1000

Small Farm Tractor Made in China With Nice Design GP1000 thumbnail-1
Small Farm Tractor Made in China With Nice Design GP1000 photo-1
US$ 1 - 8,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Type:
Wheel Tractor
By wheel:
4WD
Contact Supplier Request Quote Chat Now
Shanghai Gather Power Industry Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Seaport
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Wheel Tractor
By wheel 4WD
Usage Garden Tractor
Drive Type Gear Drive
Power(W) 73.5 KW
Certificate Other, CE, CE, EURO III standard
Brand Name GP
Model Number GP1000/1004
Place of Origin Shanghai, China
After-sales Service Provided Engineers available to service machinery overseas

Specifications

100 hp tractor
1. JpV clutch from USA
2. Combined Meter
3. Paddy tyre
4. Luxury Cabin

100HP Farm Tractor 4WD or 2WD with nice design GP1000





Advantages:

1,this series product is a middle and small hp tractor ( 2WD and 4WD )



2,It is matched high-power engine which has characteristics of large power output, easy start, advanced economic index, reliable performance, low noise and good environmental .



3,different configurations according customer's demends:  single clutch or two stage clutch,(3+1)x2 six shifts or (4+1)x2 eight shift in which the creeping



4,The beautiful appearance of the tractor adopts international streamline.



5,Hydraulic steering system is equipped for quick and convenient operations. Impact transmission system, large speed range and reasonable shifts can meet different tasks.



6,It is equipped with fully sealed brake differential lock and post PTO so it can be connected with different farm implements easily and finish different field tasks, fixed tasks and   transportation efficiently.



Specification:



Catalogue of GP 100HP Series Farm Tractor
Model No. GP1000 GP 1004
Drive type 4x2 4x4
Engine
Engine model YTO, 4 cylinder, direct injection, in-line, diesel engine
Capacity of fuel tank(L) 150 150
Rated speed (r/min) 2300 2300
Engine power (kw) 73.5 73.5
Lowest fuel consumption (g/kw·h) ≤242 ≤242
Transmission
Clutch Dry,dual-stage type Dry,dual-stage type
PTO Speed(rpm) 540/1000 or 760/1000(optional) 540/1000 or 760/1000(optional)
Gear shift 8F+4R 8F+8R
Hydraulic System
Hydraulic output valve 2-way (optional) 2-way (optional)
Three point linkage
Category of 3-point link Cagetory II Cagetory II
Lifting capacity(at point of 610mm)KN >15 >16
Technical parameter
Dimension (LxWxH) mm 4593x2050x2810
Wheel base(mm) 2195 2195
Track base(mm) front wheel 1485 1610
Track base(mm) rear wheel 1620-2020(usual 1620) 1620-2020(usual 1620)
The smallest clearance(mm) 476 379
Front tyre 6.5-20/7.5-16(optional) 11.2-24
Rear tyre 16.9-34







GP 90HP Series Farm Tractor
Model No. GP900 GP904 GP950 GP954
Drive type 4x2 4x4 4x2 4x4
Engine
Engine model YTO, 4 cylinder, direct injection, in-line, diesel engine
Capacity of fuel tank(L) 150
Rated speed (r/min) 2300
Engine power (kw) 66.2 66.2 69.8 69.8
Lowest fuel consumption (g/kw·h) ≤242
Transmission
Clutch Dry,dual-stage type
PTO Speed(rpm) 540/1000 or 760/1000(optional)
Gear shift 8F+4R 8F+4R 8F+8R 8F+8R
Hydraulic System
Hydraulic output valve 2-way (optional)
Three point linkage
Category of 3-point link Rear,Catetory II
Lifting capacity(at point of 610mm)KN >15 >16 >15 >16
Technical parameter
Dimension (LxWxH) mm 4593x2050x2810
Wheel base(mm) 2195
Track base(mm) front wheel 1485 1610 1485 1610
Track base(mm) rear wheel 1620-2020(usual 1620)
The smallest clearance(mm) 476 379 476 379
Front tyre 6.5-20/7.5-16 11.2-24 6.5-20/7.5-16 11.2-24
Rear tyre 16.9-34

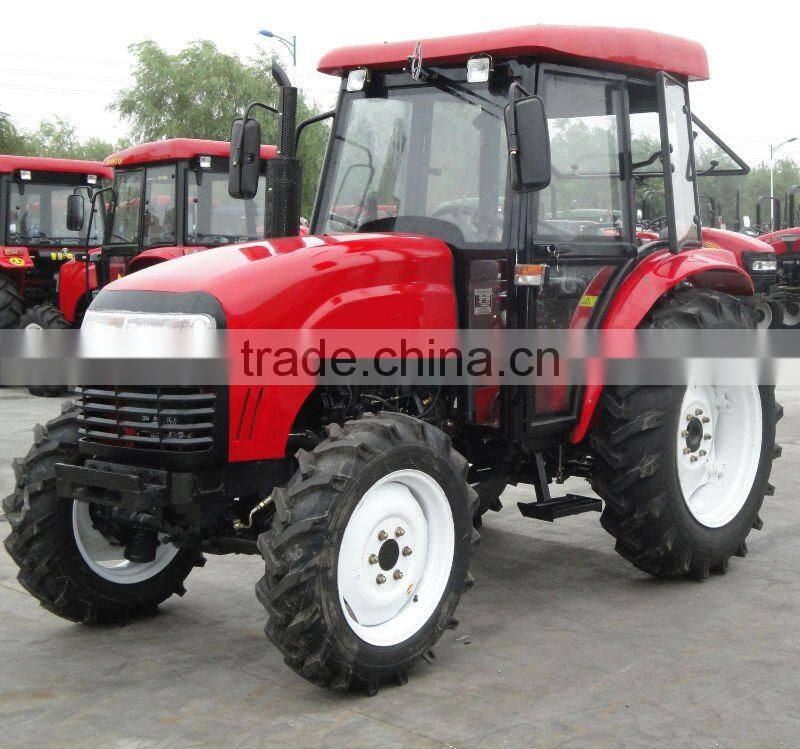

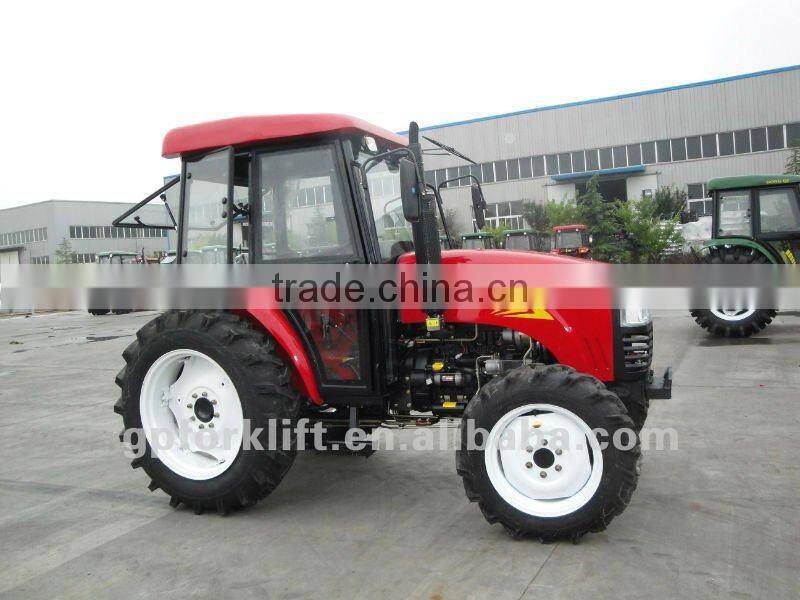

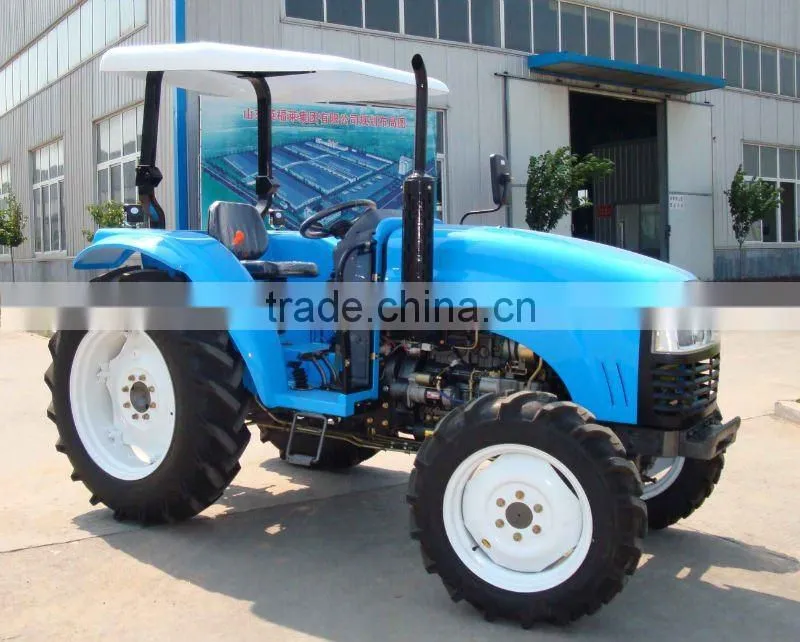

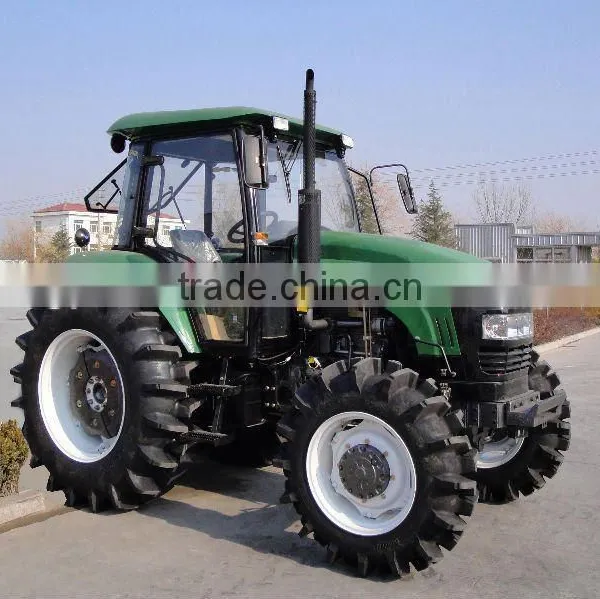

Picture:

small farm tractor made in China with nice design GP1000small farm tractor made in China with nice design GP1000small farm tractor made in China with nice design GP1000
