Factory supply Cheap price
Top rank quality
Multi-purpose
18HP diesel engine
Main parameters of the mini tractor price
Gearbox casing:Special steel casting box
Outline dimensions:2200×970×1120
Wheel base (mm):1150mm
Tread:Front wheel:850 Rear wheel:800
Min. ground clearance:210mm
Turning round radius :2m
Structure Weight:542kg
Theoretical speeds(km/h)
Shift | I | Ⅱ | Ⅲ | Iv | v | VI | RⅠ | RⅡ |
Speed (Km/h) | 2.1 | 3.8 | 5.3 | 8.6 | 13.3 | 21.5 | 1.62 | 6.6 |
Main engine parameters of the mini tractor price
Engine Model | R190 |
Structure | Single cylinder, Horizontal, Water cooled, Four stroke |
Rated speed r/min | 2200 |
Rated power Kw | 13.23 |
Transmission system of the mini tractor price
Clutch | Dry, Dual action |
Differential type(F/R) | Closed/Symmetry bevel type |
Brake type of mini tractor price | Hoof type |
Connection method | B3200 Triangle tape B3200 |
Walking & Steering of the mini tractor price
Front axle | Integral | |
Tire Standar of | Front wheel | 4.00-10/4.00-12 |
Rear wheel | 6.00-12/6.5-16 | |
Steering gear type | Worm gear type/hourglass worm wheel type | |
The front wheel toe-in | 6~12 | |
The front wheel camber | 2°±30′ | |
Kingpin inclination | 7°±15′ | |
Reverse caster | 3°±15′ | |
Hydraulic equipment of the mini tractor price
Structure of mini tractor price | Half the metal |
Oil pump of mini tractor price | Single plunger/gear pump |
Opening pressure of safety valve(Mpa) | 16±0.5 |
Rated hoisting time (s) | ≤3 |
Electrical equipmmet of the mini tractor price
Generator | Permanent magnet flywheel generators | 14V 350W |
Lamp | Headlight 12 v / 90 w | |
Turn signal | 12V/8W | |
Main filling quantity (L)
The hydraulic oil tank 2.2L

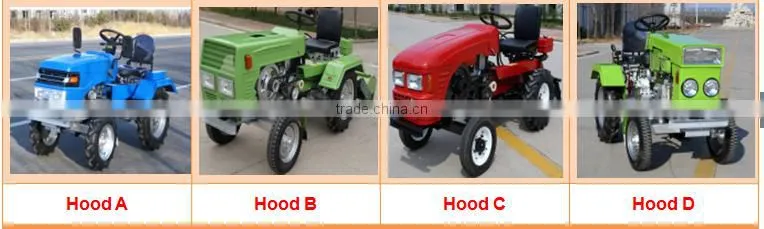

Different hoods of this mini tractor

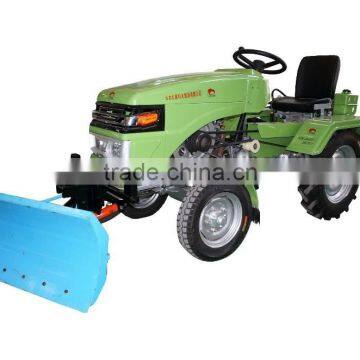

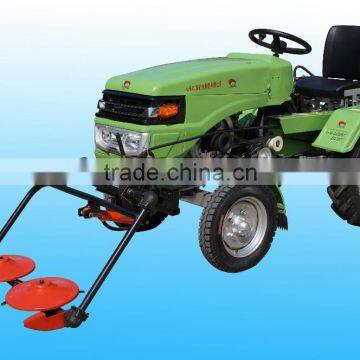

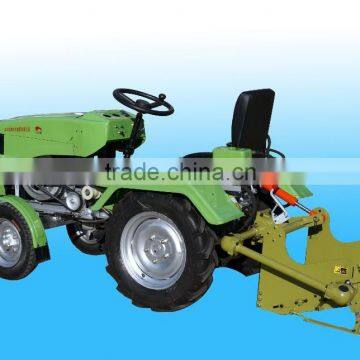

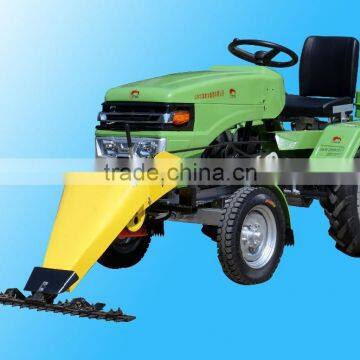

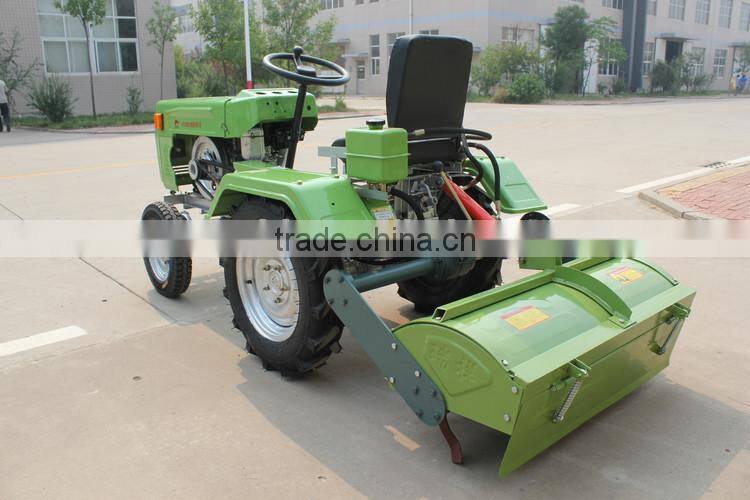

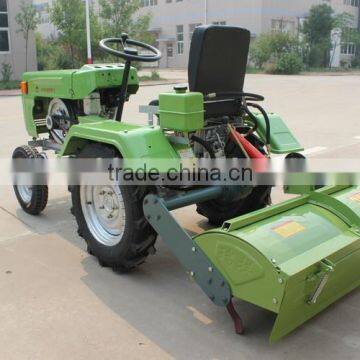

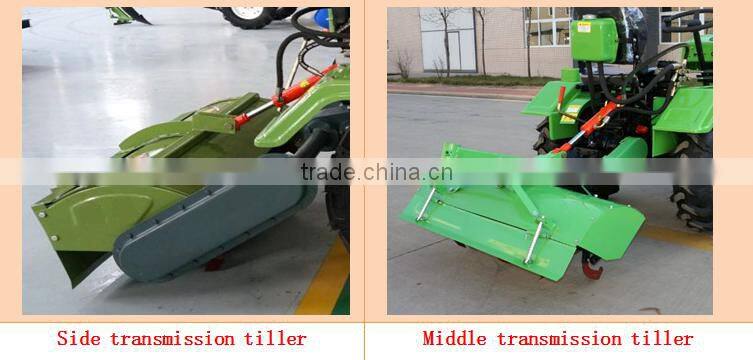

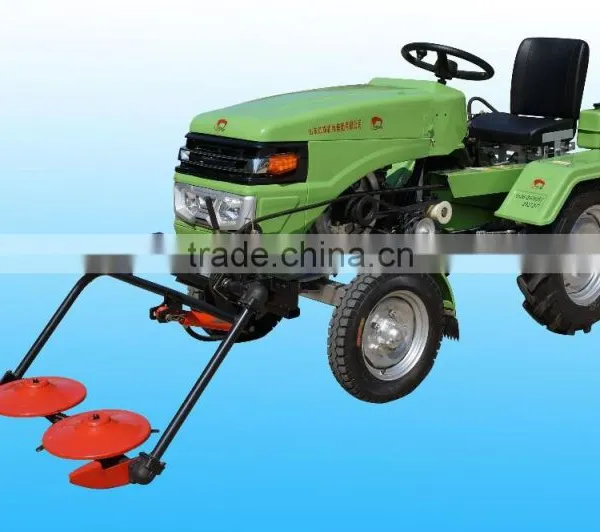

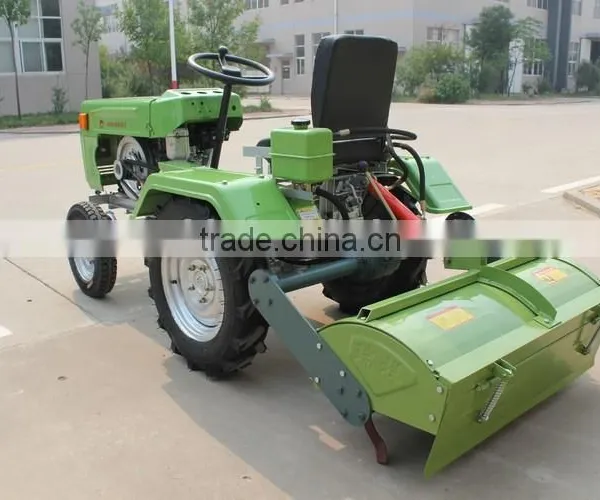

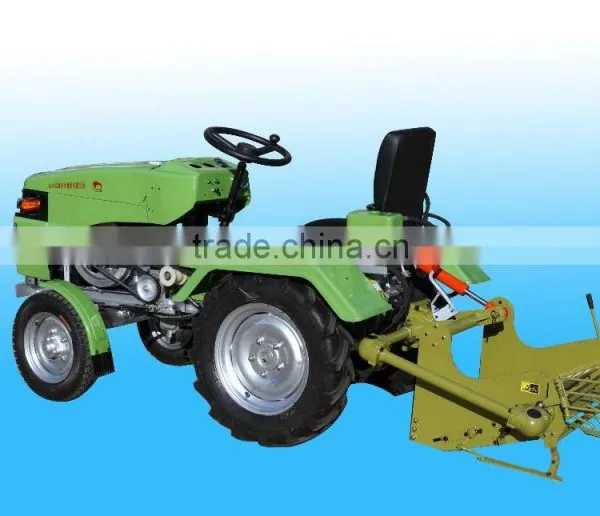

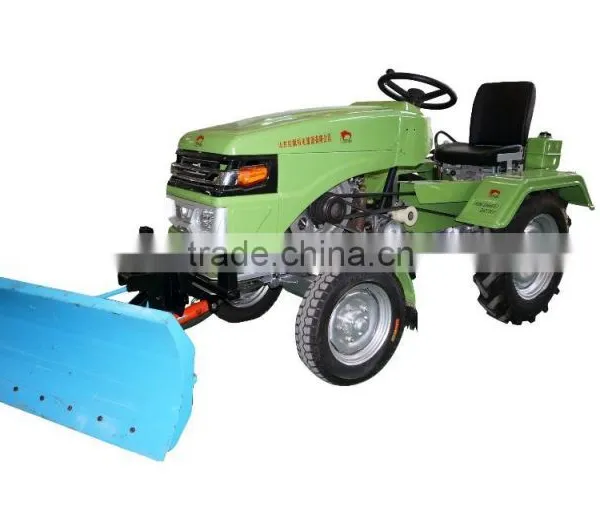

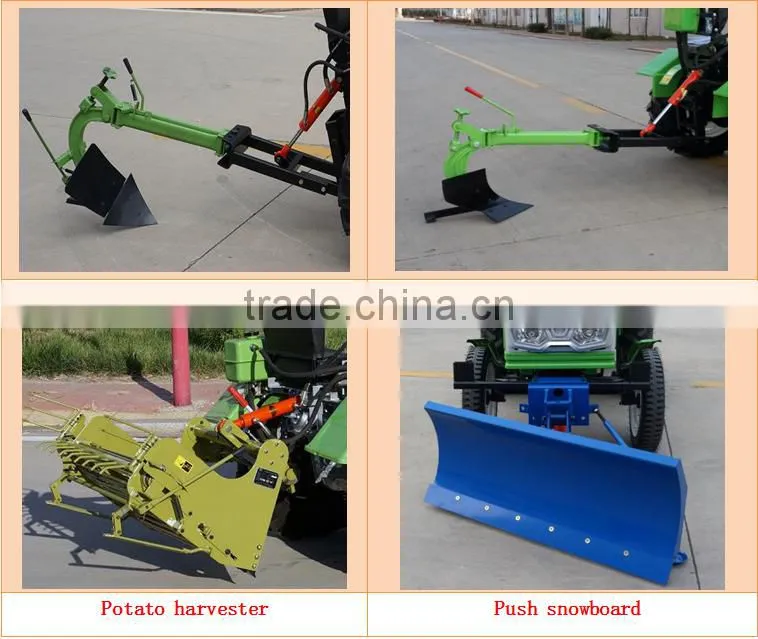

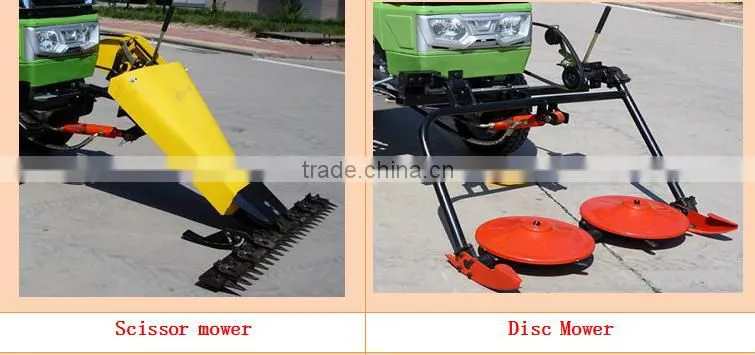

Main Implements ( Optional )

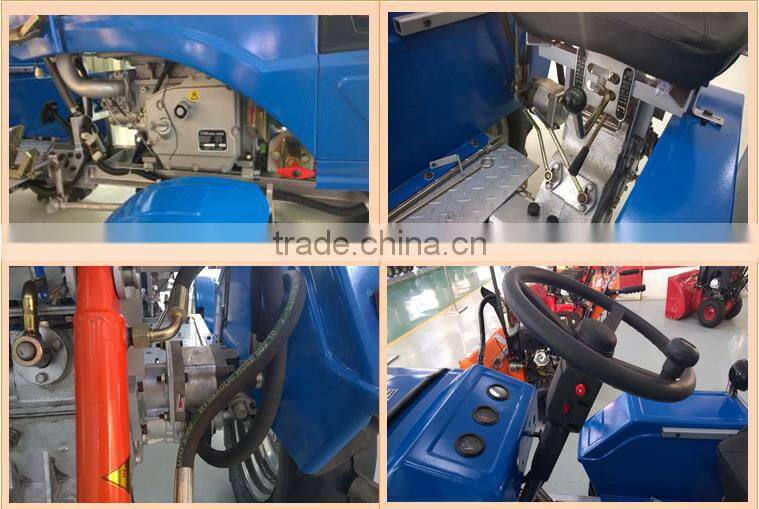

Details of mini tractor ( Optional )

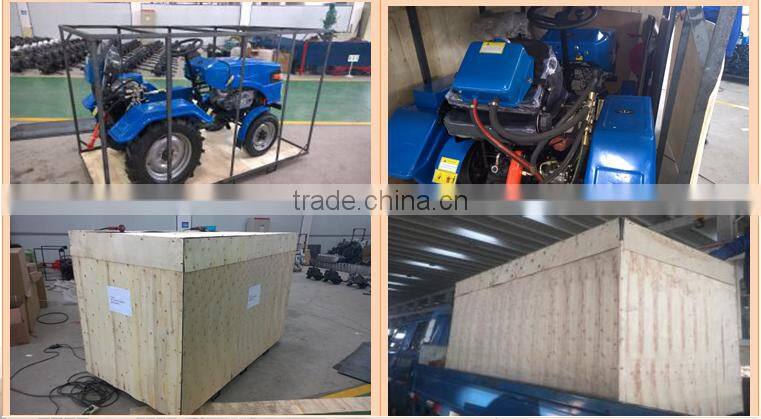

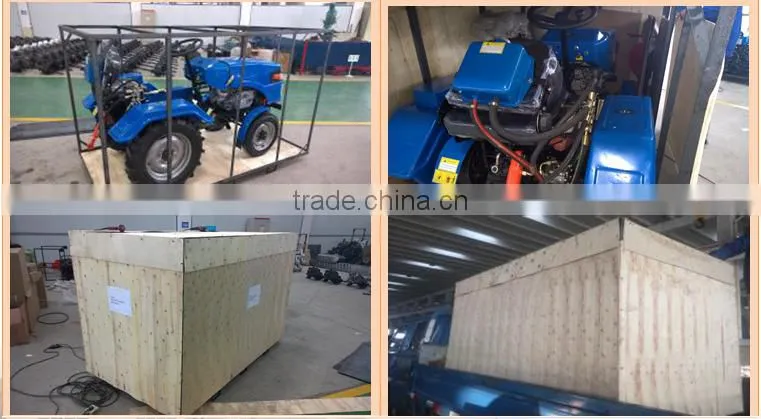

Packing of Single One

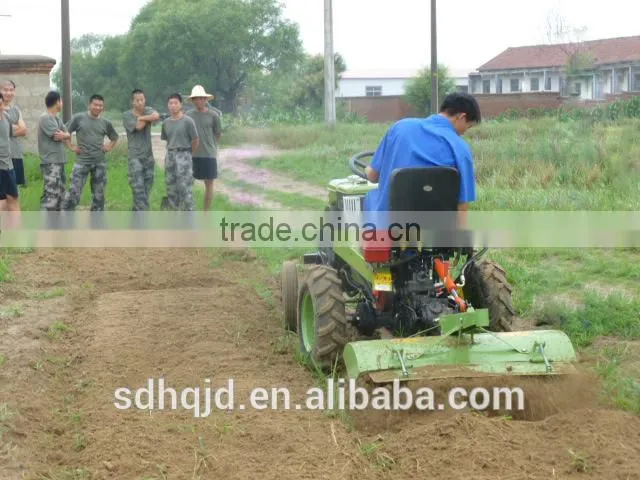

More photos
| Packaging Details: | Wooden Case with Iron frame SKD 56 SET IN 40 HQ |
|---|---|
| Delivery Detail: | 1~2weeks after getting deposit |
