2017 Newest 1 Ton Manual Stacker

Name: 2017 Newest 1 Ton Manual Stacker
Brand: JEAKUE
SKU: 140726902
Availability: InStock

Shenchuan (Shanghai) Heavy Industrial Machinery Co., Ltd.

US$ 333 - 433 MOQ: 1 Set

Key Specifications

Condition:

New

Place of Origin:

Anhui, China

Brand Name:

JEAKUE

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Anhui, China

Brand Name JEAKUE

Model Number JK8475

Dimension(L*W*H) 1600*725*1930

Certification CE

Warranty 12 months

After-sales Service Provided Overseas service center available

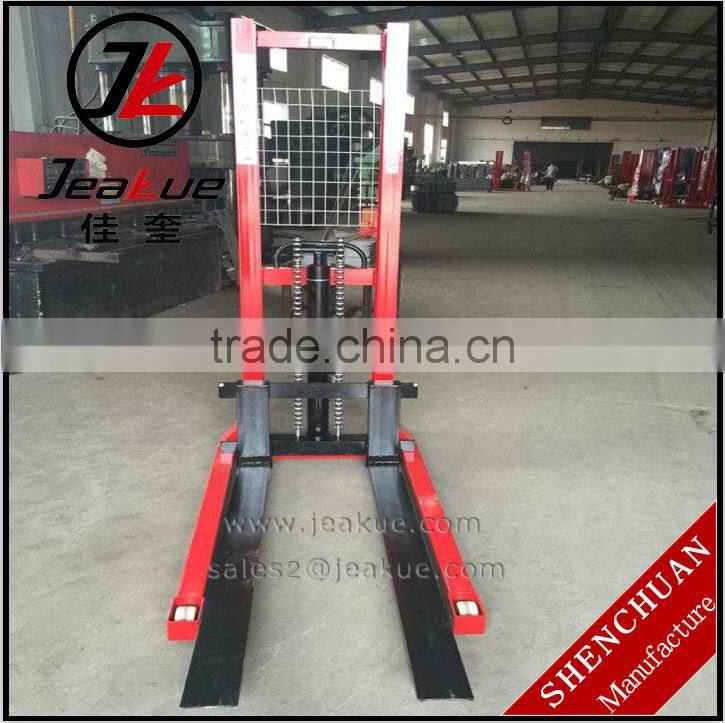

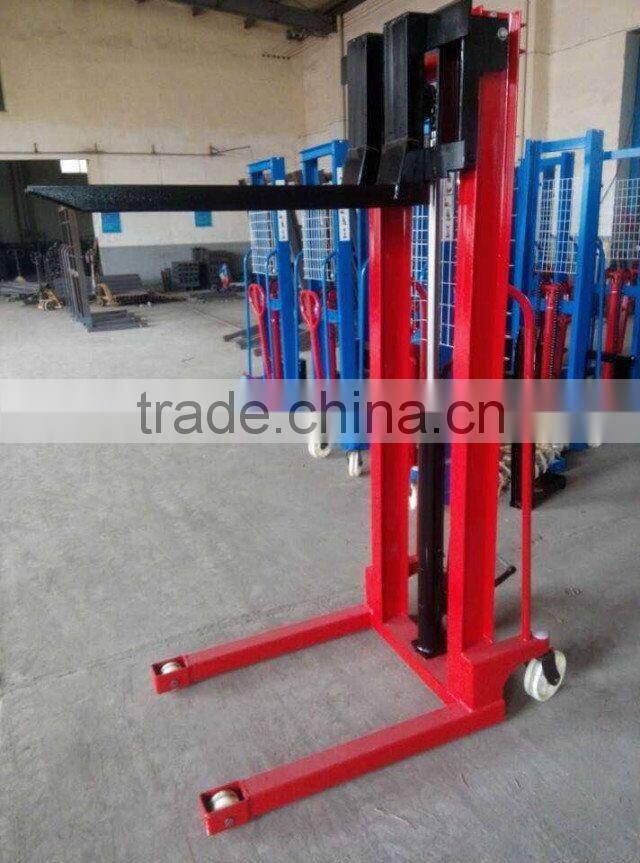

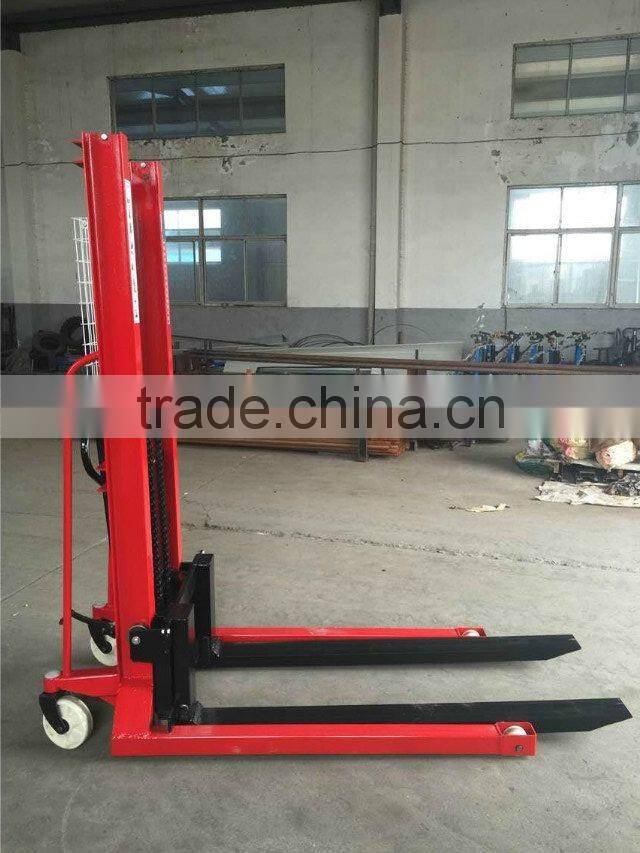

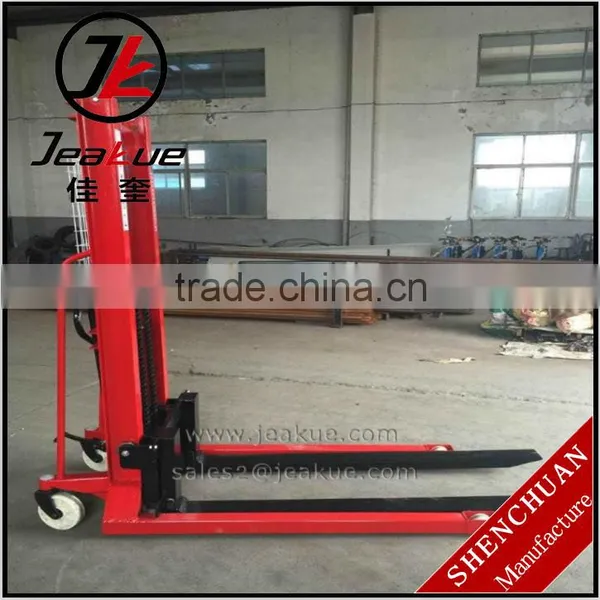

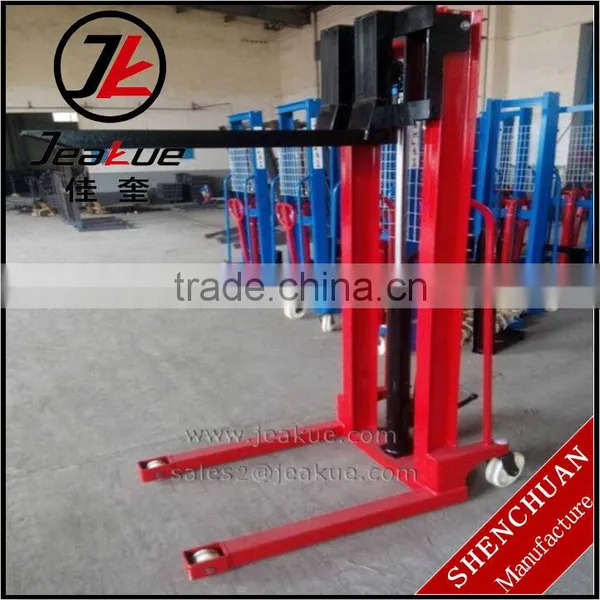

2017 newest 1 ton manual stacker

Brief introduction:

Rated load: 250-1000kg

Max height of pallet fork: 1560-1500mm

Min height of pallet fork: 90-88mm

Net weight:140-182kg

Products details:

1.Compact type and maintenance-free designing

2.The unique hand-cranking labor saving structure makes lifting faster and safer

3.Heavy C type steel door frame is strong and safe

4.Adjusting scale of pallet fork width is 160mm-690mm(BT00775,BT00776)

5.Two brake device is installed on the driving wheel

6.It’s in line with the European standard EN 1757-1:2001

Item No.		JK8473	JK8474	JK8475
Rated load	kg	250	500	1000
Load center	mm	400	500	575
Max height of pallet fork	mm	1560	1560	1500
Min height of pallet fork	mm	90	90	88
Pallet fork width adjustable range	mm	150-690	160-690	540 not adjustable
Width of pallet fork	mm	60	70	160
Length of pallet fork	mm	800	1000	1150
Hand-cranking increased mount of each circle	mm	40	22	9.5
Ground clearance	mm	18	18	24
Min turning radius (outside circle)	mm	1075	1075	1250
Loading wheel	mm	80×47	80×47	80×94
Driving wheel	mm	150×40	150×40	150×50
Boundary dimension	mm	1325×725×2030	1325×725×2030	1600×725×1930
Net weight	kg	140	146	182
