Product Details
| Place of Origin: | Anhui, China | Brand Name: | JEAKUE Pallet Truck | Model Number: | EP15 Pallet Truck |
| Lift Drive / Actuation: | Electric Motor |
Product Description

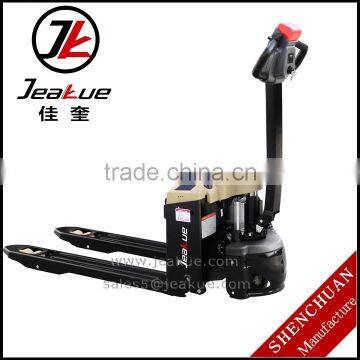

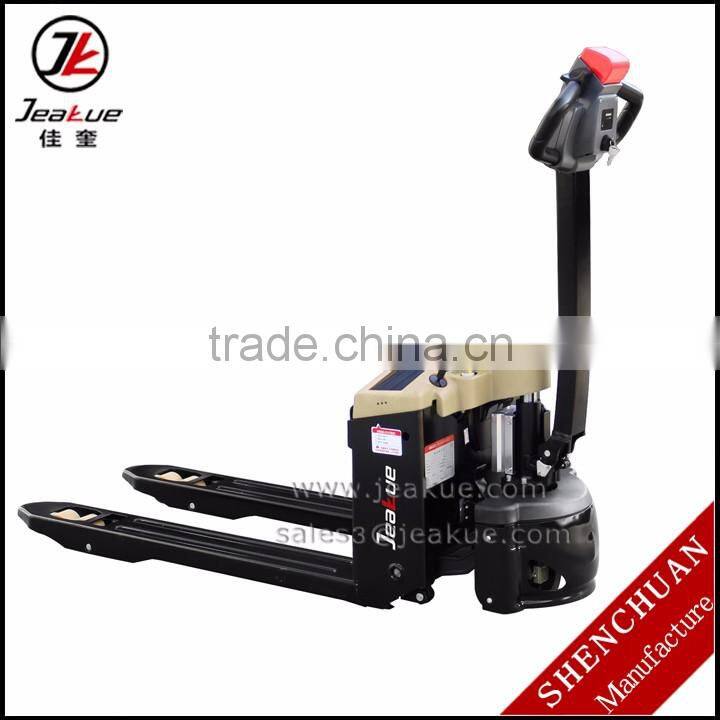

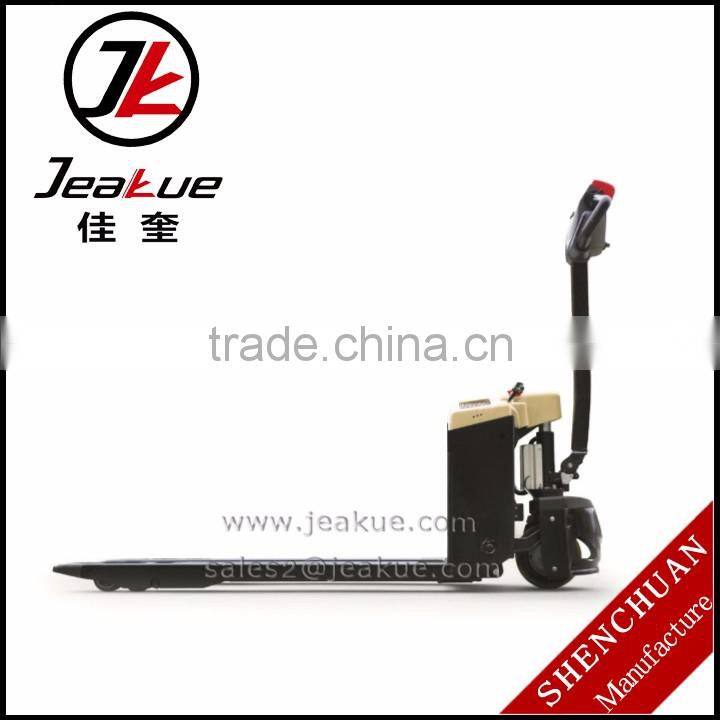

CE ISO 1.5T Walkie type Electric Pallet Truck
Patented Design:
Ergonomic tiller bounded with key switch, BDI and trouble-shooting indicator enhances easy and accurate operation.
External Control System:
Patent designed external control system not only protects controller in place but also provides easy access for maintenance.
Optimized Harness Layout:
Optimized wire hardness layout lowers twist failure rate.
Front Detachable Battery Cover:
Innovative Design, Easy for battery replacement.
Emergency Switch:
Upgraded emergency switch ensures safety.
Cover for Driving Wheel:
Strong cover for driving wheel ensures the safety of the operator.
Charger:
Upper-installed Charger, Better Heat-Exhausting, Higher Charging Efficiency.
| Distinguishing Mark | |||
| 1.1 | Manufacturer | Jeakue | |
| 1.2 | Model designation | EP15 | |
| 1.3 | Drive Unit | Electrics | |
| 1.4 | Operator type | Pedestrian | |
| 1.5 | Rated capacity | kg | 1500 |
| 1.6 | Load center distance | mm | 600 |
| 1.8 | Load distance | mm | 889/946 |
| 1.9 | Wheelbase | mm | 1261/1205 |
| Weight | |||
| 2.1 | Service weight (include battery) | kg | 195 |
| 2.2 | Axle loading, laden driving side/loading side | kg | 565/1130 |
| 2.3 | Axle loading, unladen drving side/loading side | kg | 155/40 |
| Types, Chassis | |||
| 3.1 | Tyre type driving wheels/loading wheels | PU/PU | |
| 3.2 | Tyre size, driving wheels (diameter x width) | mm | Φ210x70 |
| 3.3 | Tyre size, loading wheels (diameter x width) | mm | 2xΦ78x60 (Φ78x88) |
| 3.4 | Tyre size, caster wheels (diameter x width) | mm | / |
| 3.5 | Wheels, number driving, caster/loading (x=drive wheels) | mm | 1x /4(1x/2) |
| 3.6 | Track width, front, drving side | mm | / |
| 3.7 | Track width, rear, loading side | mm | 410 (535) |
| Dimensions | |||
| 4.4 | Lift height | mm | 115 |
| 4.9 | Height drawbar in driving position min./max. | mm | 790/1225 |
| 4.15 | Lowered height | mm | 80 |
| 4.19 | Overall length | mm | 1638 |
| 4.2 | Length to face of forks | mm | 488 |
| 4.21 | Overall width | mm | 568 (685) |
| 4.22 | Fork Dimensions | mm | 50/150/1150 |
| 4.25 | Distance between fork-arms | mm | 560 (685) |
| 4.32 | Ground clearance, center of wheelbase | mm | 30 |
| 4.34.1 | Aisle width for pallets 1000x1200 crossways | mm | 1739 |
| 4.34.2 | Aisle width for pallets 800x1200 lengthways | mm | 1939 |
| 4.35 | Turning radius | mm | 1485 |
| Performance data | |||
| 5.1 | Travel speed, laden/unladen | km/h | 4/4.5 |
| 5.2 | Lifting speed, laden/unladen | m/s | 0.029/0.038 |
| 5.3 | Lowering speed, laden/unladen | m/s | 0.046/0.033 |
| 5.8 | Max. radeability, laden/unladen | 2/6 | |
| 5.10 | Service brake type | Electromagnetic | |
| Electric-engine | |||
| 6.1 | Drive motor rating S2 60 min | kW | 0.65 |
| 6.2 | Lift motor rating at S3 15% | kW | 0.84 |
| 6.3 | The maximum allowed size battery | mm | |
| 6.4 | Battery voltage/nominal capacity K20 | 24/65 | |
| 6.5 | Battery weight | kg | 22.5x2 |
| Addition data | |||
| 8.1 | Type of drive control | DC | |
| 10.5 | Steering type | Mechanical | |
| 10.7 | Sound pressure level at the driver's ear | dB (A) | 74 |
| Option | |||
| Fork length | 800/915/1000/1070/1100/1300/1400 mm | ||
| Fork width | 520/600mm | ||
| Single load wheel | / | ||
| Driving wheel | PU wheel with Pattern | ||
| Battery capacity | 85Ah | ||
| Backrest height | 1220 mm (48in)/ 1520 (60in) | ||
| 1. The parameters in the table are of the standard model. For more information, please contact us. | |||
| 2. The parameters are subject to change without notice. | |||
