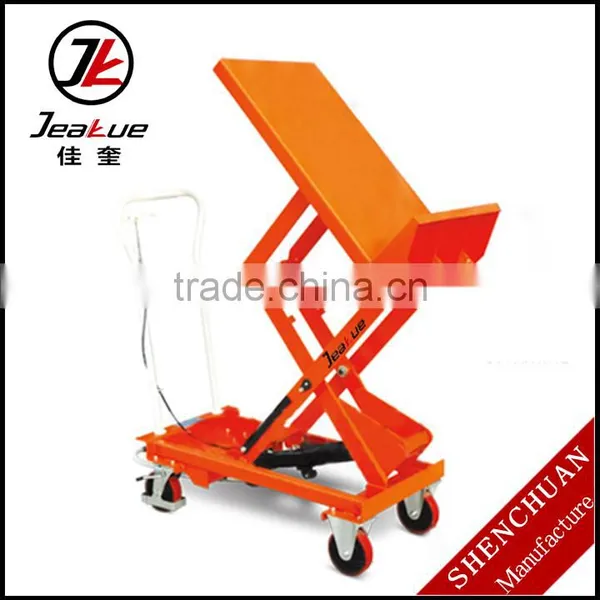

Tilt Hydraulic Scissor Lift Table

        tilt hydraulic scissor Lift Table

Rated load: 800kg
Min. height: 500mm
Max. height: 1620mm
Overall dimension  :   1260x520 mm

• Practical, convenient

• Special heavy design

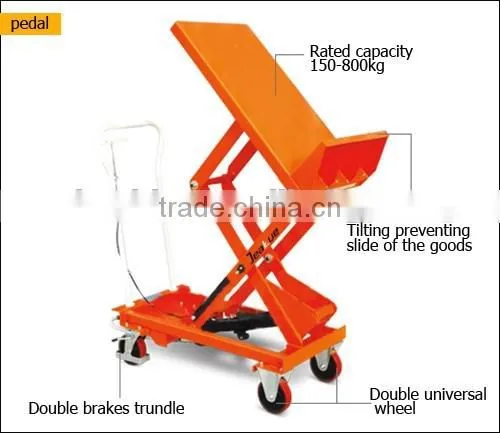

• Easily lift cargo with pedal hydraulic pump

• New designed scissor structure ensures durability and stability



Model			JK01565	JK01566	JK01618	JK01619	JK01620

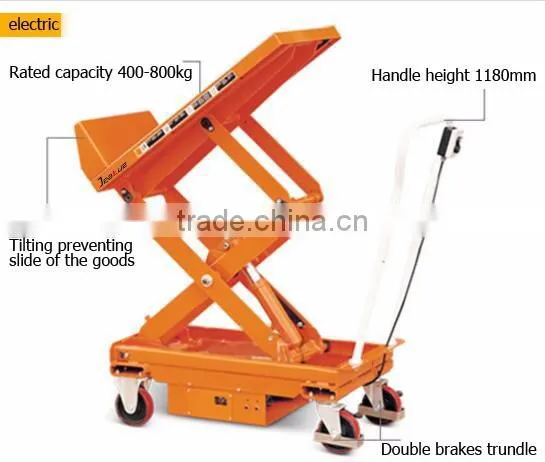

Drive type			Electric		Pedal
Load capacity		kg	400	800	150	400	800
Platform size (L*W)		mm	830x520	830x520	830x520	830x520	830x520
Size M		mm	930	930	830	930	930
Size N		mm	830	830	748	830	830
Platform height (Min./ Max.)	H1	mm	500/900	500/1000	415/880	435/900	440/1000
	H2	mm	500/1620	500/1620	415/1400	435/1560	438/1570
Handle height		mm	1180	1180	1100	1130	1130
Roller diameter		mm	φ150	φ150	φ125	φ150	φ150
Overall dimension		mm	1185x520	1260x520	1010x500	1355x520	1355x520
Time of getting the top		s	20	20	20	55	80
Net. Weight		kg	170	185	92	123	145





Shenchuan (Shanghai) Heavy Industrial Machinery Co., Ltd. was established in May 2003 in Shanghai. Over the past 10 years, we have been always adhering to the idea of “all service to meet customers’ needs”, breaking through technology, manufacturing the finest products, improving service with our globalization vision.

We have developed a variety of international advanced products joint with world-renowned industrial equipment manufacturers, such as: ABB, ZF, BOSCH, CAT, TEREX, and a variety of sophisticated products with independent intellectual property patents together with well-known Chinese universities in the area of machinery, electronics, physical mechanics etc.

We will provide comprehensive and multidimensional supply chain service for global customers with our most optimized scheme, best quality products, most attentive service and most competitive price, to reduce the maximum supply chain cost for customers and increase the production .
