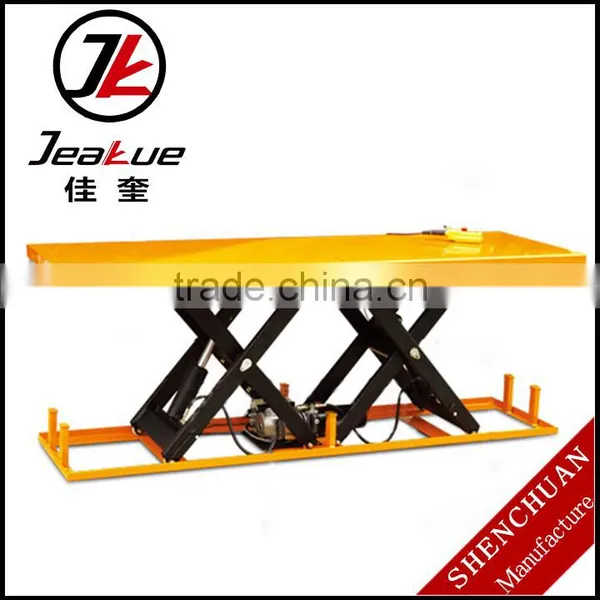

2000kg Immovable Heave Duty Lift Table With Large Platform Electric Hydraulic Lift Table

                   2000kg Immovable Heave Duty Lift Table with Large Platform Electric hydraulic lift table

Rated load: 2000/4000kg

Min. height: 205/230mm

Max. height: 1000mm

Net weight: 265/360kg



• Heavy-duty design, double-scissor type;

• Safety device beneath the table ensures the table stop lowering when there is obstacle;

• Low-voltage (24V) control box with up-down and stop buttons;

• Anti-overload valve and flow compensated valve in power panels, precisely control of lowering speed; hydraulic system with anti-explosion valve can stop the table lowering in case of hose burst;

• Safety clearance between scissors can prevent jamming.

• All bushing pivot points are designed with automatic lubrication;

• Removable hoisting ring provides convenience operation and table installation.

• High-quality power components originates in Europe;









Model		JK8710	JK8711
Rated load	kg	2000	4000
Min. height	mm	205	230
Max. height	mm	1000	1000
Table size	mm	2500×820	2500×850
Base size	mm	2460×640	2400×785
Net weight	kg	265	360
