European Original High-quality AC Power Inmoveable 4T Motorcycle Standard Electric Double Scissor Lift Table

European Original High-quality AC Power Inmoveable 4T Motorcycle Standard Electric Double Scissor Lift Table thumbnail-1
European Original High-quality AC Power Inmoveable 4T Motorcycle Standard Electric Double Scissor Lift Table thumbnail-2
European Original High-quality AC Power Inmoveable 4T Motorcycle Standard Electric Double Scissor Lift Table thumbnail-3
European Original High-quality AC Power Inmoveable 4T Motorcycle Standard Electric Double Scissor Lift Table thumbnail-4
European Original High-quality AC Power Inmoveable 4T Motorcycle Standard Electric Double Scissor Lift Table photo-1
European Original High-quality AC Power Inmoveable 4T Motorcycle Standard Electric Double Scissor Lift Table photo-2
European Original High-quality AC Power Inmoveable 4T Motorcycle Standard Electric Double Scissor Lift Table photo-3
European Original High-quality AC Power Inmoveable 4T Motorcycle Standard Electric Double Scissor Lift Table photo-4
US$ 1,200 - 3,100 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Anhui, China
Brand Name:
JEAKUE
Model Number:
JF
Contact Supplier Request Quote Chat Now
Shenchuan (Shanghai) Heavy Industrial Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Anhui, China
Brand Name JEAKUE
Model Number JF
Lift Drive / Actuation Other, Electric Motor, Electric Motor

European original high-quality AC power Inmoveable 4T Motorcycle Standard Electric Double Scissor Lift Table



Product Description

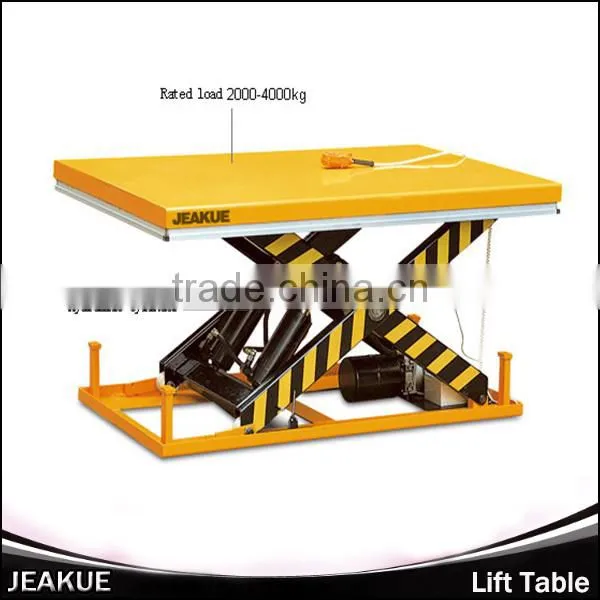

Rated load: 1000-4000kg
Min. height: 205-300mm
Max height: 1000-1400mm
Net weight : 160-505kg

• Heavy-duty design;
• This series of table truck can be used in above-floor or in-floor pit applications
• Complying with EN standard and ANSI / ASME safety standard;

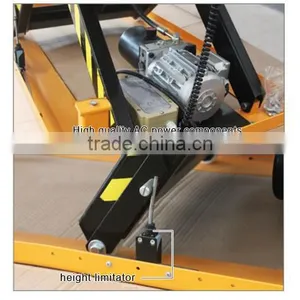

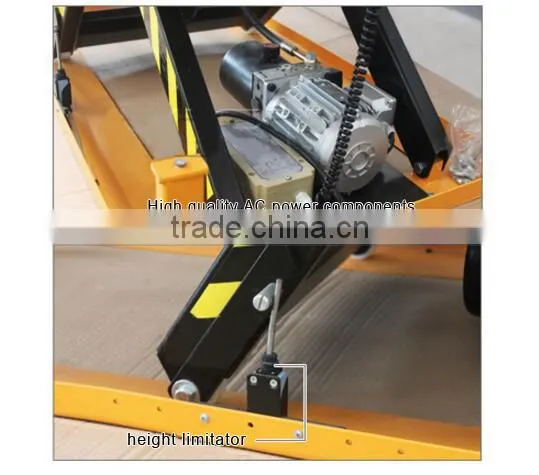

• European original high-quality AC power supply components;

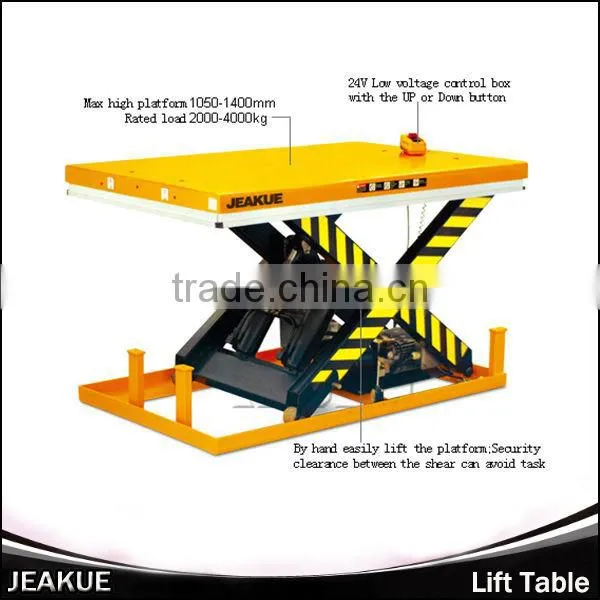

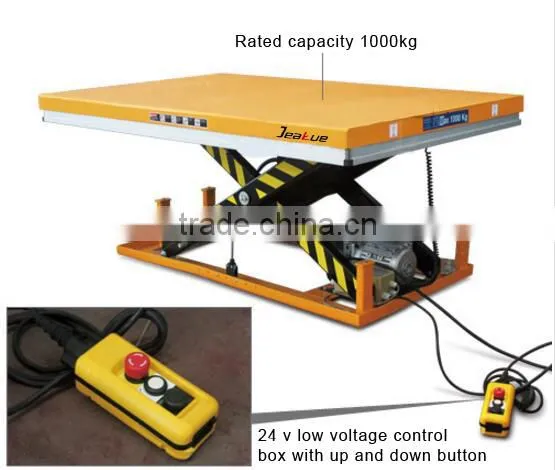

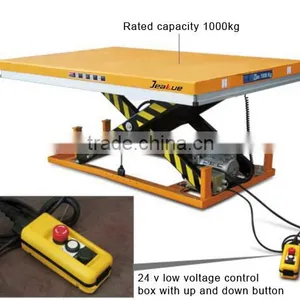

. Low-voltage (24V) control box with up-down and stop buttons;
• Anti-overload valve and flow compensated valve, precisely control of lowering speed;

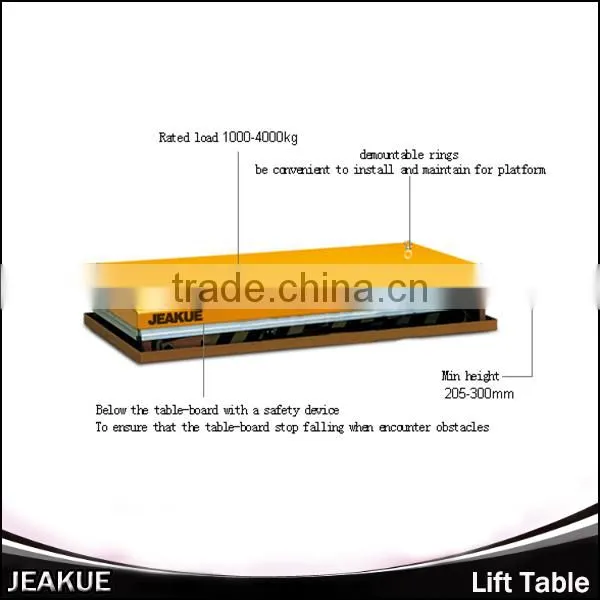

• Safety device beneath the table ensures the table stopped lowering when there is obstacle;
•Heavy duty cylinders with drainage system and check valve to stop the table lowering in case of hose burst
• Safety clearance between scissors can prevent jamming.
• Auto lubrication guide rings on pivot points;

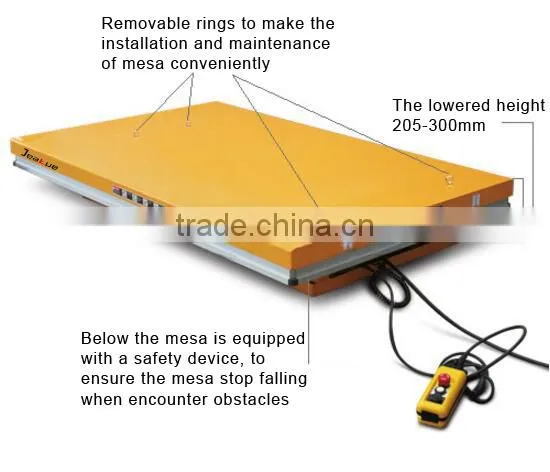

• Removable hoisting ring provides convenience to table installation and maintenance.
 European original high-quality AC power Inmoveable 4T Motorcycle Standard Electric Double Scissor Lift Table





Model

Rated load

Min. height

Max. height

Table size

Base size

Lifting time

Motor power

Net weight



kg

mm

mm

(L×W)mm

(L×W)mm

s

kw

kg

JK8671

1000

205

1000

1300×820

1240×640

20-25

1.1

160

JK8672

1000

205

1000

1600×1000

1240×640

20-25

1.1

186

JK8673

1000

240

1300

1700×850

1580×640

30-35

1.1

200

JK8674

1000

240

1300

1700×1000

1580×640

30-35

1.1

210

JK8675

1000

240

1300

2000×850

1580×640

30-35

1.1

212

JK8676

1000

240

1300

2000×1000

1580×640

30-35

1.1

223

JK8677

2000

230

1050

1300×850

1280×785

20-25

1.5

235

JK8678

2000

230

1050

1600×1000

1280×785

20-25

1.5

268

JK8679

2000

250

1300

1700×850

1600×785

25-35

2.2

289

JK8680

2000

250

1300

1700×1000

1600×785

25-35

2.2

300

JK8681

2000

250

1300

2000×850

1600×785

25-35

2.2

300

JK8682

2000

250

1300

2000×1000

1600×785

25-35

2.2





315

JK8683

4000

240

1100

1700×1200

1600×900

30-40

2.2

375

JK8684

4000

240

1100

2000×1200

1600×900

30-40

2.2

405

JK8685

4000

300

1400

2000×1000

2000×900

45-50

2.2

470

JK8686

4000

300

1400

2000×1200

2000×900

45-50

2.2

490

JK8687

4000

300

1400

2200×1000

2000×900

45-50

2.2

480

JK8688

4000

300

1400

2200×1200

2000×900

45-50

2.2

505

























Shenchuan (Shanghai) Heavy Industrial Machinery Co., Ltd. was established in May 2003 in Shanghai. Over the past 10 years, we have been always adhering to the idea of “all service to meet customers’ needs”, breaking through technology, manufacturing the finest products, improving service with our globalization vision.





We have developed a variety of international advanced products joint with world-renowned industrial equipment manufacturers, such as: ABB, ZF, BOSCH, CAT, TEREX, and a variety of sophisticated products with independent intellectual property patents together with well-known Chinese universities in the area of machinery, electronics, physical mechanics etc.





We will provide comprehensive and multidimensional supply chain service for global customers with our most optimized scheme, best quality products, most attentive service and most competitive price, to reduce the maximum supply chain cost for customers and increase the production .
