30hp,40hp 4 Wheel Drive Tractor With Front End Loader

30hp,40hp 4 Wheel Drive Tractor With Front End Loader thumbnail-1
30hp,40hp 4 Wheel Drive Tractor With Front End Loader thumbnail-2
30hp,40hp 4 Wheel Drive Tractor With Front End Loader thumbnail-3
30hp,40hp 4 Wheel Drive Tractor With Front End Loader thumbnail-4

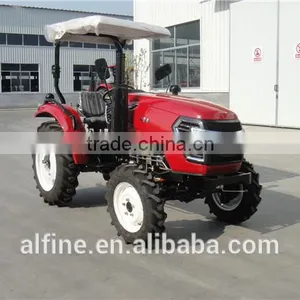

30hp,40hp 4 Wheel Drive Tractor With Front End Loader thumbnail-5

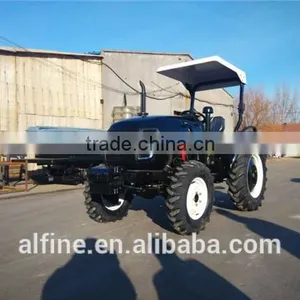

30hp,40hp 4 Wheel Drive Tractor With Front End Loader thumbnail-6
30hp,40hp 4 Wheel Drive Tractor With Front End Loader photo-1

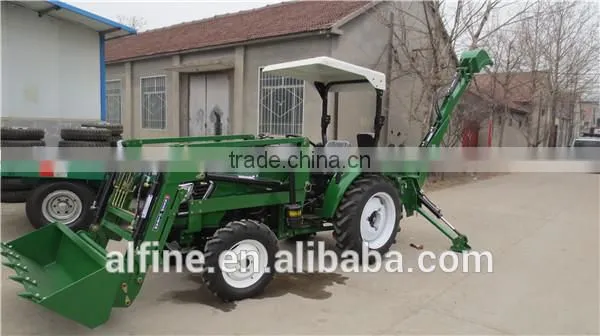

30hp,40hp 4 Wheel Drive Tractor With Front End Loader photo-2

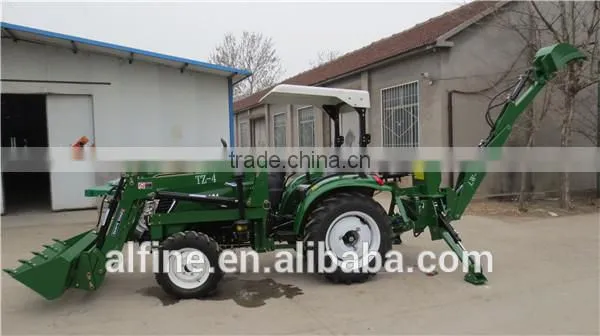

30hp,40hp 4 Wheel Drive Tractor With Front End Loader photo-3
30hp,40hp 4 Wheel Drive Tractor With Front End Loader photo-4

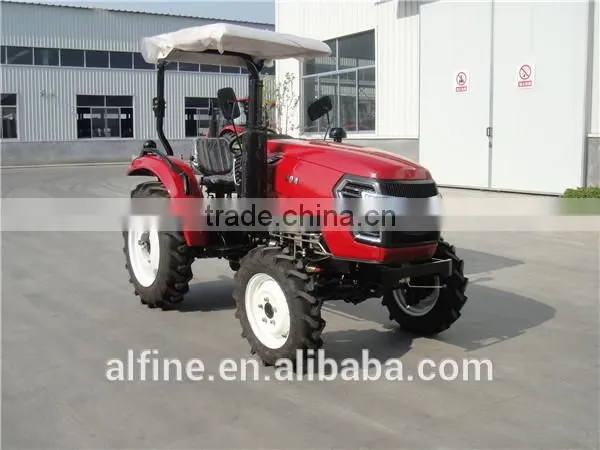

30hp,40hp 4 Wheel Drive Tractor With Front End Loader photo-5
30hp,40hp 4 Wheel Drive Tractor With Front End Loader photo-6
US$ 3,200 - 4,300 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Type:
Wheel Tractor
By wheel:
4WD
Contact Supplier Request Quote Chat Now
Qingdao Alfine Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Wheel Tractor
By wheel 4WD
Usage Farm Tractor
Drive Type Gear Drive
Power(W) 22.1kw/29.4kw
Certificate Other, ISO9001
Brand Name AFM
Model Number 304/404
Place of Origin Shandong, China
After-sales Service Provided Engineers available to service machinery overseas

Tractor specification

Tractor SPECIFICATION

Model

HW304

HW404

Drive type

4*4

4*4

Engine





Engine brand

LD

LD

Model

KM390BT

4L23BT

Type

3 cylinder,water-cooling, In-line, direct injection

4 cylinder,water-cooling, In-line, direct injection

Rated speed (r/min)

2300

2300

Engine power (hp)

30hp/22.1kw

40hp/29.4kw

Transmission

Clutch

Dry, single clutch

Dry, single clutch

PTO size

6 teeth φ35

6 teeth φ35

PTO Speed(rpm)

540/720

540/720

Gear shift

(4+1)*2

(4+1)*2

Hydraulic system

Hydraulic output valve

2-Way opitonal

2-Way opitonal

Three point linkage

Category of 3-point link

Category I

Category I

Lifting capacity(at point
 of 610mm)KN

>6.4

>7.4

Technical parameter

Dimension(L*W*H) mm

2900*1500*1900

3000*1500*1900

Min.Net weight

1350kg

1450kg

Wheel base(mm)

1700

1800

Front wheel tread(mm)

1200

1200

Rear wheel tread(mm)

1200

1200

The Min. clearance(mm)

360

360

Front tyre

6.0-16

6.0-16

Rear tyre

9.5-24

9.5-24

Steering type

Hydraulic Steering

Hydraulic Steering

 30hp,40hp 4 wheel drive tractor with front end loader30hp,40hp 4 wheel drive tractor with front end loader30hp,40hp 4 wheel drive tractor with front end loader30hp,40hp 4 wheel drive tractor with front end loader

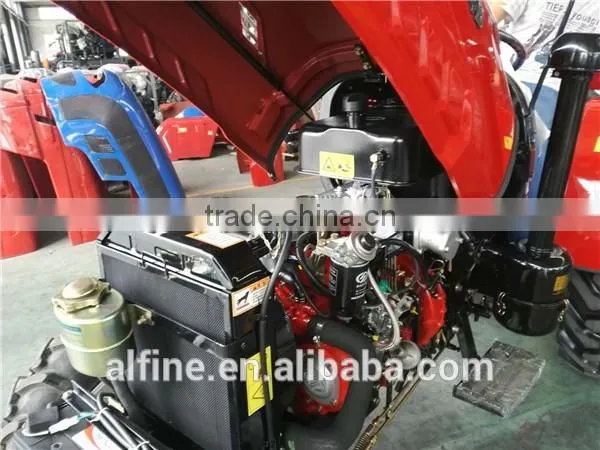

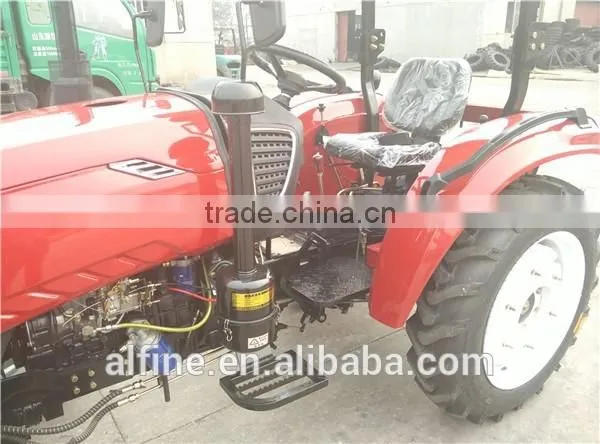

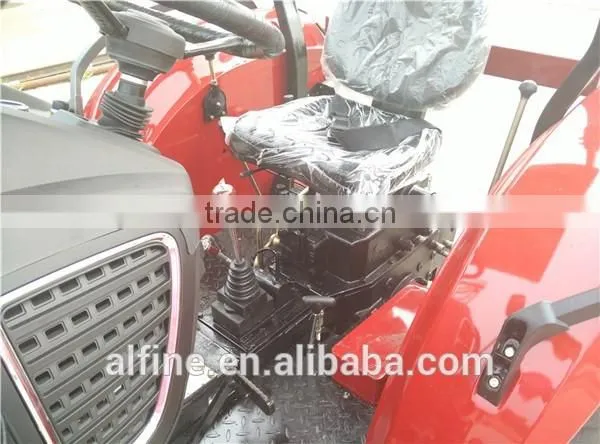

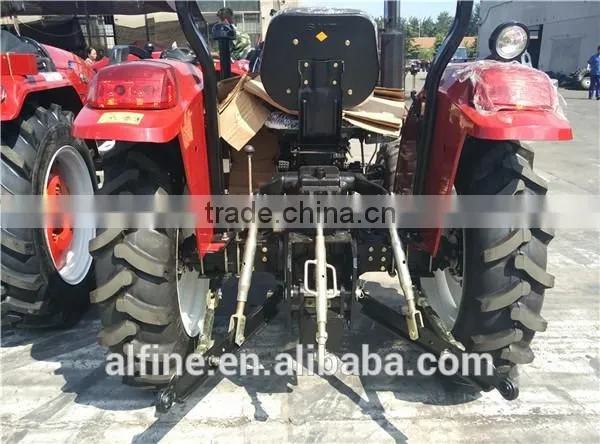

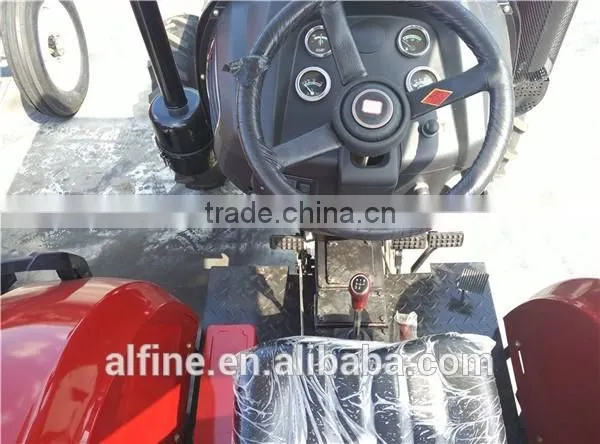

 Tractor details picture

30hp,40hp 4 wheel drive tractor with front end loader30hp,40hp 4 wheel drive tractor with front end loader30hp,40hp 4 wheel drive tractor with front end loader30hp,40hp 4 wheel drive tractor with front end loader30hp,40hp 4 wheel drive tractor with front end loader

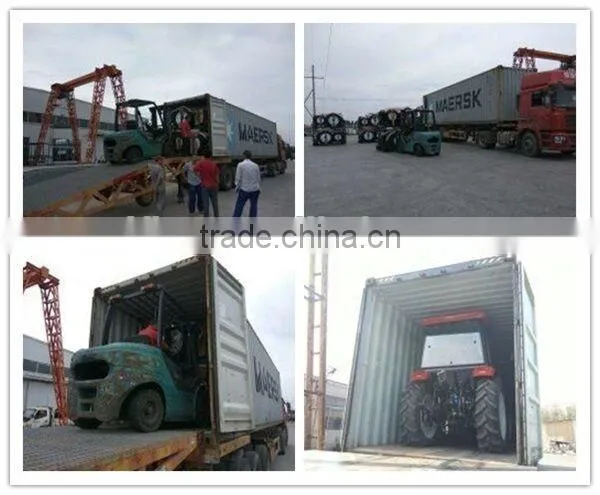

Packaging & Shipping

 Tractor packaging and shipping

30hp,40hp 4 wheel drive tractor with front end loader
