China Cheap CE Approved High Quality Kubota Backhoe

FOB Price

US$ 1,800 - 3,000 / Piece

1 Piece(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Application	Digging
Place of Origin	Shandong, China	Brand Name	AFM
Model Number	LW-8	Dimension(LWH)	4500x1600x2300mm
Weight	800kg	Features	Tractor Towable Backhoe
Certification	CE Certificate	Warranty	12 Months
After-sales Service Provided	Overseas third-party support available

Features of kubota backhoe

1. Matched any tractor .

2.Powered by PTO driven with hydraulic pump.

3.3-point hitched backhoe,steady structure

4.Oil tank ,oil show, gas-permeable cap

5.claw on boom, handed control valve

6.luxury spring seat and safety belt.

7.Optional buckets

8.Work independently, only need vehicle to tow to the working destination

9.Can be used for garden digging and construction digging

Specification of kubota backhoe

Model	LW—6	LW—7	LW—8	LW—9	LW—10	LW—12
Fitting power	16-35 hp	25-75 hp	45-85hp	50-100hp	70-125hp	80-150hp
Max. digging depth	1850 mm	2150 mm	2640 mm	2900 mm	3000 mm	3500 mm
Digging depth Flat bottom	1600 mm	2000 mm	2500 mm	2760 mm	2800 mm	3350 mm
Max. digging height	2500 mm	3400 mm	3510 mm	3900 mm	4000 mm	4300
Loading heigh	1400 mm	1760 mm	2000 mm	2362 mm	2337 mm	2700
Unloading heigh	1733 mm	1878 mm	1952 mm	2413 mm	2540 mm	2770
Max. digging radius	2800 mm	3360 mm	3930 mm	3977 mm	3886 mm	4300
Max. digging load	1300 kg	1200 kg	1600 kg	1900 kg	2600 kg	2700kg
Bucket rofation (°)	160°	160°	160°	150°	150°	172°
Swing angle (°)	140°	140°	140°	160°	160°	180°
Valve standard press	16 Mpa	16 Mpa	16 Mpa	16 Mpa	16 Mpa	16 Mpa
Bucket width	300 mm	400 mm	450 mm	480 mm	500 mm	550 mm
Bucket volume	0.03 m3	0.036 m3	0.048 m3	0.054 m3	0.06 m3	0.07 m3
Weight	580 kg	670 kg	760 kg	820 kg	870 kg	960 kg

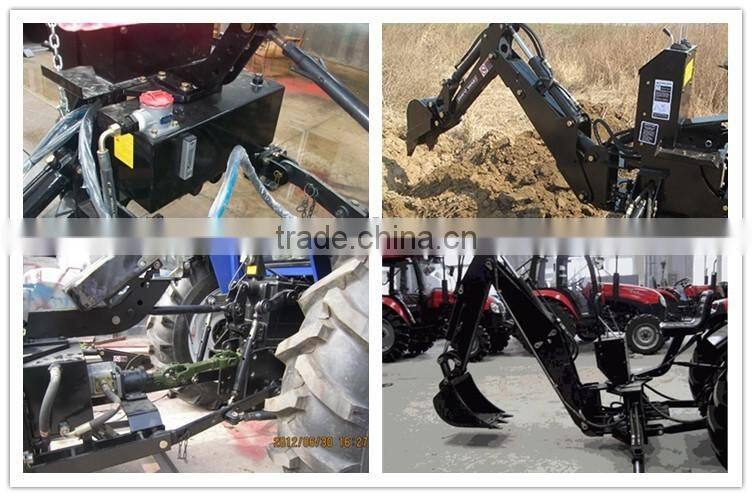

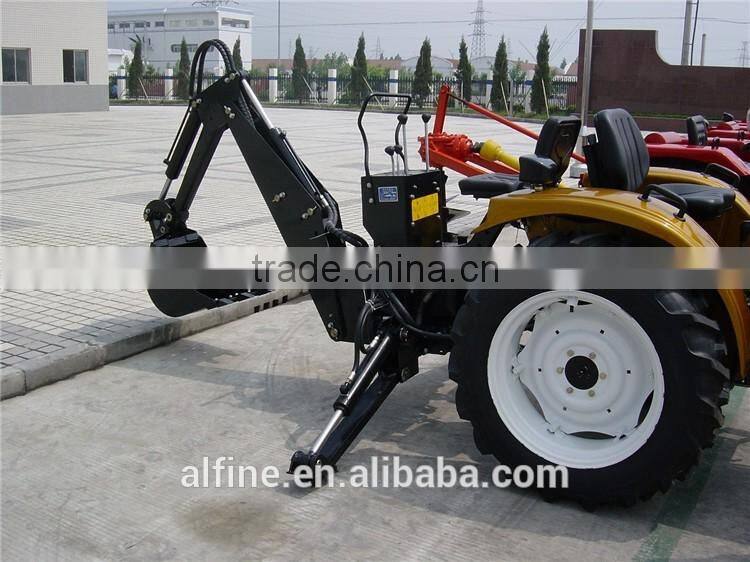

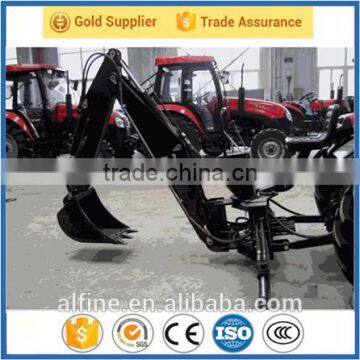

Details images of kubota backhoe
