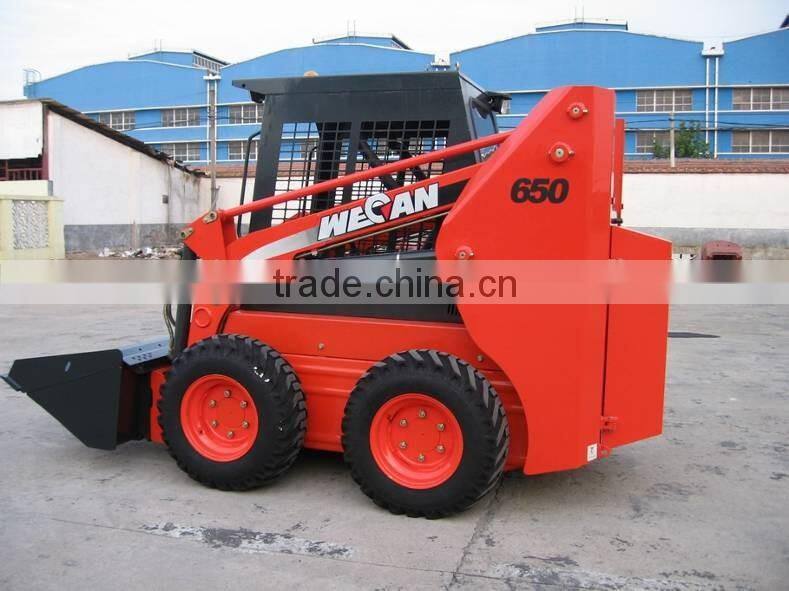

GM650 Skid Steer Loader with 0.47m3 Bucket Capacity
1)Rated load:2900kg
2)Bucket capacity: 0.47m3
3)Rated power: 50HP
The mechanical balance keeps the bucket in level when lifting. Better stability. CE certificate is valid.
SPECIFICATION FOR GM650A | ||||
| Model | GM650A | |||
| Chinese Engine
|
Rated Power (Kw) | 36.8 Kw(50hp) | ||
| Rotating Speed (rpm) | 2650 | |||
| Noise | In Cab (dB) | ≤92 | ||
| Out of Cab (dB) | ≤106 | |||
| Hydraulic System | Cycle Time (s) | Raise | Dump | Lower |
| 3.5-4.5 | 2-2.5 | 3-3.5 | ||
| Performance | Operating Load (Kg) | 650 | ||
| Bucket Capacity (m3) | 0.47 | |||
| Max lifting force (Kg) | 1060 | |||
| Speed (Km/h) | 0-11.2 | |||
| Operating weight with standard bucket(Kg) | 2900 | |||
| Tyre | 10-16.5 | |||
DIMENSIONS | |||
| Model | GM650A | Model | GM650A |
| Max height(mm) | 3970 | overall length to outside of tyre(mm) | 1760 |
| Dump height(mm) | 2100 | Ground clearance(mm) | 210 |
| Height to top of cab (mm) | 2090 | Clearance circuit front(mm) | 2090 |
| overall length with bucket(mm) | 3525 | Dump angle at max height(°) | 45° |
| Dump distance(mm) | 750 | Max attachment rollback when on groud(°) | 31° |
| overall length without bucket(mm) | 2700 | Angle of departure(°) | 23° |
| Bucket width(mm) | 1720 | ||
Hysoon Crawler Skid Steer Loader Series HY380/HY280
Operating weight: 840-1068kg
oprating load: 200kg
Item |
HY380 |
||||||
Engine |
Rated Power(KW) |
15.435KW(21HP) |
|||||
Rotating speed(rpm) |
3600 |
||||||
Noise (Db) |
≤95 |
||||||
Hydraulic System |
Pressure (Mpa) |
17 |
|||||
Working Time (s) |
Raise |
dump |
Lower |
||||
4.27 |
1.34 |
3.31 |
|||||
Technical Parameter |
The Metric System |
The English System |
|||||
Operating Load |
200 Kg |
441 Lb |
|||||
Bucket Capacity |
0.15 m3 |
5.33 ft3 |
|||||
Max Lifting Force |
375 Kg |
827 Lb |
|||||
Travel Speed |
0-5.5 Km/h |
0-3.4 mlie/h |
|||||
Operating Weight |
With Solid tyre |
940 Kg |
2072 Lb |
||||
With normal tyre |
886 Kg |
1953 Lb |
|||||
With turf tyre |
850 Kg |
1874 Lb |
|||||
With Rubber tyre |
1068kg |
2355 Lb |
|||||
Tyre Model |
Solid tyre |
16×6-8 |
|||||
Normal tyre |
5.00-8 |
||||||
Turf tyre |
KT-302 18*9.5-8 6P/TL |
||||||
Chevron engineering tyre |
18*6.5-8 |
||||||
Rim |
Solid tyre |
4.33R-8 |
|||||
Normal tyre |
3.50D |
||||||
Turf tyre |
8*6.5 |
||||||
