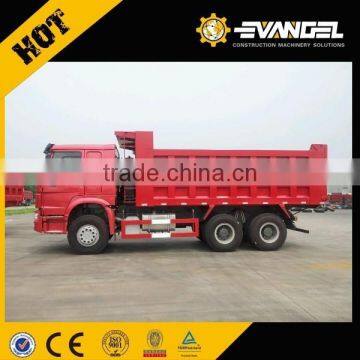

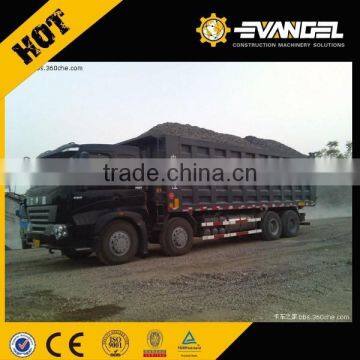

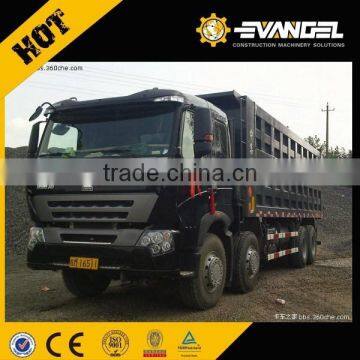

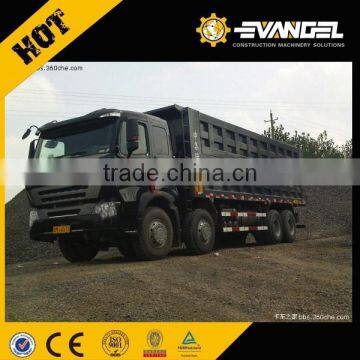

Howo 10ton Mini Articulated Dump Truck (ZZ3257N2948)
- 10000 Unit / Units per Month
- shanghai
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Drive Wheel: | 8x4 | Capacity (Load): | 21 - 30t | Horsepower: | 251 - 350hp |
Condition: | New | Transmission Type: | Automatic | Emission Standard: | Euro 2 |
Fuel Type: | Diesel | Engine Capacity: | 4 - 6L | Gross Vehicle Weight: | 25000 |
Place of Origin: | Shandong, China | Brand Name: | howo | Model Number: | ZZ3257N2948 |
Dimensions (L x W x H) (mm): | 7356*2496*3170mm |
Product Description
Howo 10ton Mini Articulated Dump Truck (ZZ3257N2948)
1.Capacity: 25000kg
2.Engine:Weichai 336HP
3.Body dimension:4800*2300*1500mm
4.Bottom 8 Side 6
5.RHD/LHD Cabin with A/C
We can provide 10 tons-20tons-30 tons,etc road dump truck,the body dimension could be specially designed for various demands.
For dump truck sale good price please email to martin at
Dump truck sell factory skype ID is sunchinali
Mobile:+86-18202126581
Cargo body dimension:(mm) | 4800*2300*1500, Bottom8,Side 6, Strengthened T type (Carbo body can be customized) | ||
Dimension(Lx W xH)(unloaded) | 7356×2496×3170 | ||
Approaching angle/Departure angle(°) | 19/23 | ||
Overhang(front/rear) (mm) | 1500/1870 | ||
Wheel base (mm) | 2900+1350 | ||
Max speed(km/h) | 75 | ||
Curb weight(kg) | 12010 | ||
Engine (Steyr technology, made in China) | Model | WD615.69,water-cooled,four strokes,6 cylinders in line with water cooling,turbocharged and intercooling, directly injection | |
Fuel type | Diesel | ||
Power, max(kw/rpm) | 247/2200 | ||
Emission | EURO Ⅱ (Eu-III available) | ||
Fuel tanker capacity (L) | 300 | ||
Transmission | Model | HW15710,10 forward&2 reverse | |
Brake system
| Service brake | Dual circuit compressed air brake | |
Parking brake | spring energy, compressed air operating on rear wheels | ||
Steering system
| Model | ZF8098 | |
Front axle | HF9 | ||
Rear axle | HC16 | ||
Tyre | 12.00R20 | ||
Electrical system
| Battery | 2X12V/165Ah | |
Alternator | 28V-1500kw | ||
Starter | 7.5Kw/24V | ||
Cab
| HOWO70 cab(bed,A/C),all-steel forward control,55º hydraulically tillable to the front,2- arm windscreen wiper system with three speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers. |
