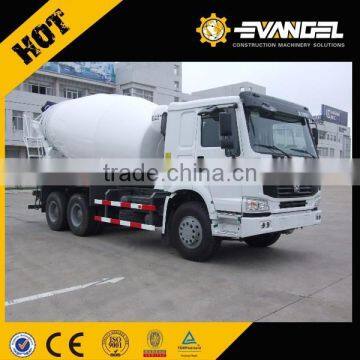

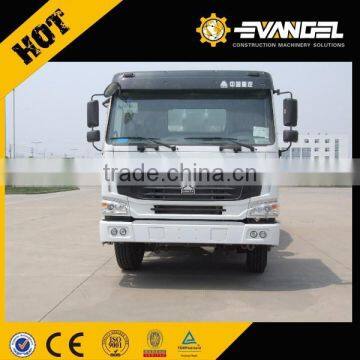

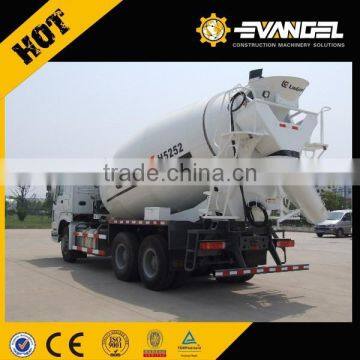

8M3 and 6*4 Concrete Pumping Machine and Concrete Mixer for sale

Carriage volume:

8m³

Dimension(Lx W xH)(unloaded)(mm)

9040×2496×3850

Approaching angle/Departure angle(°)

19/23

Overhang(front/rear) (mm)

1500/1870

Wheel base (mm)

3800+1350

Max speed(km/h)(km/h)

75

Curb weight(kg)

13220

Engine

(Steyr technology, made in China)

Model

WD615.69,water-cooled,four strokes,6 cylinders in line with water cooling,turbocharged and intercooling, directly injection

Fuel type

Diesel

Power, max(kw/rpm)

247/2200

Emission

EURO Ⅱ

Fuel tanker capacity (L)

300

Transmission

Model

HW15710,10 forward&2 reverse

Brake system

Service brake

Dual circuit compressed air brake

Steering system

Model

ZF8098

Front axle

HF9

Rear axle

HC16

Tyre

12.00R20

Electrical system

Battery

2X12V/165Ah

Alternator

28V-1500kw

Starter

7.5Kw/24V

Cab

HOWO76 cab(Single bed,A/C),all-steel forward control,55ºhydraulically tillable to the front,2- arm windscreen wiper system with three speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers.
