BEIBEN Truck 28 Tons of Oman Tipper Truck

Name: BEIBEN Truck 28 Tons of Oman Tipper Truck
Brand: Beiben
SKU: 140723732
Availability: InStock

Evangel Industrial (Shanghai) Co., Ltd.

US$ 40,000 - 45,000 MOQ: 1 Unit

Key Specifications

Drive Wheel:

6x4

Capacity (Load):

31 - 40t

Horsepower:

351 - 450hp

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai Port or Any port of China

Delivery Detail:

Delivery time depends on order quantity.

Drive Wheel 6x4

Capacity (Load) 31 - 40t

Horsepower 351 - 450hp

Condition New

Transmission Type Automatic

Emission Standard Euro 2

Fuel Type Diesel

Gross Vehicle Weight 40

Place of Origin Shandong, China

Brand Name Beiben

Model Number ND3250

Dimensions (L x W x H) (mm) 8145*2496*3450MM

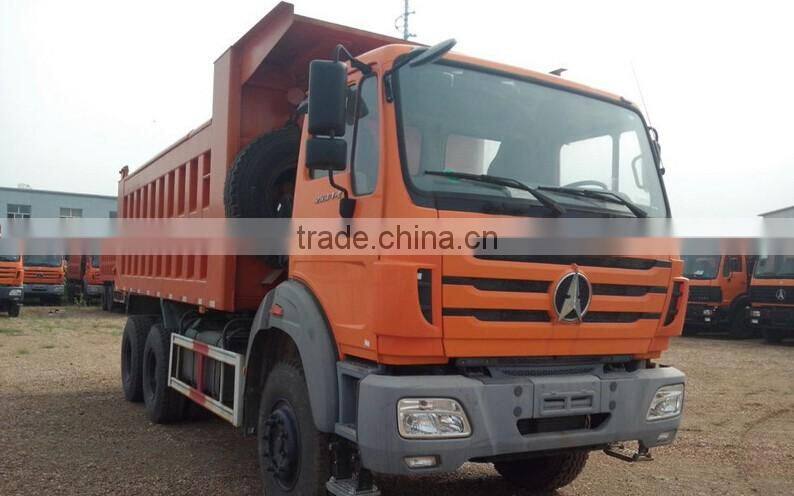

BEIBEN truck 28 tons of oman tipper truck

· Descriptions

The main Brand Partner: Dongfeng, SINO HOWO, HOWO, Beiben, Faw, Foton, Forland, Hyundai, Hino, Iveco, JAC, JMC, Shacman, Honyan, Genlyon

Driving Type: 4*2, 6*4, 8*4, 4*4 , 6*6 , 4wd , off-road , 10 wheel , 12 wheeler , 18 wheel

Capacity: 3T, 5T,10T, 15T, 20T, 25T, 30T, 35T, 40T, 50T, 60T, 80T, 100T

Steering Wheel: Left Hand Drive and Right Hand Drive

· Form of spec:

Drive type		6x4
Weight	Kerb mass (kg)	12000
Weight	Total mass (kg)	25000
Performance	Max. speed (km/h)	77
Performance	Appraoch/departure angle (°)	26/43
Engine	Brand	WEI CHAI Steyr tech.
	Model	WP10.290NE31
	Power (kw/HP)	290
	Displacement (L)	9.726
	Emission standard	Euro 3
Transmission	Brand	FAST (FULLER tech.)
	Model	9JS150A
	Control type	Manual
	Gear shift	9-forward and 1 reverse speeds
Clutch	Type	Spring plate, diaphragm spring
	Diameter (mm)	Φ430
	Action	Mechanical type, hydraulic and pneumatic operation
Brakes	Type	Drum
	Service brake	With dual-circuit compressed air brake
	Park brake	Power spring brake acting on rear wheel
	Auxiliary brake	WEVB
	Option	ABS
Steering	Type	Integral circuiting ball power steering
Steering	Option	ZF8098
Chassis	Type	Ladder structure with parallel straight
